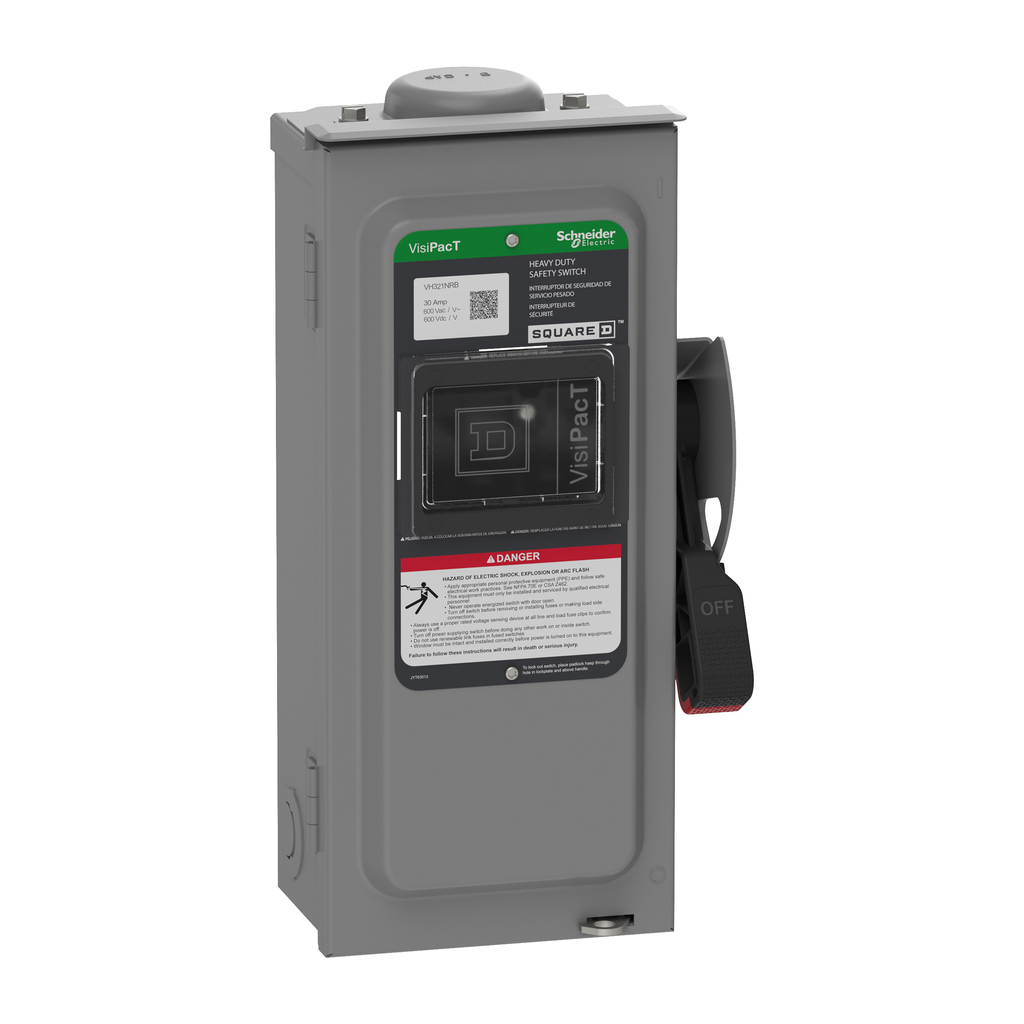

Square D VH321NRB Safety Switch, Heavy Duty, Fused, Viewing Window, NEMA 3R, 240V, 30A, 3 Pole, Neutral Installed

Product Description

The Square D VH321NRB Safety Switch by Schneider Electric is designed for safety and reliability in various applications. This heavy-duty, fused safety switch is equipped with a viewing window, allowing for easy visual inspection of the device.

• Rated for 30 Amperes at 240 Volts AC
• Type 3R enclosure for outdoor applications
• Factory-installed viewing window for easy monitoring

Product Highlights

This device meets rigorous industry standards, making it suitable for both commercial and industrial use.

Product Information

Standard Information

• Brand: Square D
• MPN: VH321NRB

Technical Specifications

• Catalog Number: VH321NRB
• Manufacturer: Schneider Electric
• Line Rated Current: 30 A
• Voltage Rating: 240 VAC, 250 VDC
• Short Circuit Current Rating: 10 kA
• Number of Poles: 3 Pole
• Fuse Types Accepted: H, K, R, or J (field-modifiable)
• Mounting Type: Surface
• Dimensions: 5.16 x 6.62 x 14.843 inches
• Weight: 4.33 kg
