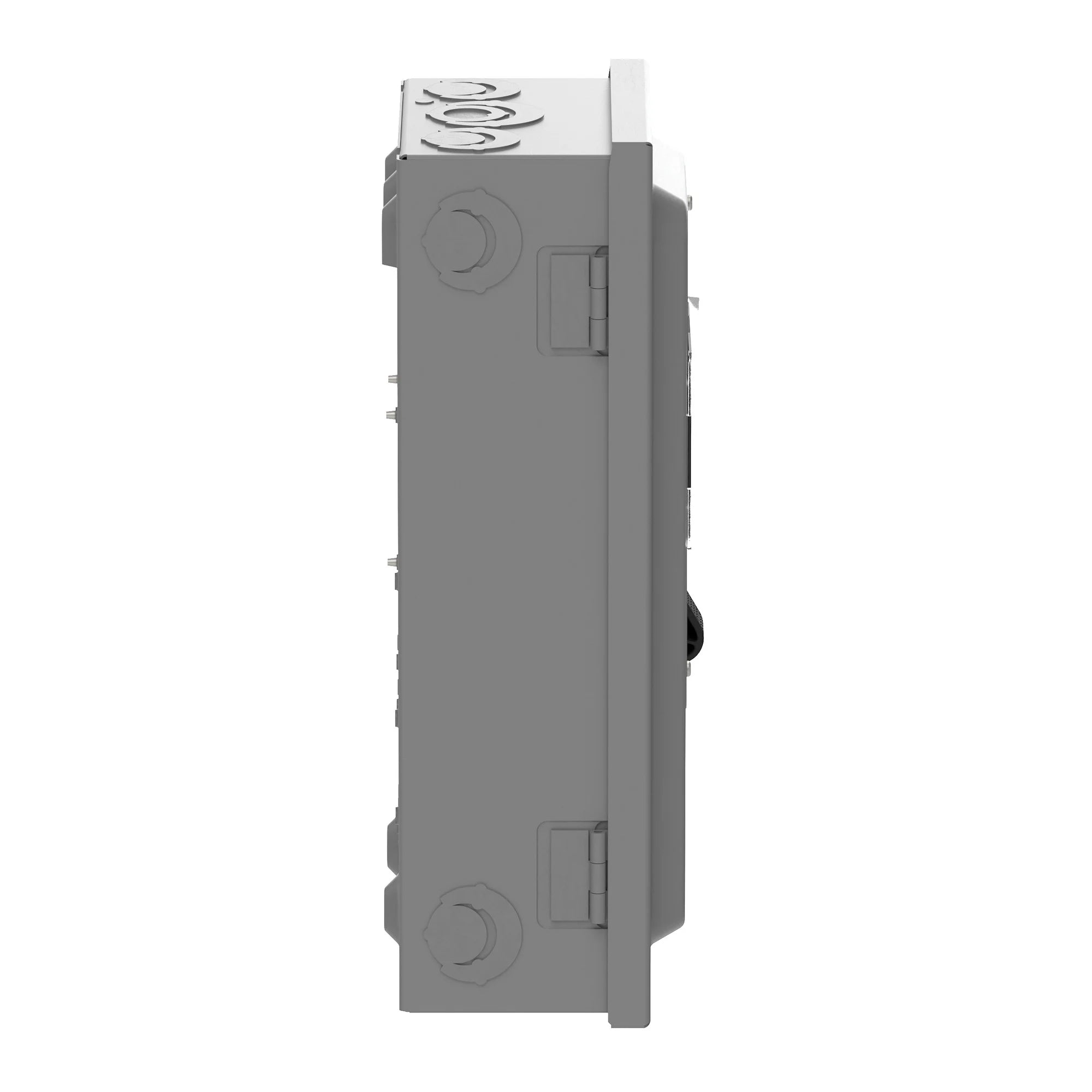

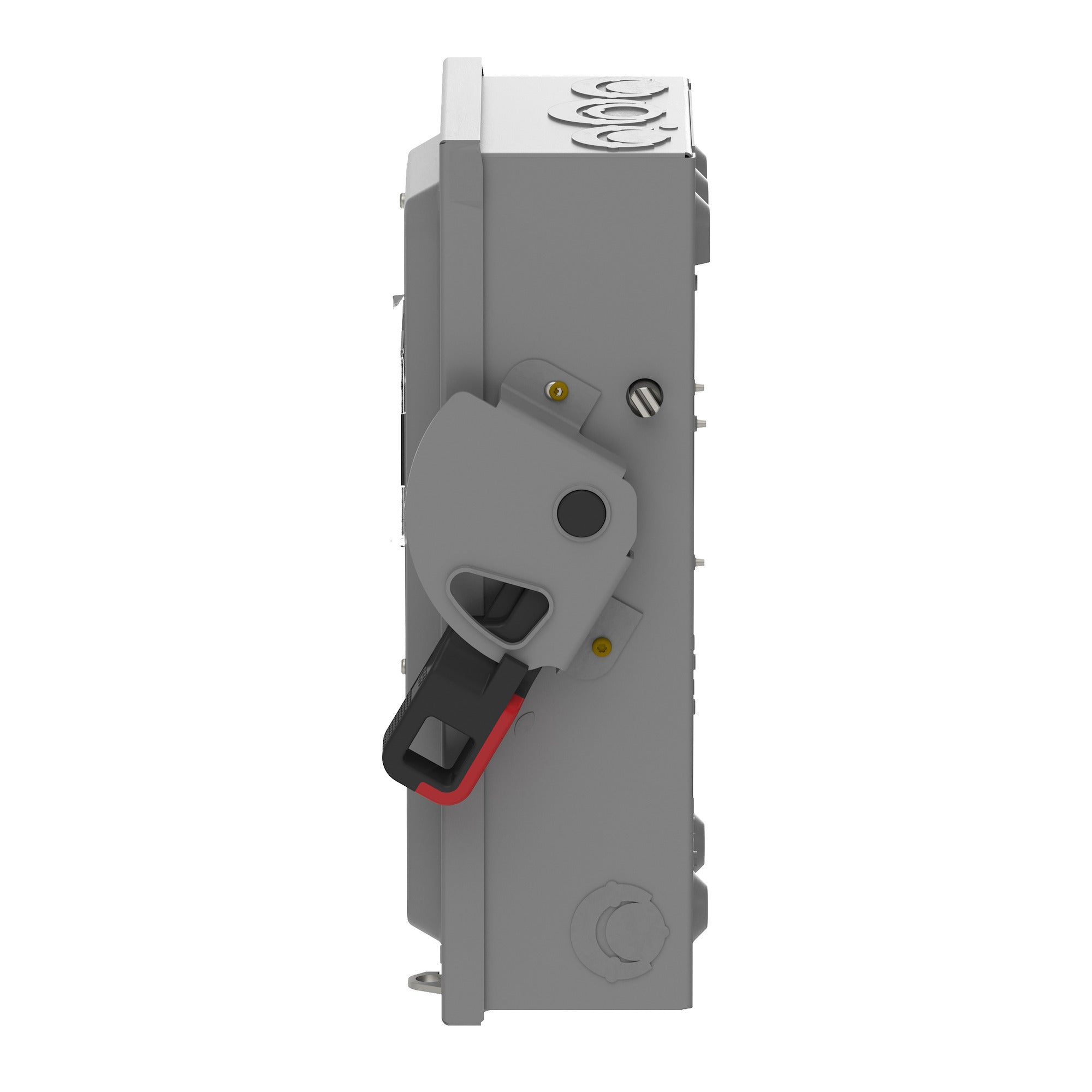

Square D VH321N Safety Switch Heavy Duty 240V 30A 3 Pole Neutral Installed

Product Description

The Square D VH321N Safety Switch by Schneider Electric is designed for heavy-duty applications. This safety switch features a fused disconnect that operates effectively in commercial and industrial environments. It is rated for thirty amps at two hundred forty volts AC and two hundred fifty volts DC. The switch has a three-pole arrangement with a neutral installed and a quick-make, quick-break mechanism for enhanced safety.

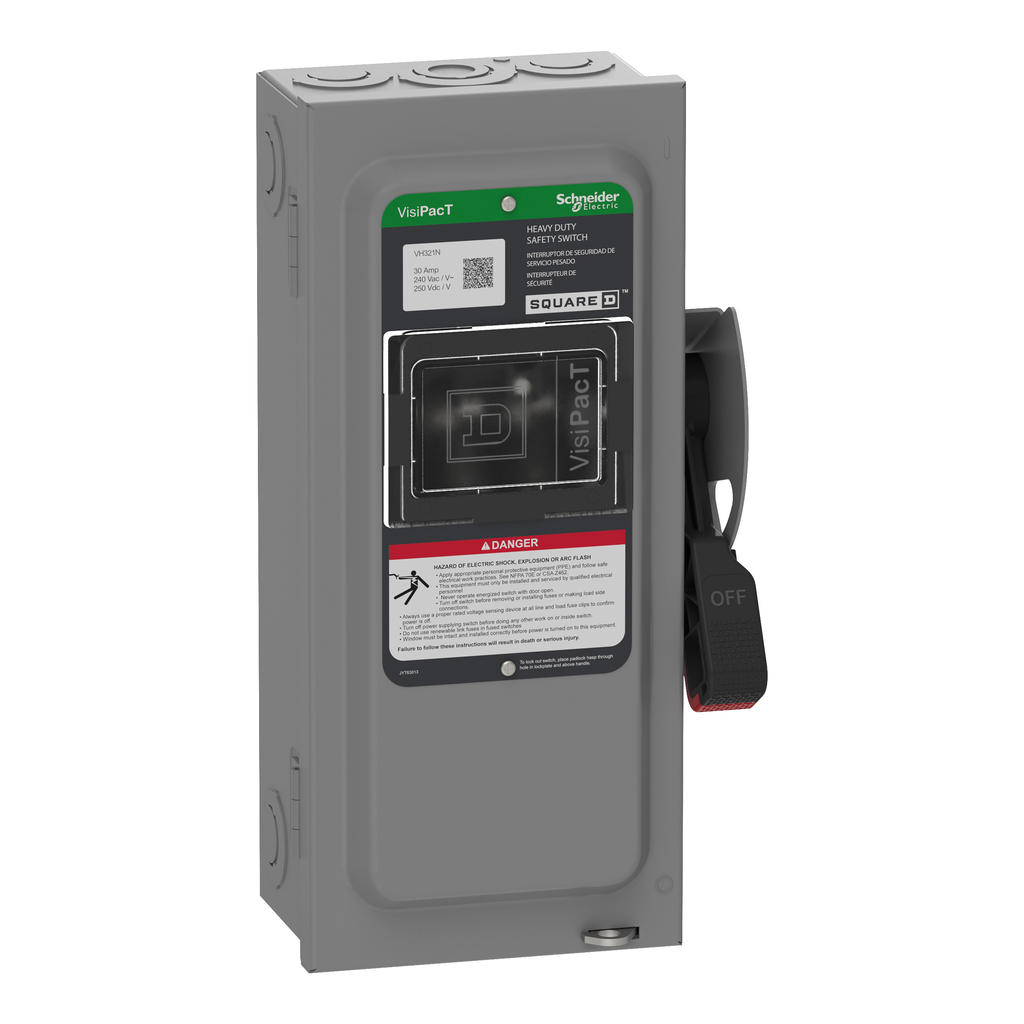

• Type 1 steel enclosure with a viewing window
• Short circuit rating of either ten kA or two hundred kA depending on fuse type
• Accepts H, K, R fuse types; can be modified for J fuses

Product Highlights

This device complies with UL98 and NEMA KS1 standards, ensuring high reliability. The safety switch also allows for surface mounting and includes a factory-installed neutral. Grounding kits are available for standard lugs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH321N
• Line Rated Current: 30 A
• Short Circuit Current Rating: 10 kA
• Number of Poles: 3 Pole
• Depth: 5.11 inches
• Width: 6.36 inches
• Height: 14.57 inches
• Net Weight: 4 kg
• RoHS Compliant: Yes
