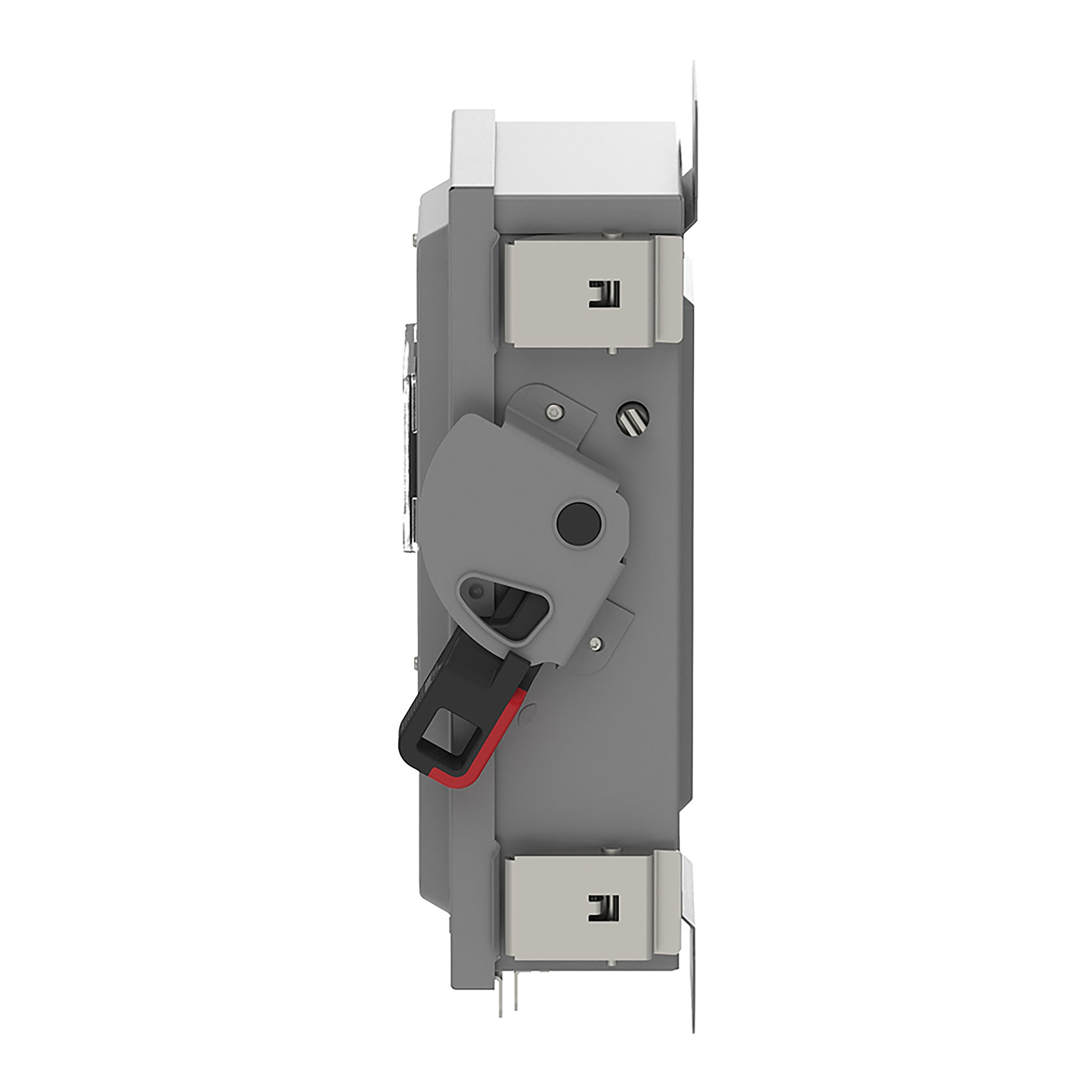

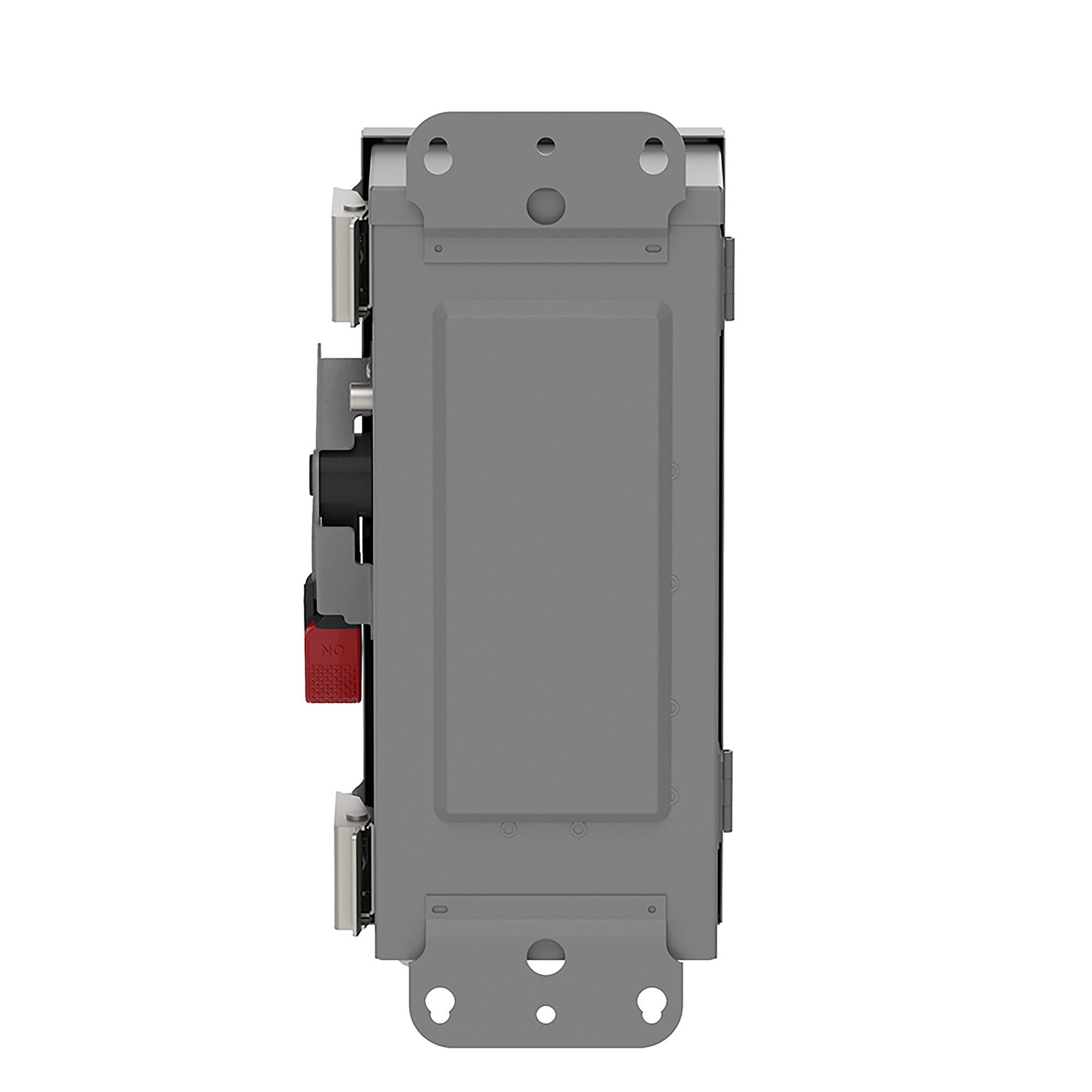

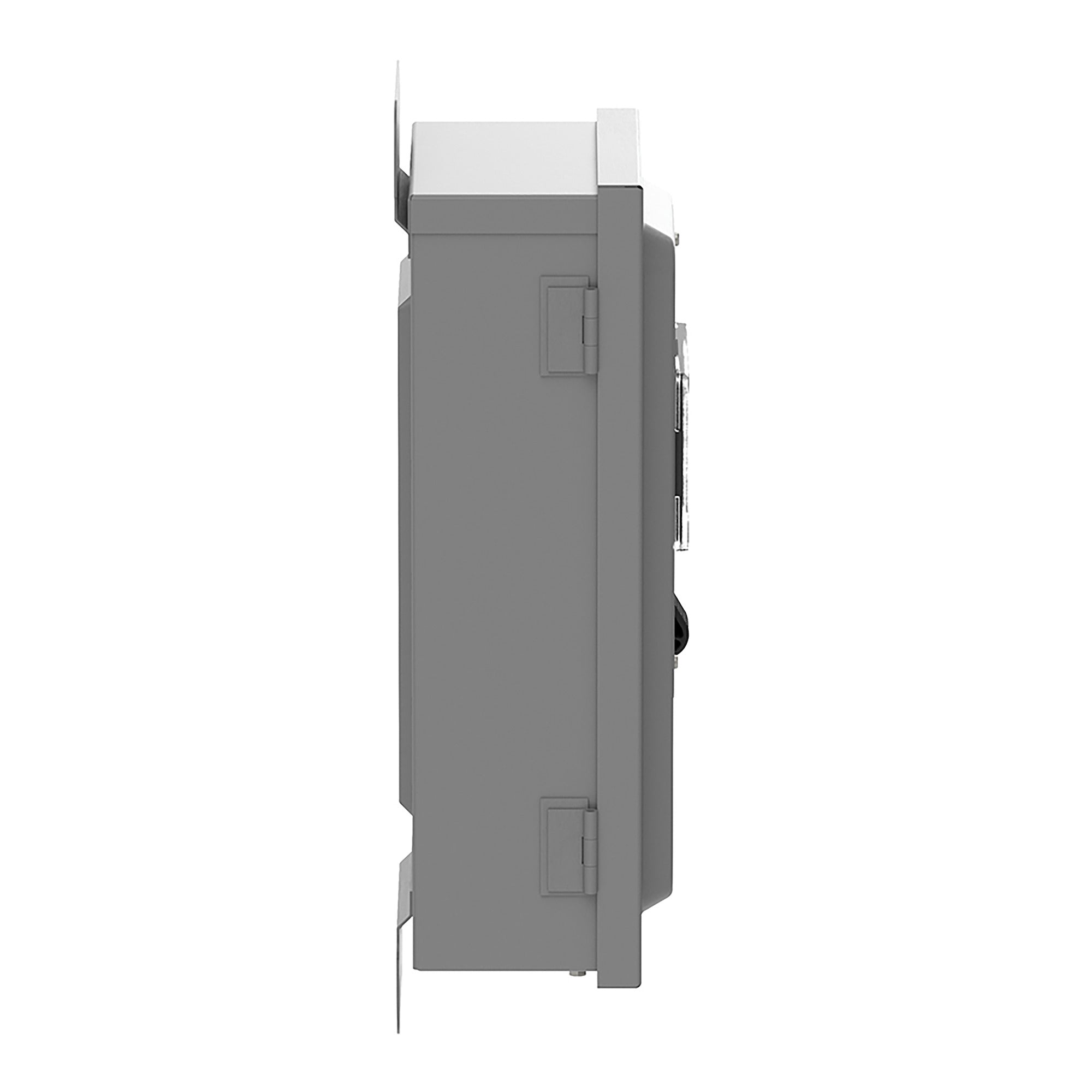

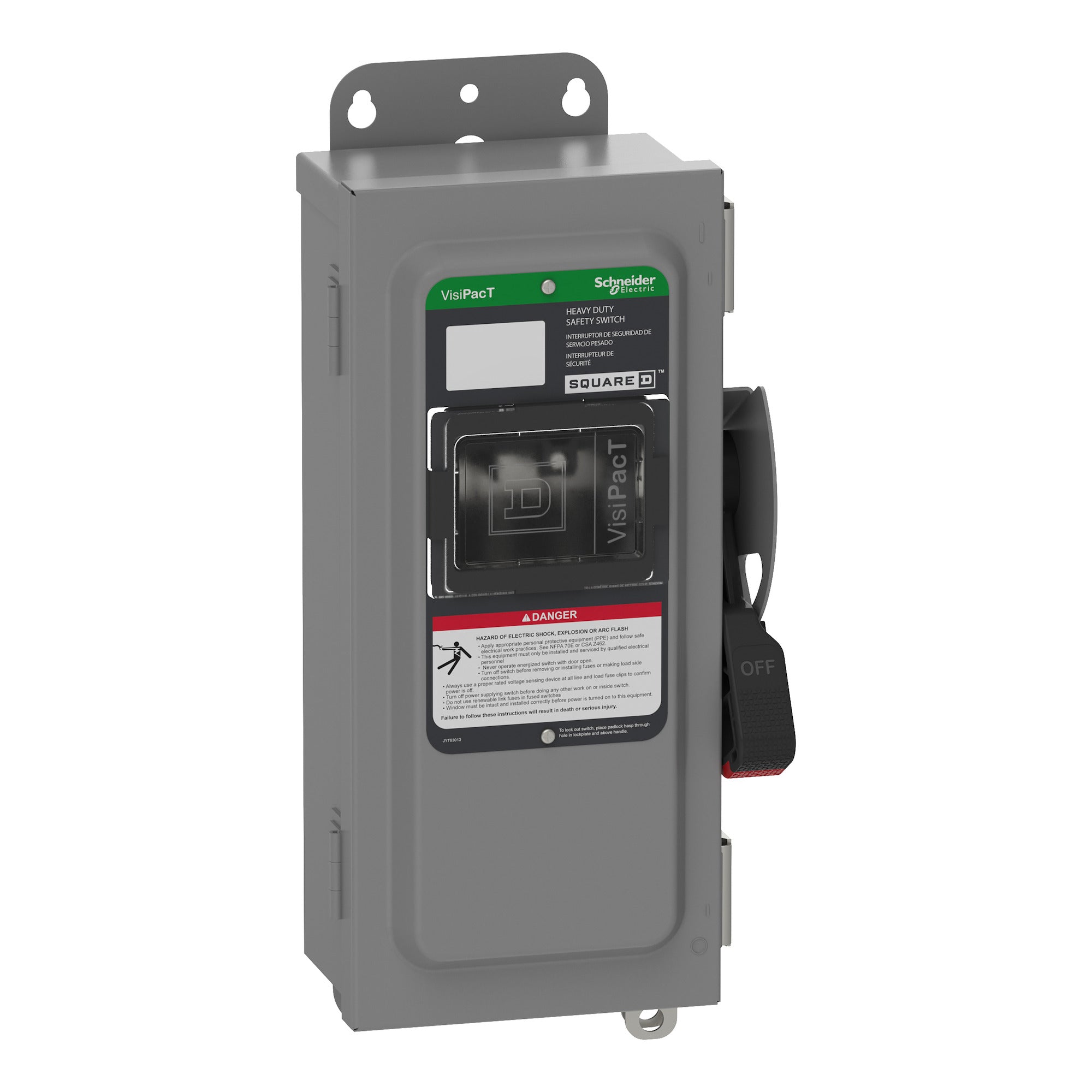

Square D VH321AWKGL Safety Switch Heavy Duty Fused Viewing Window NEMA 12 240V 30A 3 Pole Ground Lugs

Product Description

Square D by Schneider Electric introduces the VH321AWKGL heavy duty safety switch. This switch is built for reliability and strength, ideal for commercial and industrial applications.

• Designed for 30A and 240V AC or 250V DC.
• Features a viewing window and accepts various fuse types.
• Includes equipment ground lugs for secure installation.

Product Highlights

The VH321AWKGL safety switch is engineered to exceed standard durability, making it suitable for tough environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH321AWKGL
• Voltage Rating: 240V AC, 250V DC
• Rated Current: 30A
• Short Circuit Rating: 10kA or 200kA
• Fuse Types: H, K, R (field modifiable for J fuses)
• Enclosure Type: Type 12, galvannealed steel
• Wire Range: AWG 12 to AWG 6 aluminum and AWG 14 to AWG 6 copper
• Country of Origin: United States
