Product Description

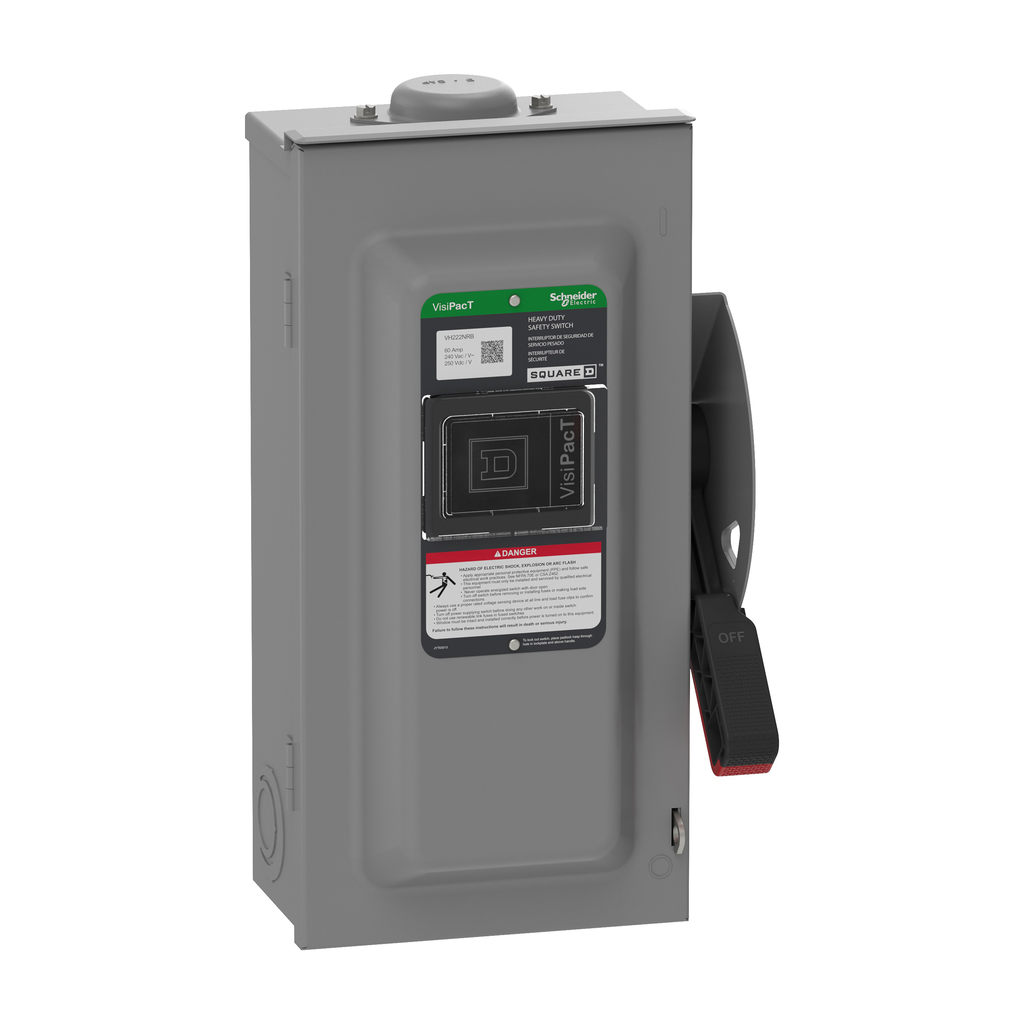

Square D VH222NRB Safety Switch provides reliable performance for commercial and industrial applications. This two-blade fusible switch is designed for high durability and can withstand tough conditions. It is rated at sixty amps with voltages of two hundred forty VAC and two hundred fifty VDC. The device is equipped with features for quick operation and safety, including a dual cover interlock and color-coded indicator handle.
- Rated for 60A at 240VAC and 250VDC
- Type 3R rated with a galvannealed steel enclosure
- Includes factory-installed viewing window
Product Highlights
This heavy-duty safety switch is ideal for applications that require high durability and safety standards.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
MPN: VH222NRB
-
Line Rated Current: 60A
-
Short Circuit Current: 10kA
-
Fuse Types: H, K, R, or J
-
Mounting Type: Surface
-
Dimensions: 5.16 inches depth, 6.62 inches width, 14.843 inches height
-
Wire Range: AWG 12 to AWG 3 aluminum, AWG 14 to AWG 3 copper
-
Certifications: UL Listed, NEMA KS1
