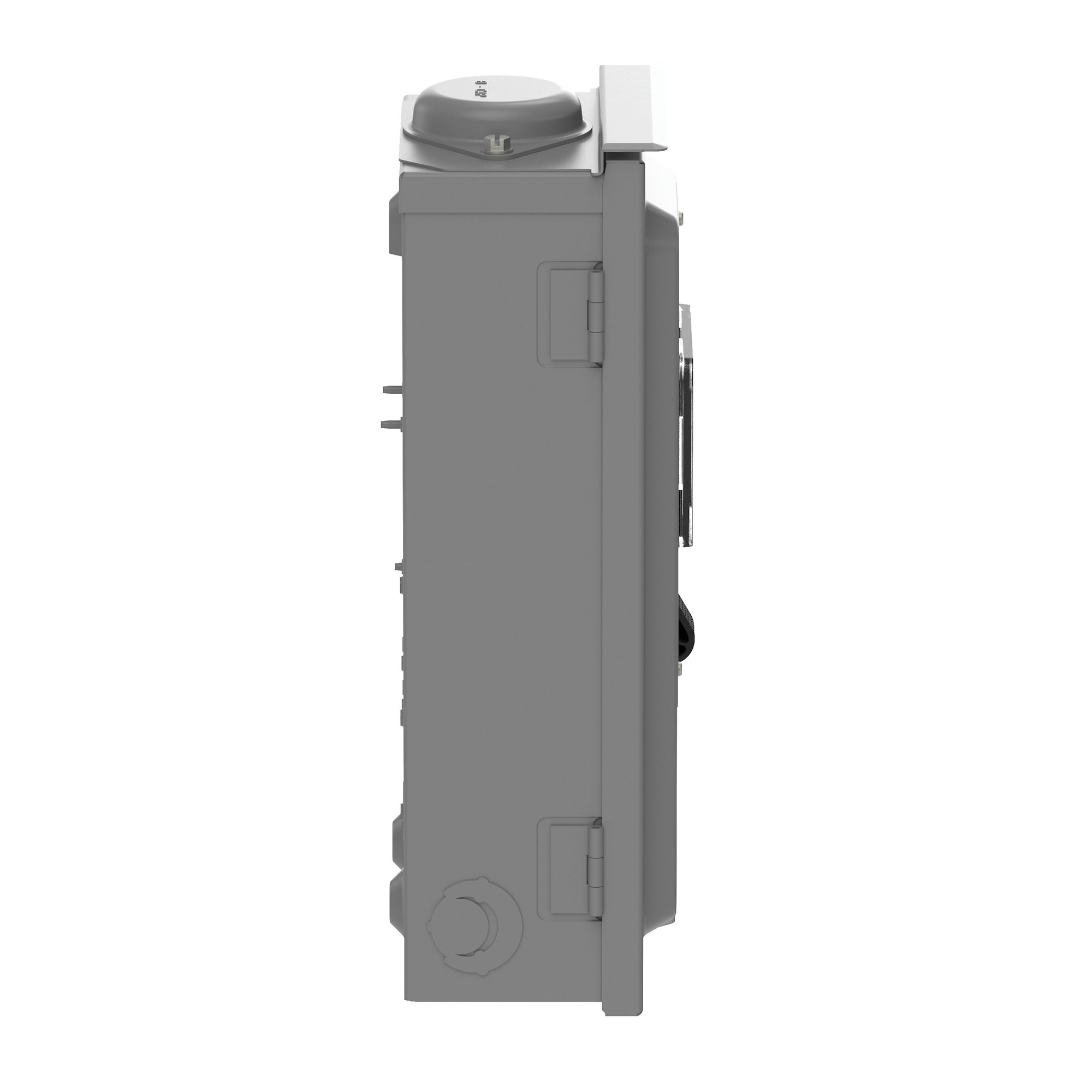

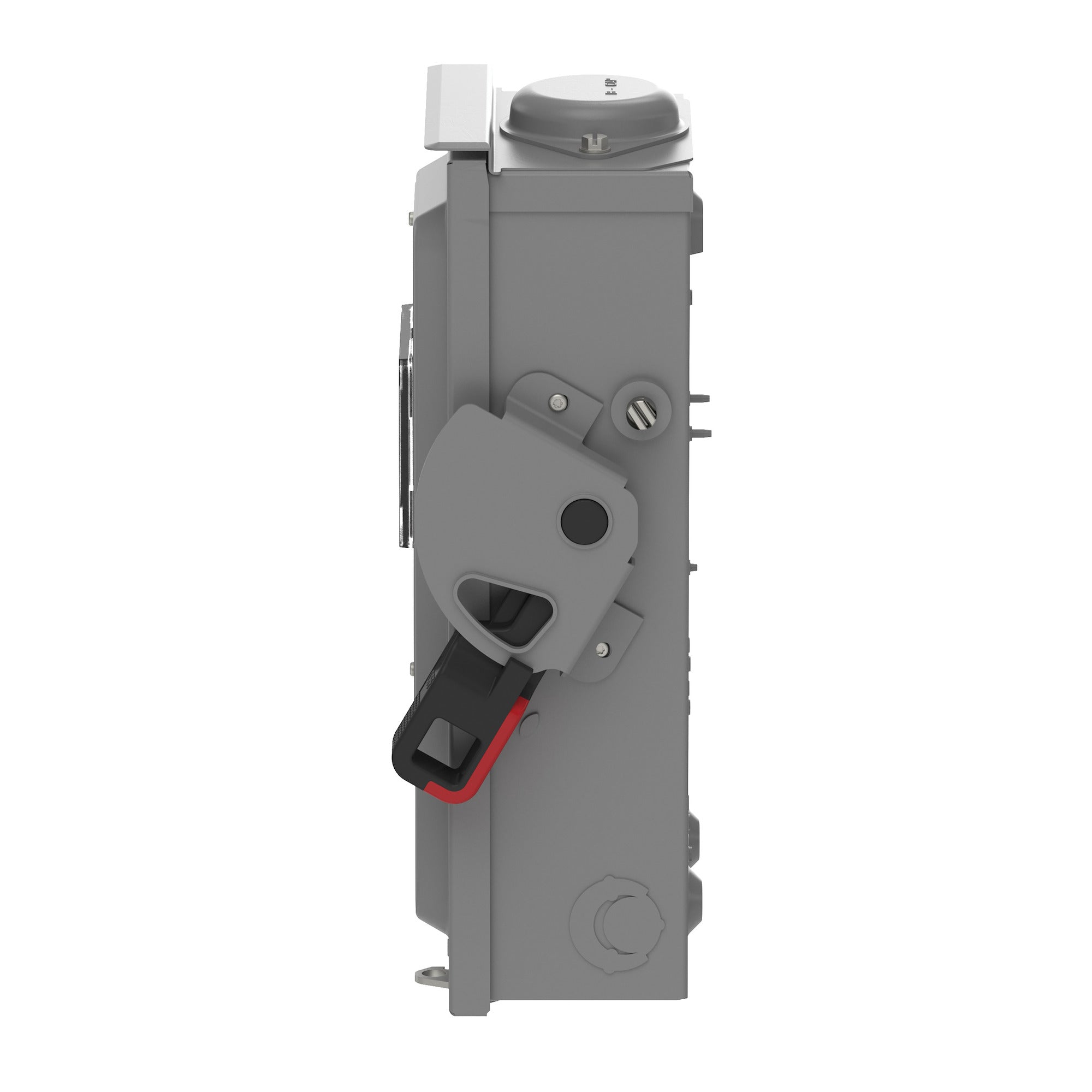

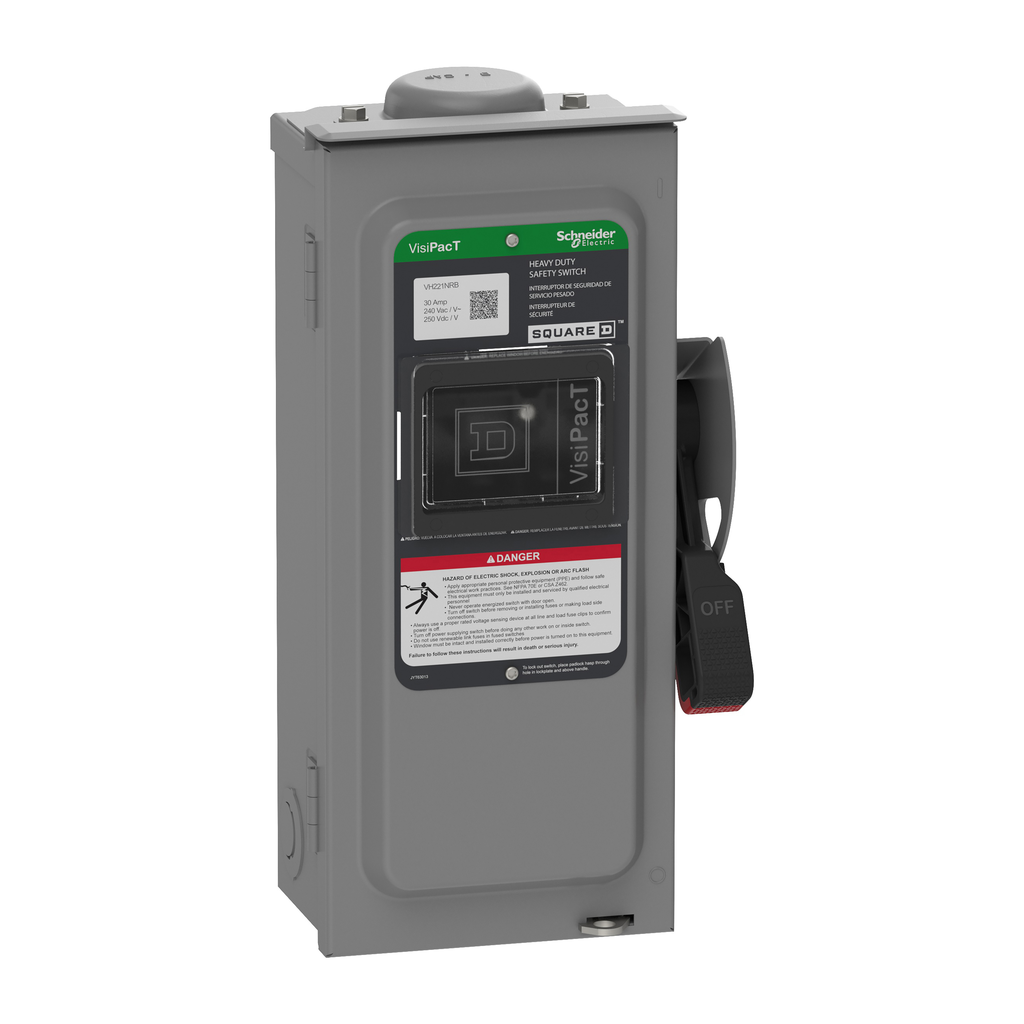

Square D VH221NRB Safety Switch 30A 240V 2-Pole Neutral Installed

Product Description

Square D VH221NRB Safety Switch is designed for reliable performance in demanding environments. This heavy-duty safety switch has improved durability compared to standard switches, offering three times more life than NEMA standards. It features a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle.

• Rated for 30A with voltage of 240 VAC and 250 VDC
• Short circuit rating of 10kA or 200kA based on fuses used
• Type 3R rated with galvannealed steel enclosure and a viewing window

Product Highlights

The VH221NRB is suitable for commercial and industrial use. It includes factory-installed lugs and accepts fuse types H, K, R, and can be modified for J fuses. This switch is surface-mounted and has a 3-wire configuration with two poles and one solid neutral.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH221NRB
• Line Rated Current: 30 A
• Fuse Type: H Or K, R Or J
• Weight: 4 kg
• Height: 14.843 inches
• Width: 6.62 inches
• Depth: 5.16 inches
• Mounting Type: Surface
