Square D VH221N Safety Switch Heavy Duty (30A, 240V) Replacement MPN

Product Description

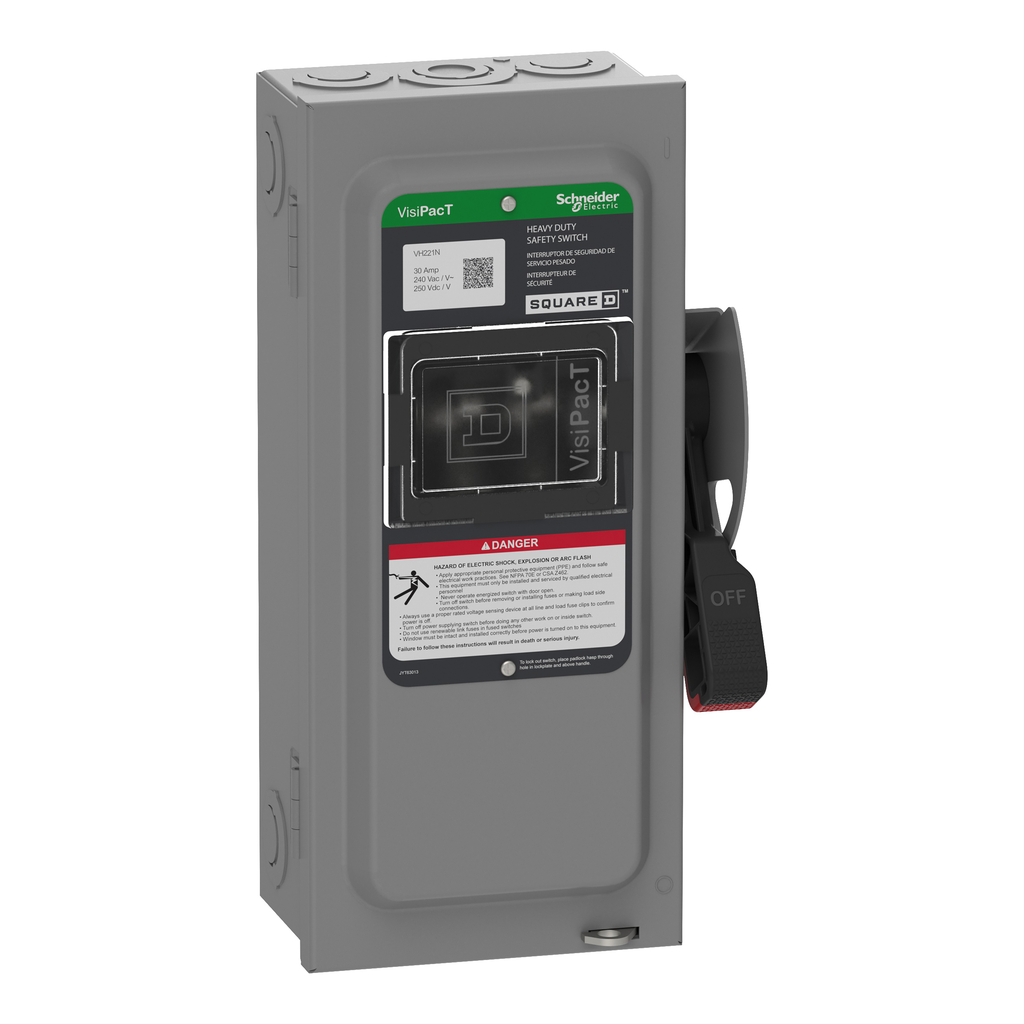

Square D VH221N Safety Switch is a heavy-duty device designed for commercial and industrial usage. This switch offers durability and exceptional performance in challenging environments. Its two-blade fusible design supports a rated current of thirty amperes and operates at a voltage of two hundred forty VAC and two hundred fifty VDC. The heavy-duty construction meets and exceeds NEMA standards, ensuring reliable operation.

• Heavy-duty construction for industrial use
• Rated for thirty amperes and two hundred forty volts
• UL and NEMA certified for safety and reliability

Product Highlights

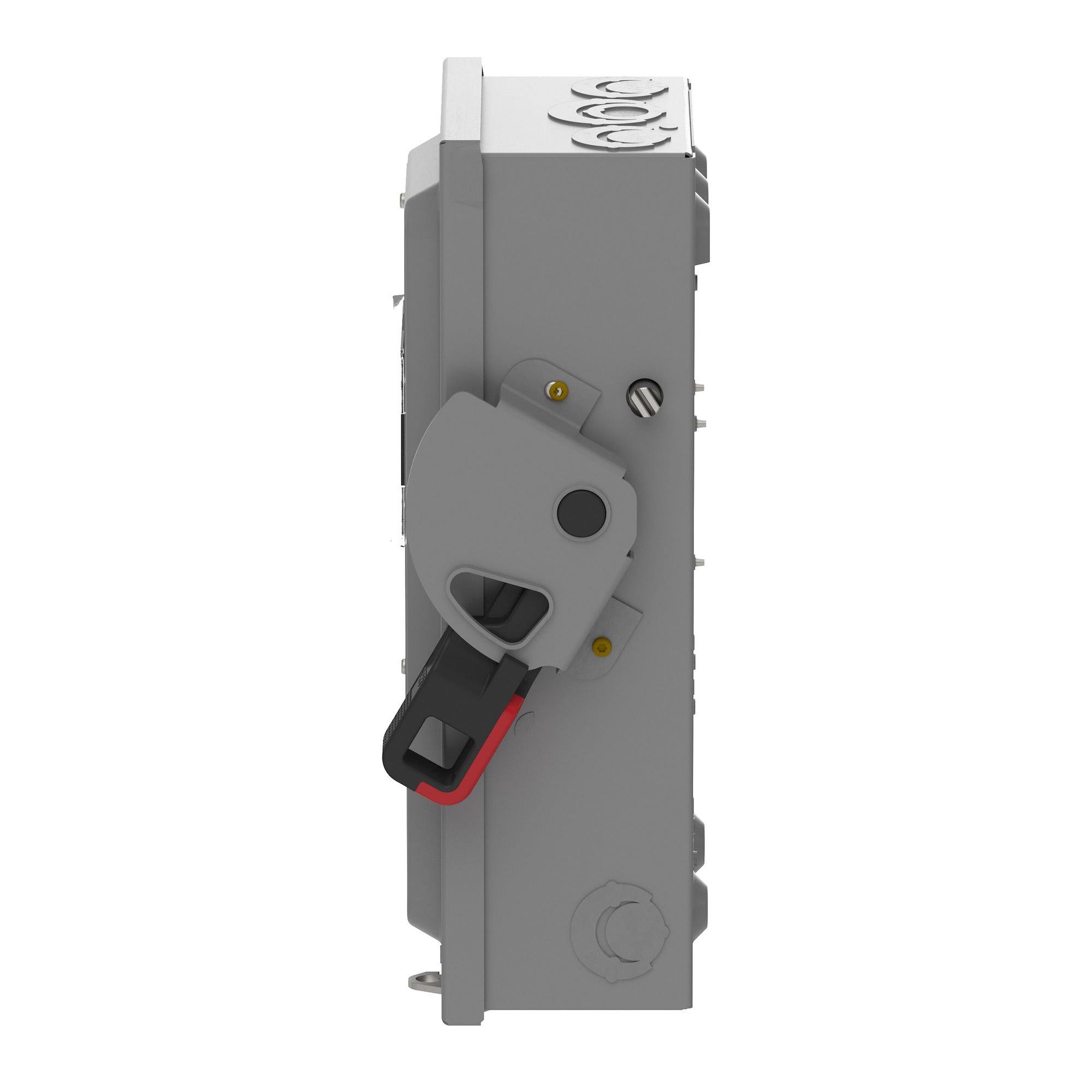

The VH221N features a quick-make, quick-break mechanism and a dual cover interlock. It is Type 1 rated with a robust steel enclosure and includes a factory-installed viewing window. The switch supports multiple fuse types and has a three-wire configuration with two poles and one solid neutral.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH221N
• Line Rated Current: 30 A
• Short Circuit Current Rating: 10 kA
• Fuse Type: H, K, R, or J
• Mounting Type: Surface
• Height: 14.57 inches
• Width: 6.36 inches
• Depth: 5.11 inches
• Weight: 4 kg
• GTIN: 03606485892962
• Certifications: UL Listed File E2875
