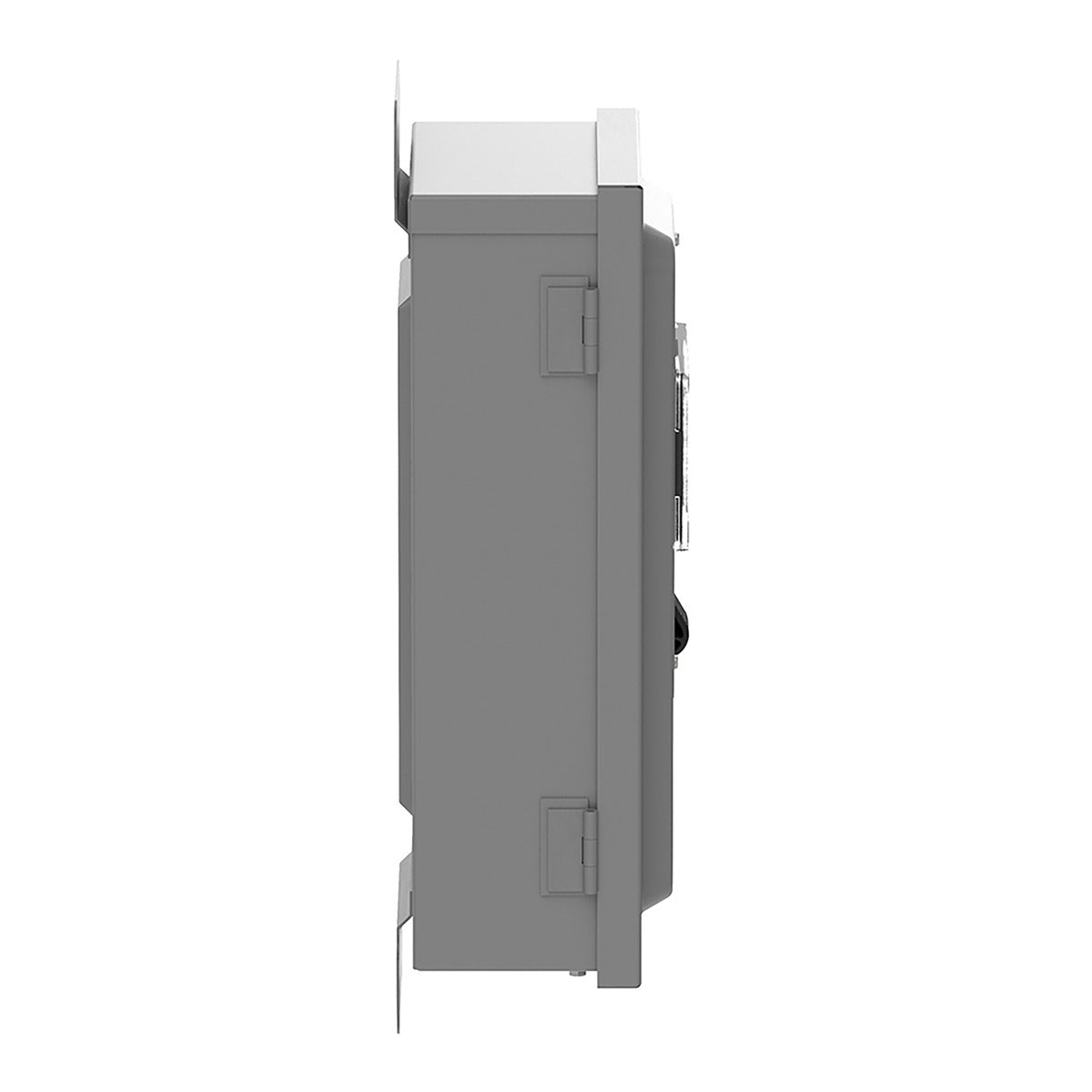

Square D VH221AWKGL Safety Switch Heavy Duty Fused Viewing Window NEMA 12 240V 30A 2 Pole Ground Lugs

Product Description

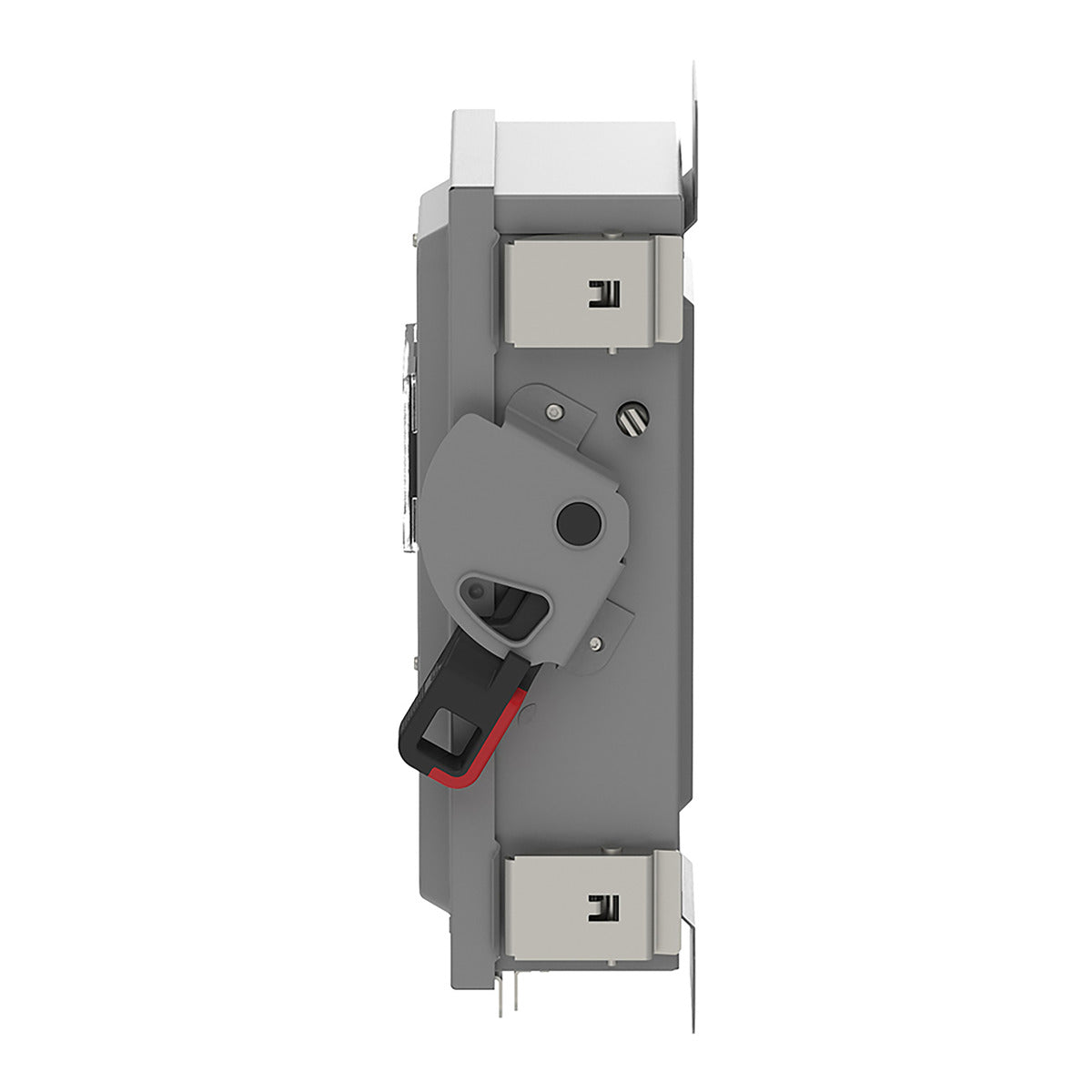

Square D by Schneider Electric offers a heavy duty safety switch, model VH221AWKGL, built for high performance in demanding environments. This switch exceeds the standard durability requirements, making it suitable for commercial and industrial applications. The switch features a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle.

• Rated at thirty amps with a voltage of two hundred forty AC and two hundred fifty DC.

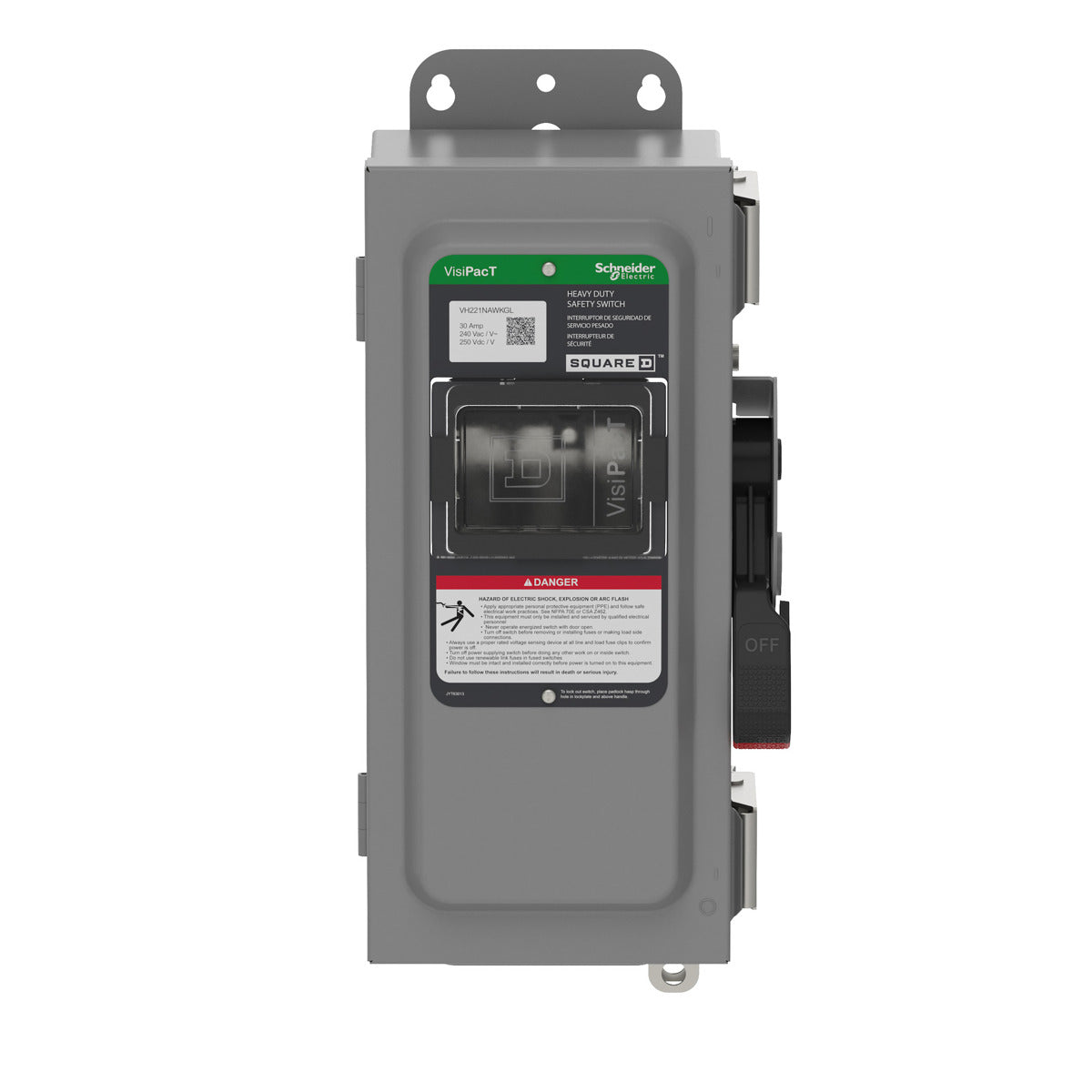

• Includes a factory-installed viewing window for easy monitoring.

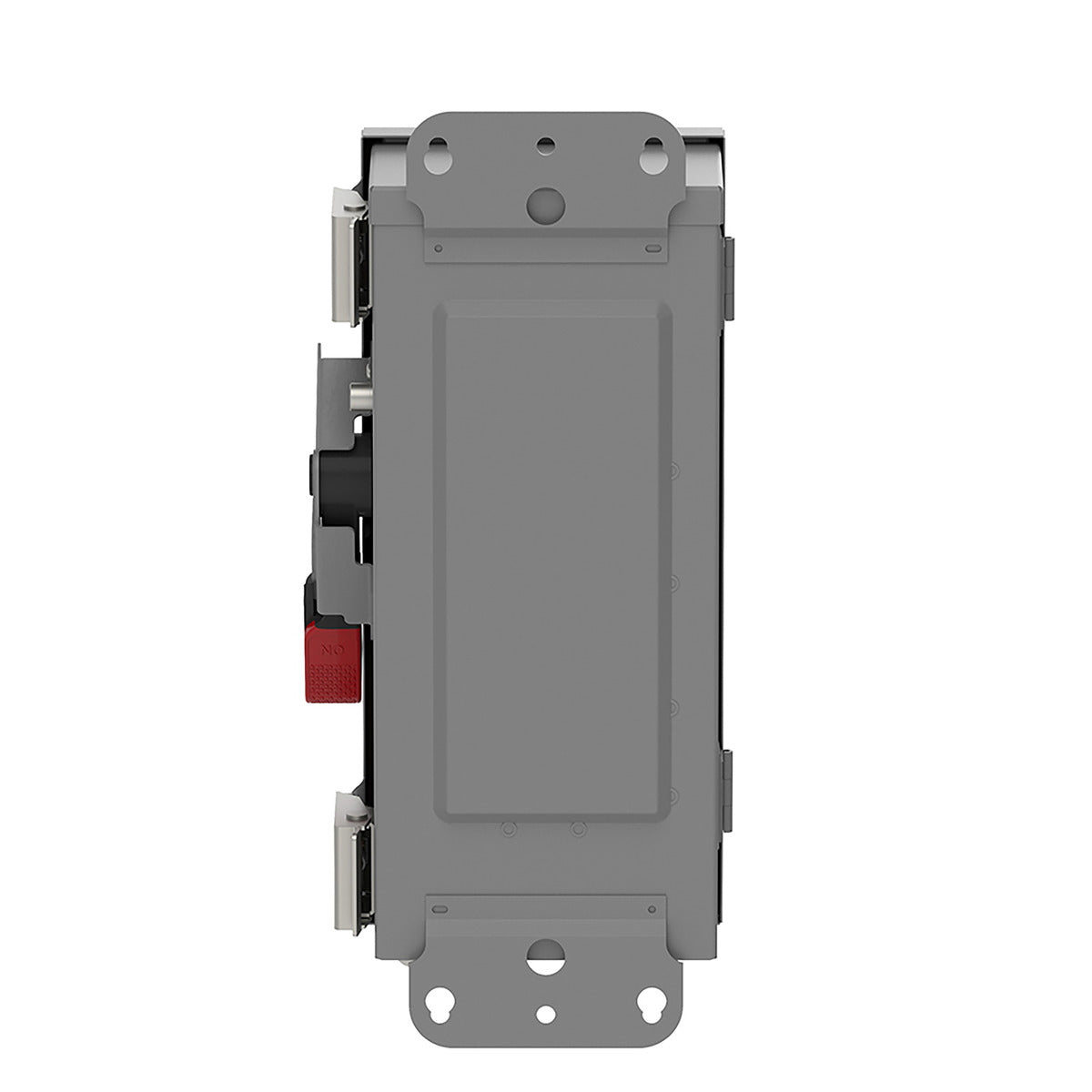

• Designed for surface mounting with factory-installed equipment ground lugs.

Product Highlights

The VH221AWKGL is designed for robust operation and is tested to UL98 and NEMA KS1 standards. It can accommodate various fuse types and allows for easy field modifications, ensuring flexibility and reliability in all installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: VH221AWKGL
• Voltage Rating: 240 VAC / 250 VDC
• Amperage Rating: 30A
• Short Circuit Rating: 10kA or 200kA depending on fuse used
• Fuse Types: H, K, R (field modifiable for J)
• Enclosure Type: Type 12, galvannealed steel
• Wire Range: AWG 12-6 aluminum, AWG 14-6 copper
• Country of Origin: United States
