Square D VCF2 Cam Disconnect Switch Fused 690VAC

Product Description

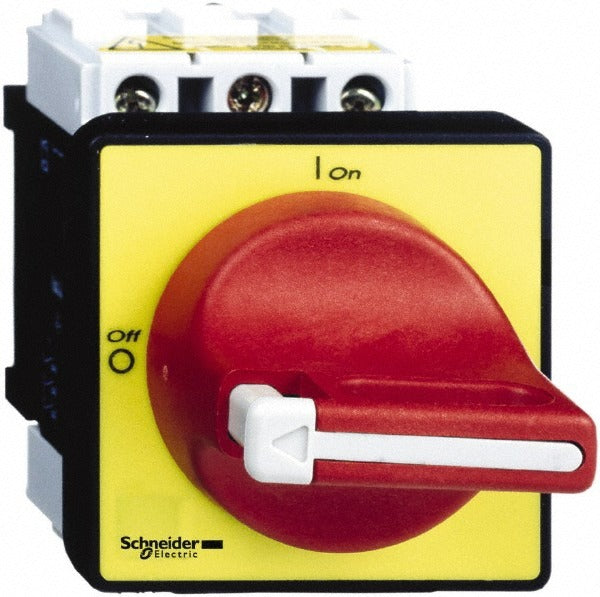

The SQUARE D VCF2 is a fused, enclosed cam disconnect switch rated for 690 volts AC service. It is a 3-pole device with a 3NO contact form, designed to isolate electrical circuits in commercial and industrial power distribution systems. The VCF2 carries a NEMA 1 and NEMA 12 enclosure rating along with an IP20 and IP65 ingress protection rating, making it suitable for a range of indoor environments. A handle is included for manual operation. Licensed electricians and industrial maintenance technicians install and service this type of disconnect in panel and machine control applications.

The VCF2 is intended for use in enclosed electrical installations where a fused, manually operated cam-style disconnect is required. It fits commercial and light industrial applications that require circuit isolation per IEC 60947-3 standards. The three-pole, three-wire configuration covers standard three-phase loads. Its compact footprint makes it practical for installations where panel space is limited.

Key Features

• Fused disconnect design provides both isolation and overcurrent protection in a single device
• Rated for 690 volts AC, suitable for higher-voltage three-phase distribution circuits
• 3-pole, 3NO contact form for standard three-phase load switching
• NEMA 1 and NEMA 12 rated enclosure with IP20 and IP65 ingress protection
• Includes handle for manual circuit isolation
• Certified to CSA, GL, IEC 60947-3, and UL standards

Compatibility

Designed as an OEM-style replacement or direct-install cam disconnect switch for enclosed three-phase electrical distribution and machine control applications rated up to 690 volts AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the upstream supply and verify zero voltage with a calibrated meter before handling any connections. Confirm the enclosure mounting orientation and verify that the fuse ratings match the circuit load requirements before closing the enclosure. Do not defeat or bypass the fusing elements during installation or service.
