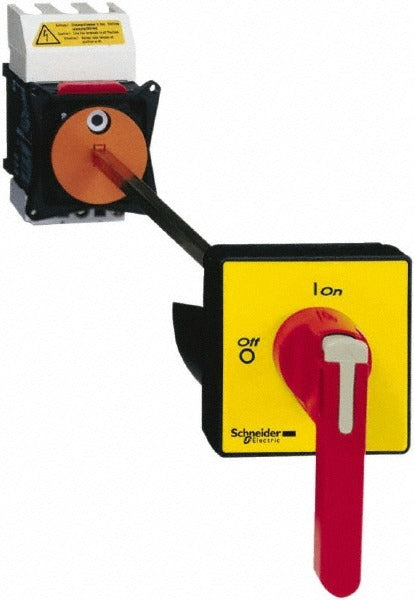

Square D VCCF6 Cam Disconnect Switch Fused 690VAC 3-pole

Product Description

The SQUARE D VCCF6 is a fused, enclosed cam disconnect switch rated for 690 volts AC. It is a 3-pole, 3-wire device with a 3NO contact configuration, designed to provide safe electrical isolation of machinery and industrial equipment. The enclosed housing carries NEMA 1 and NEMA 12 ratings along with an IP20 and IP65 ingress protection rating, making it suited for both general indoor use and environments where dust and water protection are required. The switch includes a handle and shaft extension as part of the standard package. Licensed electricians and industrial maintenance technicians are the primary installers of this type of disconnect device.

This cam disconnect switch is intended for use in industrial and commercial electrical installations where a fused, lockable disconnect point is required upstream of motors, drives, or other electrical loads. Applications include machine tool panels, HVAC equipment disconnects, and industrial control panels operating on 690 VAC systems. The enclosed design allows direct panel or enclosure mounting in facilities subject to IEC and UL electrical safety requirements.

Key Features

• Fused 3-pole cam disconnect rated at 690 volts AC
• 3NO contact form with 3-wire configuration
• NEMA 1 and NEMA 12 enclosure ratings
• IP20 and IP65 ingress protection ratings for versatile installation environments
• Includes handle and shaft extension for panel mounting
• Certified to CSA, GL, IEC 60947-3, and UL standards

Compatibility

Designed as an OEM-style enclosed fused cam disconnect switch for industrial and commercial electrical panel applications operating at up to 690 volts AC.

Installation Notes

Installation of this cam disconnect switch should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and verify absence of voltage on all conductors before beginning installation or servicing. Verify that fuse ratings and wire termination sizes are appropriate for the connected load before energizing. Secure the enclosure and verify all ingress protection seals are properly seated when installing in NEMA 12 or IP65-rated environments.
