Square D VCCF5 Cam Disconnect Switch 690VAC 3 Pole

Product Description

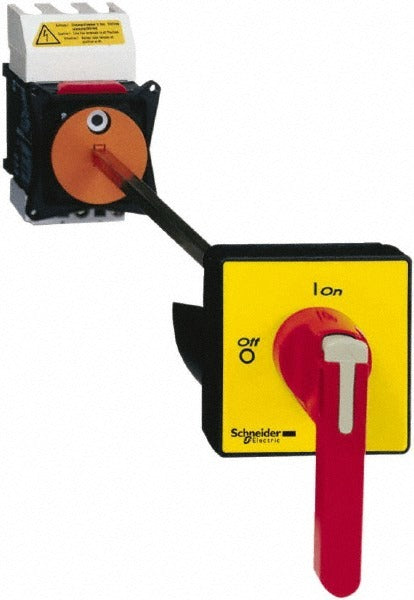

The SQUARE D VCCF5 is a fused, enclosed cam disconnect switch rated for 690VAC operation across 3 poles. It is designed for industrial electrical distribution systems where a visible, lockable disconnect point is required for machinery or panel isolation. The switch features a 3NO contact form with 3 wires and carries dual ingress protection ratings of IP20 and IP65, making it suitable for both standard and wash-down or outdoor-rated enclosure applications. It ships with a handle and shaft extension included. Licensed electricians install this switch as a code-compliant service disconnect in industrial and commercial settings.

The VCCF5 is intended for use in industrial and commercial electrical systems where a fused cam-style disconnect is required at the point of load or equipment entry. Its NEMA 1 and NEMA 12 ratings make it appropriate for indoor installations in general-purpose and dust-tight environments. The included handle and shaft extension support panel door mounting configurations common in machine tool, process equipment, and motor control applications.

Key Features

• Fused cam disconnect design provides both switching and overcurrent protection in a single unit
• Rated 690VAC for compatibility with higher-voltage industrial distribution systems
• Dual ingress protection ratings: IP20 and IP65
• NEMA 1 and NEMA 12 enclosure ratings for indoor general-purpose and dust-tight environments
• Includes handle and shaft extension for panel door or through-door mounting
• Certified to CSA, GL, IEC 60947-3, and UL standards

Compatibility

Designed as an OEM-style replacement or direct-install cam disconnect switch for industrial electrical panels and machinery requiring a fused 3-pole 690VAC disconnect point.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the upstream circuit before mounting or wiring the disconnect. Verify that the panel enclosure rating matches the installation environment before mounting. Do not exceed the rated voltage or current of the switch.
