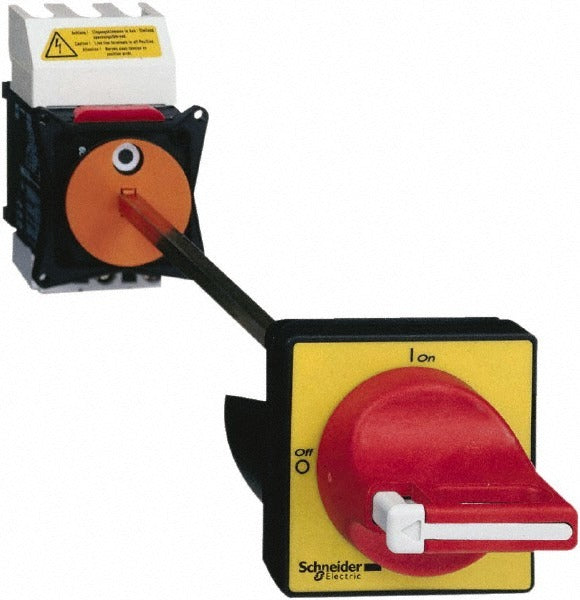

Square D VCCF1 Cam Disconnect Switch 20A 690VAC

Product Description

The SQUARE D VCCF1 is a fused, enclosed cam disconnect switch rated for 20 amps at 690 volts AC. It features a 3-pole, 3-wire configuration with a 3NO contact form, making it suitable for isolating and protecting three-phase electrical circuits. The enclosure carries dual ingress protection ratings of IP20 and IP65, providing flexibility across indoor and select outdoor applications. The unit ships with a handle and shaft extension included. Electricians and industrial maintenance technicians install this switch as a local disconnect point in compliance with NEC and IEC installation requirements. Overall height is 2.91 inches and overall width is 2.36 inches.

The VCCF1 is used in commercial and light industrial electrical distribution systems where a fused local disconnect is required on motor branch circuits, machinery, or panel feed applications. The IP65 rating makes it appropriate for locations where dust and water jets are a concern. The enclosed design and NEMA 1 and 12 ratings suit indoor industrial environments where drip protection and protection from falling dirt are needed. Licensed electricians perform the installation as part of branch circuit or motor circuit work.

Key Features

• 20A continuous current rating at 690 volts AC
• 3-pole, 3-wire, 3NO contact configuration for three-phase circuit isolation
• Dual ingress protection: IP20 and IP65
• NEMA 1 and NEMA 12 enclosure ratings for indoor industrial use
• Includes handle and shaft extension for complete installation
• Certified to CSA, GL, IEC 60947-3, and UL standards

Compatibility

Designed as an OEM-style enclosed cam disconnect switch for commercial and industrial branch circuit and motor circuit applications requiring a fused local isolator.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the upstream circuit before mounting or wiring the switch. Verify that the incoming conductor size and fuse rating are matched to the 20A rating of the device. The shaft extension must be properly aligned with the operator handle before securing the enclosure cover.
