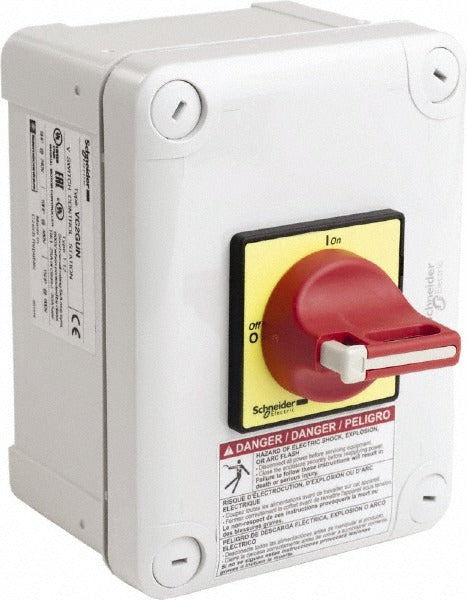

Square D VC2GUN Cam Disconnect Switch 3 Phase Enclosed

Product Description

The SQUARE D VC2GUN is an enclosed cam disconnect switch designed for three-phase electrical systems. It provides a manual means of isolating power to motors, machinery, and other industrial loads. The switch features a three-pole configuration and carries an IP65 ingress protection rating, making it suitable for environments where dust and water jet exposure are concerns. Built from polyvinylchloride (PVC), it meets multiple recognized standards including UL 508, UL Listed, IEC 60947-4-1, IEC 60204, and CSA 22.2. Licensed electricians and industrial maintenance technicians are the primary installers of this device in commercial and light industrial applications.

This cam disconnect switch is suited for enclosed control panel installations, machine tool wiring, and motor branch circuit disconnects in three-phase commercial and industrial settings. The NEMA 1 and 12 enclosure ratings extend its usability to indoor locations where protection from dust, dripping non-corrosive fluids, and falling dirt is required. Its compact footprint allows it to fit in tight cabinet spaces without compromising safe disconnecting capability.

Key Features

• Three-phase, three-pole cam-style disconnect for positive load isolation
• IP65 ingress protection rating for resistance to dust and water jets
• NEMA 1 and NEMA 12 rated enclosure for indoor commercial and industrial use
• PVC construction for durable, non-metallic housing
• Compliant with UL 508, IEC 60947-4-1, IEC 60204, CSA 22.2, and related standards
• Compact overall dimensions suitable for panel and enclosure mounting

Compatibility

Designed as an OEM-style enclosed cam disconnect switch for three-phase motor and load disconnecting applications in commercial and industrial control systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lockout/tagout the circuit before beginning installation or any wiring connections. Verify that the enclosure mounting location is appropriate for the NEMA 1 or NEMA 12 rating and that the installation environment does not exceed the limits of the IP65 rating. Do not exceed the rated electrical parameters marked on the device.
