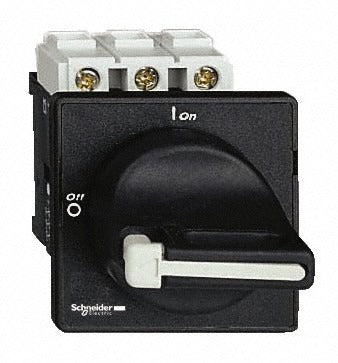

Square D VBF3 Cam Disconnect Switch Fused 690VAC 3 Pole

Product Description

The SQUARE D VBF3 is a fused, enclosed cam disconnect switch rated for 690 volts AC. It is a 3-pole device with a 3NO contact form and accommodates 3 wires. The switch is housed in an enclosed body with an IP20 and IP65 ingress protection rating, making it suitable for both standard and protected installation environments. A handle is included for manual operation. Electricians and industrial maintenance technicians install this switch as a manual disconnect point in electrical distribution and motor circuit applications. It meets CSA, UL, IEC 60947-3, and GL standards.

The VBF3 is suited for use in commercial and light industrial electrical systems where a reliable, manually operated disconnect is required. Typical installations include motor control panels, machinery disconnects, and branch circuit isolation points. The enclosed housing and dual IP ratings allow deployment in NEMA 1 and NEMA 12 rated enclosures. The fused design provides integrated overcurrent protection within the disconnect assembly, simplifying panel layouts where space is limited.

Key Features

• Fused cam disconnect switch provides integrated overcurrent protection and manual isolation in one assembly
• Rated 690 volts AC for compatibility with higher-voltage industrial distribution systems
• 3-pole, 3NO contact configuration supports standard 3-phase circuit applications
• IP20 and IP65 ingress protection ratings support both NEMA 1 and NEMA 12 enclosure installations
• Handle included for manual operation without additional hardware
• Certified to CSA, UL, IEC 60947-3, and GL standards for broad compliance coverage

Compatibility

Designed as an OEM-style replacement or new-installation cam disconnect switch for enclosed, fused 3-pole manual disconnect applications in NEMA 1 and NEMA 12 rated panel environments.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before installing or servicing this switch. Verify that the supply voltage and wire gauge are within the rated specifications of the switch before terminating conductors. Confirm enclosure NEMA rating matches the installation environment prior to mounting.
