Square D V5 Cam Disconnect Switch 690VAC 3 Pole Fused

Product Description

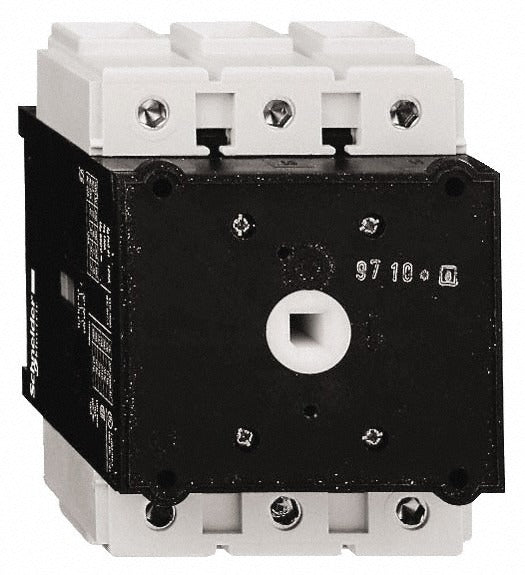

The SQUARE D V5 is a fused, enclosed cam disconnect switch rated for 690 volts AC in 3-phase electrical systems. It features a 3-pole, 3-wire configuration with a 3NO contact form, making it suited for isolating power to motors, machinery, or other industrial loads. The non-metallic enclosure provides an IP20 ingress protection rating, guarding against solid object intrusion in typical indoor industrial environments. This switch measures 4.92 inches in overall height, 3.54 inches in width, and 3.54 inches in depth, and weighs 2.34 pounds. Licensed electricians and industrial maintenance technicians are the primary installers for this type of device.

The V5 cam disconnect switch is designed for use in 3-phase electrical distribution and motor control applications. Its fused design provides overcurrent protection at the point of disconnect, which is common in panel boards, machine tool circuits, and equipment isolation scenarios. The enclosed non-metallic housing suits indoor installations where a compact footprint and non-conductive enclosure material are required. This switch meets multiple international standards, making it applicable across a range of commercial and light industrial installations.

Key Features

• Rated for 690 volts AC, 3-phase operation
• Fused disconnect design provides integrated overcurrent protection
• 3-pole, 3-wire, 3NO contact configuration
• Non-metallic enclosed housing with IP20 ingress protection rating
• Certified to CSA, GL, IEC 60947-3, and UL standards
• Compact form factor: 4.92 inches H x 3.54 inches W x 3.54 inches D

Compatibility

Designed as an OEM-style replacement or direct-install cam disconnect switch for 3-phase, 690V AC fused disconnect applications in enclosed industrial and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize and lock out the circuit at the upstream source before beginning any wiring or mounting work. Verify the supply voltage and phase configuration match the switch rating prior to connection. Do not exceed the rated voltage or wire gauge capacity of the switch terminals.
