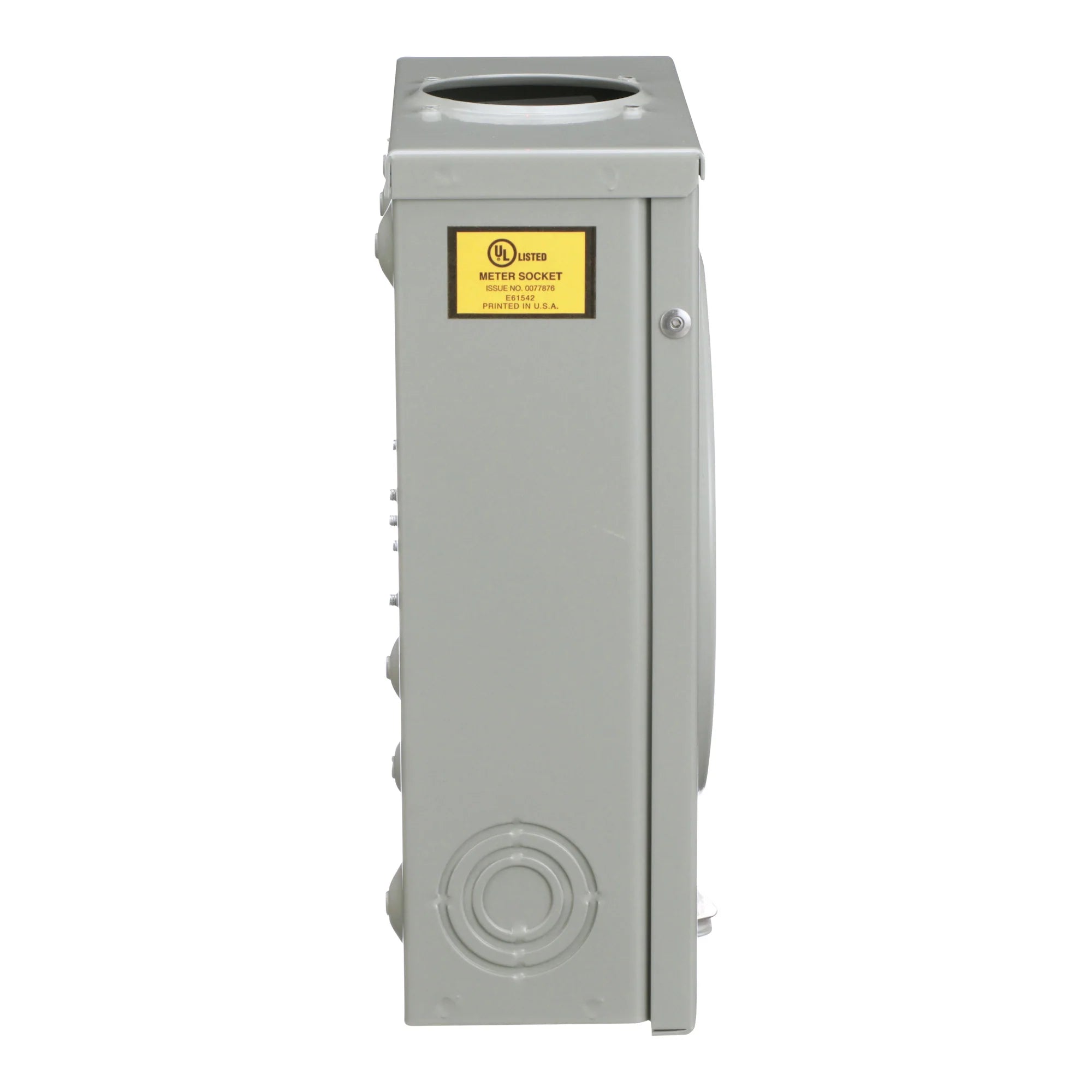

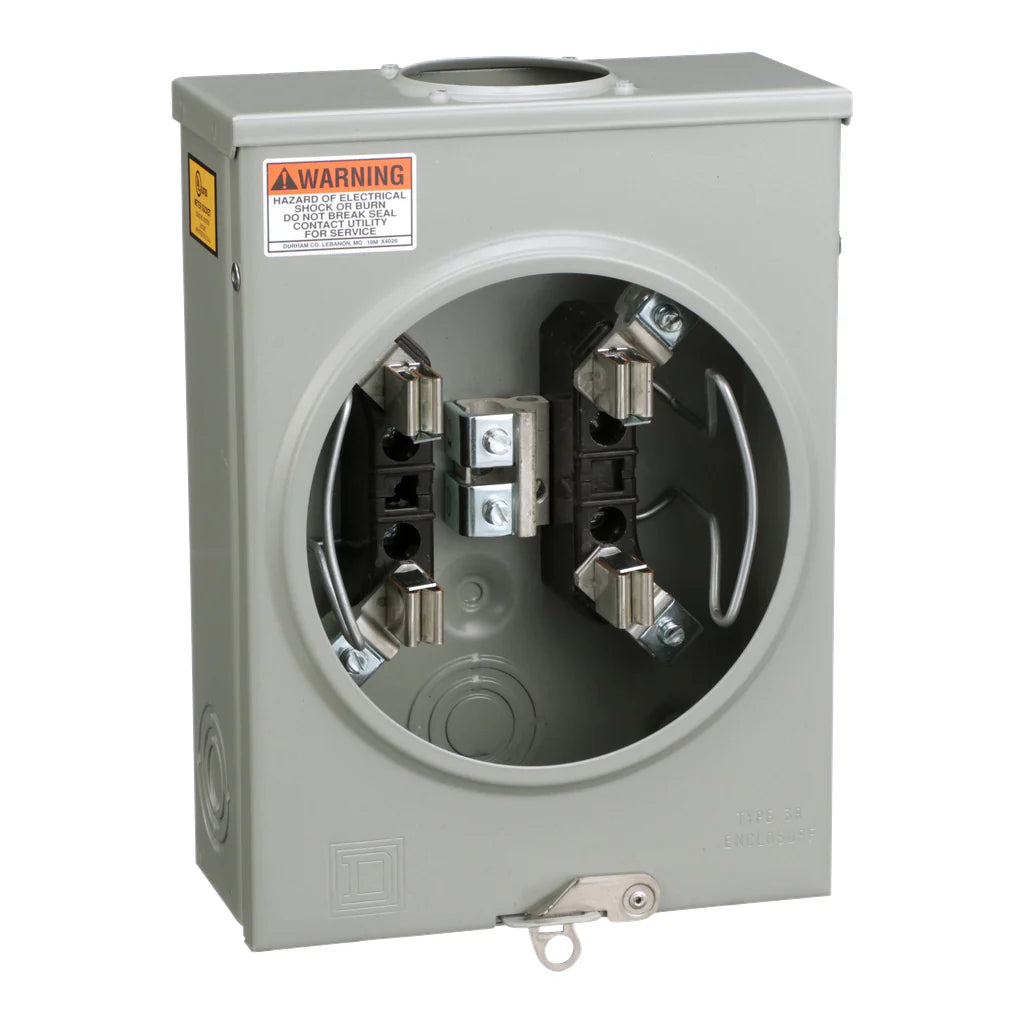

Square D UTRS101B 600 VAC 125 Amp NEMA 3R Overhead/Underground Service Ringless Meter Socket

Product Description

The Square D UTRS101B is a meter socket designed for overhead and underground service. It supports a maximum voltage of six hundred volts and a maximum current of one hundred twenty-five amps. This ringless meter socket is ideal for single phase three wire systems. It features a NEMA 3R enclosure, making it suitable for various installations.

• Compatible with overhead or underground feeds.
• Four jaws with no bypass and without jaw release.
• Accepts various wire sizes for flexibility in installation.

Product Highlights

This unit is UL Listed, ensuring compliance with safety standards. It includes a bonded neutral and accepts wire sizes from eight AWG to two-aught AWG for the main and load lugs, and fourteen AWG to two AWG for the ground. The enclosure dimensions are ten point eighty-eight inches in height, eight inches in width, and three point five inches in depth, providing a robust and secure housing for your electrical connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: UTRS101B
• Voltage: 600 Volt
• Amperage: 125 Amp
• Enclosure: NEMA 3R
• Mounting Type: Surface
• Country of Origin: USA
• Warranty Length: 18 months
• Number of Phases: 1 Phase
• Number of Jaws: 4 without jaw release
