Square D UTH7213T 600 VAC 200 Amp 3-Phase 4-Wire Overhead/Underground Service Ringless Meter Socket

Product Description

The Square D UTH7213T is a reliable meter socket designed for three-phase applications. It has a rating of two hundred amps and supports voltages up to six hundred VAC. This model is ideal for overhead or underground service connections.

• Rated at 200 Amps for three-phase systems
• UL Listed for safety and reliability
• NEMA 3R enclosure for outdoor applications

Product Highlights

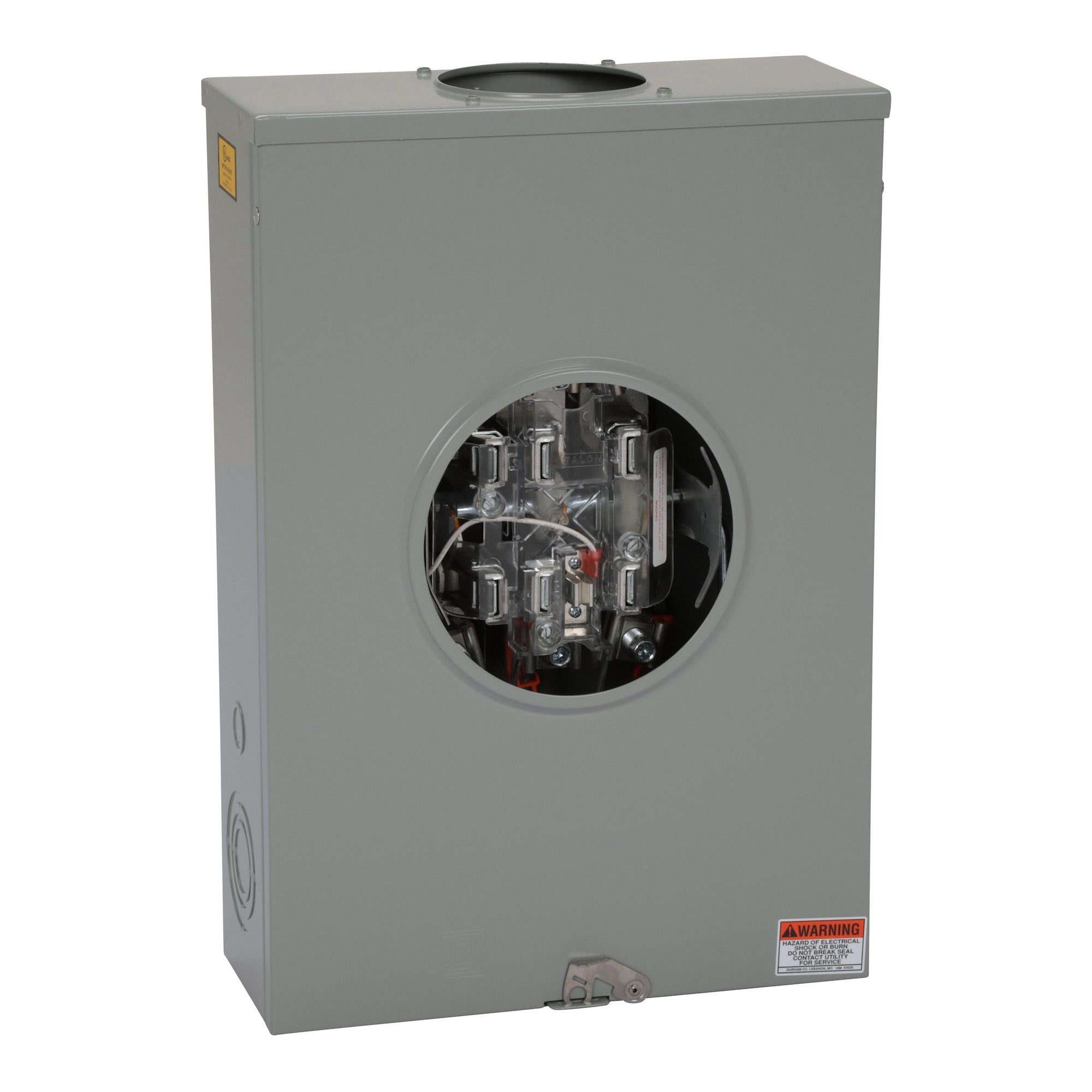

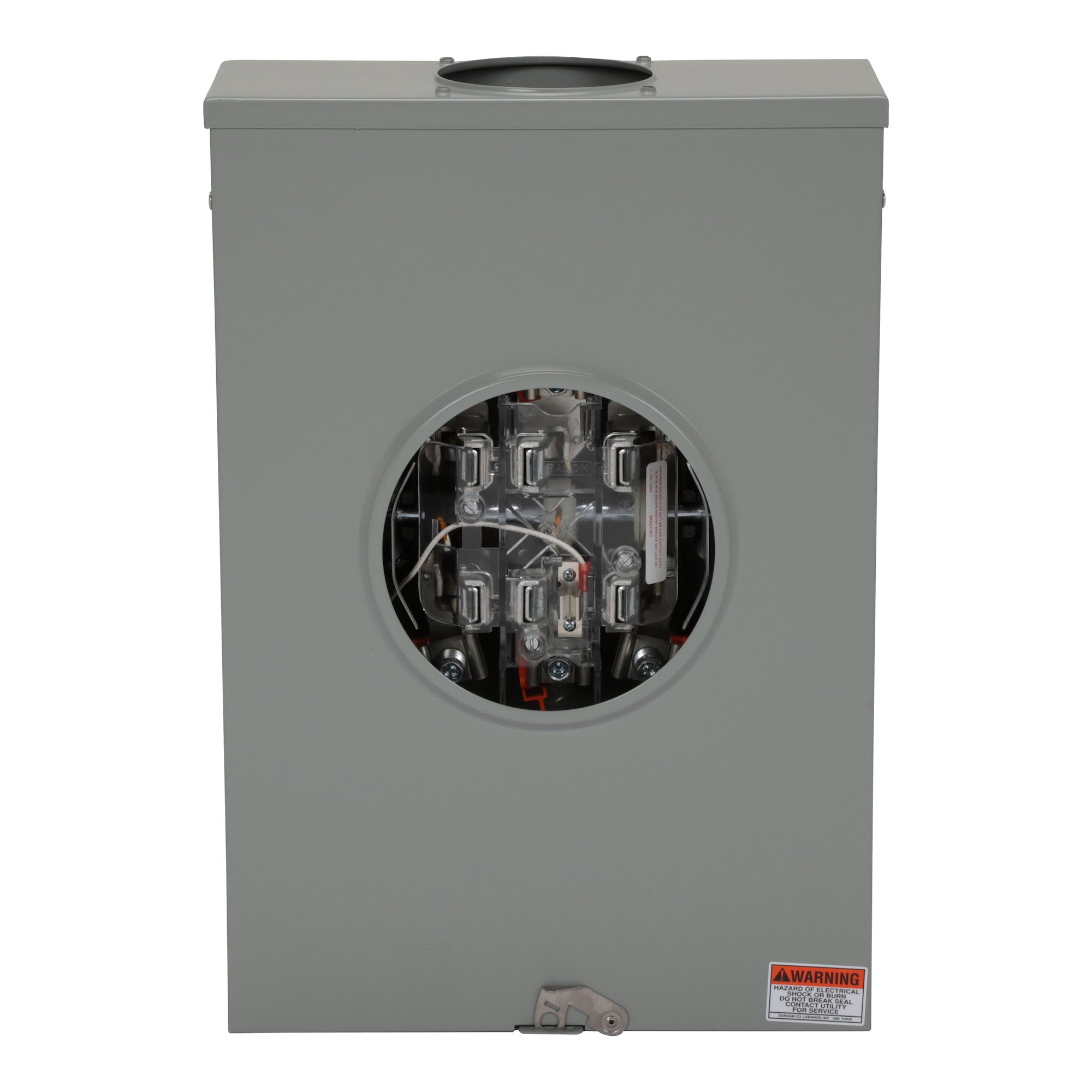

This ringless meter socket facilitates easy installation with its seven jaws. It features a lever bypass and jaw release, making it suitable for various electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: UTH7213T
• Voltage: 600 Volt
• Amperage: 200 Amp
• Number of Phases: 3 Phase
• Enclosure: Steel, NEMA 3R
• Dimensions: 19 inches tall, 13 inches wide, 4.94 inches deep
• Wire Capacity: Accepts one 6 AWG to 350 kcmil copper or aluminum wire and 14 AWG to 2 AWG for ground
• Warranty Length: 18 months
