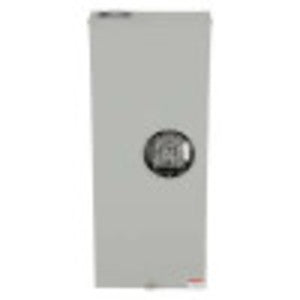

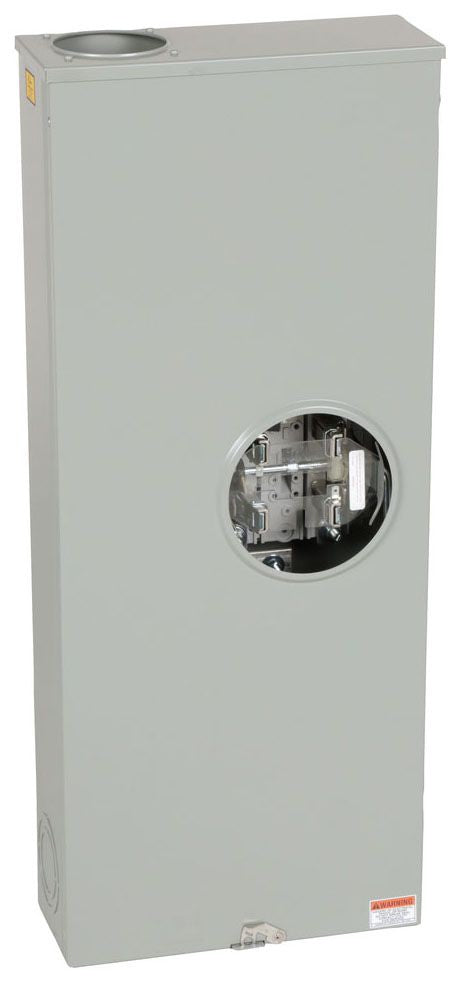

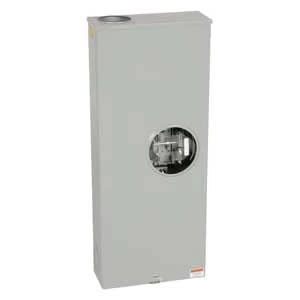

Square D UTH4330T Meter Socket Ringless Lever Oh/Ug 320A

Product Description

The Square D UTH4330T is a meter socket that features a ringless design and lever operation, suitable for both overhead and underground services. This unit is rated for three hundred twenty amperes and is built with a steel enclosure, ensuring durability. It is compliant with UL standards and has a voltage rating of six hundred volts AC.

• Ringless type with a lever bypass
• Four jaws with jaw release mechanism
• Compact dimensions of fifteen inches wide, five point sixty-eight inches deep, and thirty-six point sixty-two inches high

Product Highlights

This meter socket is ideal for residential applications and provides reliable performance for single-phase systems.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Catalog Number: UTH4330T

Technical Specifications

• Current Rating: 320 Ampere
• Voltage Rating: 600 VAC
• Wire Size: 3/8 Inch (Aluminum/Copper, Line/Load/Neutral), 14 to 1/0 AWG (Aluminum/Copper, Ground)
• Enclosure: NEMA 3R
• Hub Type: 2 to 4 Inch
• Number of Jaws: 4
• Dimensions: 15 Inch W x 5.68 Inch D x 36.62 Inch H
• Neutral Type: Bonded Neutral
• Service Type: Overhead/Underground
