Square D URS202BCR 200 Amp Horizontal Overhead/Underground Service Ring Type Meter Socket

Product Description

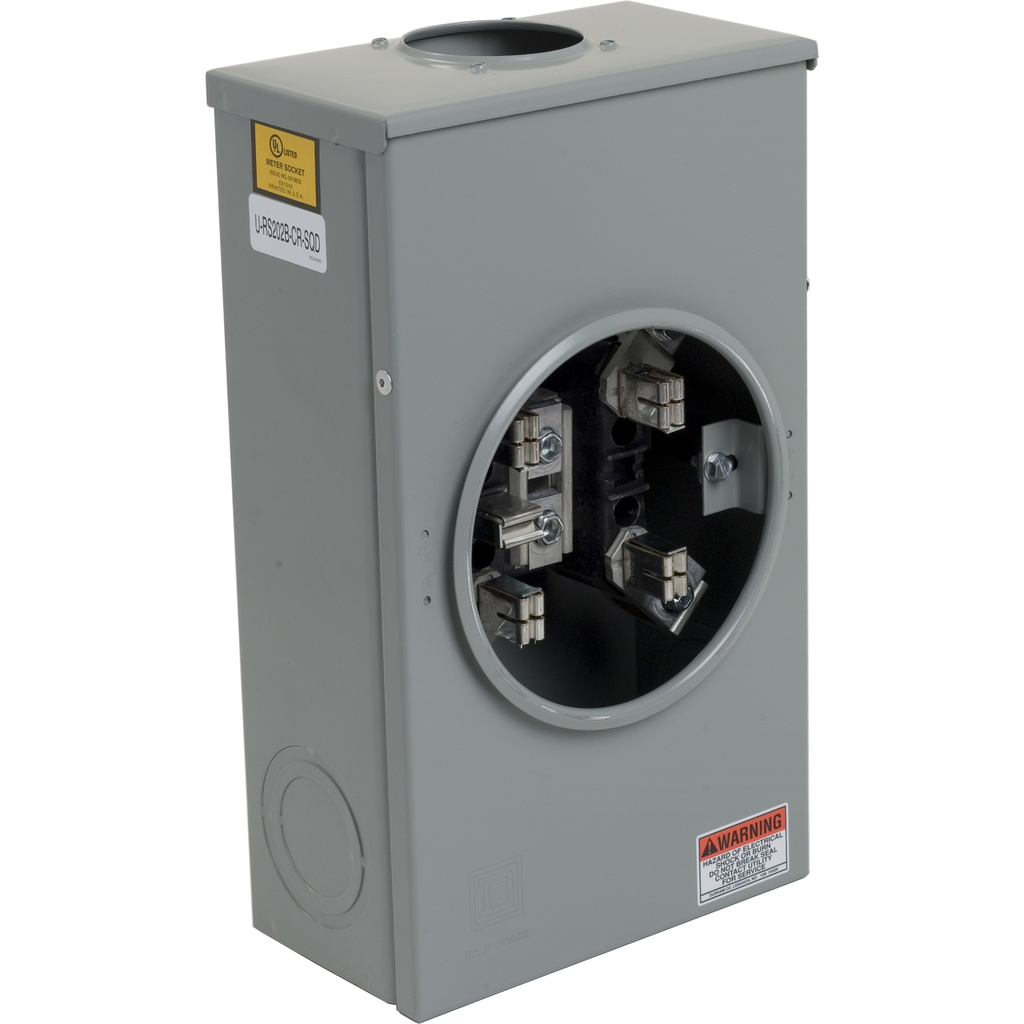

Square D URS202BCR is a 200 Amp meter socket used for overhead and underground service applications. It is suitable for residential use, accommodating single or three-phase systems. The NEMA 3R enclosure features ground lugs and top endwall hub opening, requiring a bolt on hub or closing plate. This ringless type socket has no bypass and is rated at 200A with four jaws, allowing it to handle up to 10,000 RMS symmetrical amperes in short circuit current. The unit is UL listed, affirming its compliance with safety standards.

• 200 Amp rating
• NEMA 3R enclosure
• UL listed for safety

Product Highlights

This socket provides reliable power distribution for residential applications, ensuring safety and compliance with electrical standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: URS202BCR
• Voltage: 600 Volt
• Amperage: 200 Amp
• Enclosure: Steel
• Mounting Type: Surface
• Phases: 1 Phase
• Warranty Length: 18 months
• Country of Origin: USA
