Square D UHTRP242363 Meter Socket, Ringl 200 Amp

Product Description

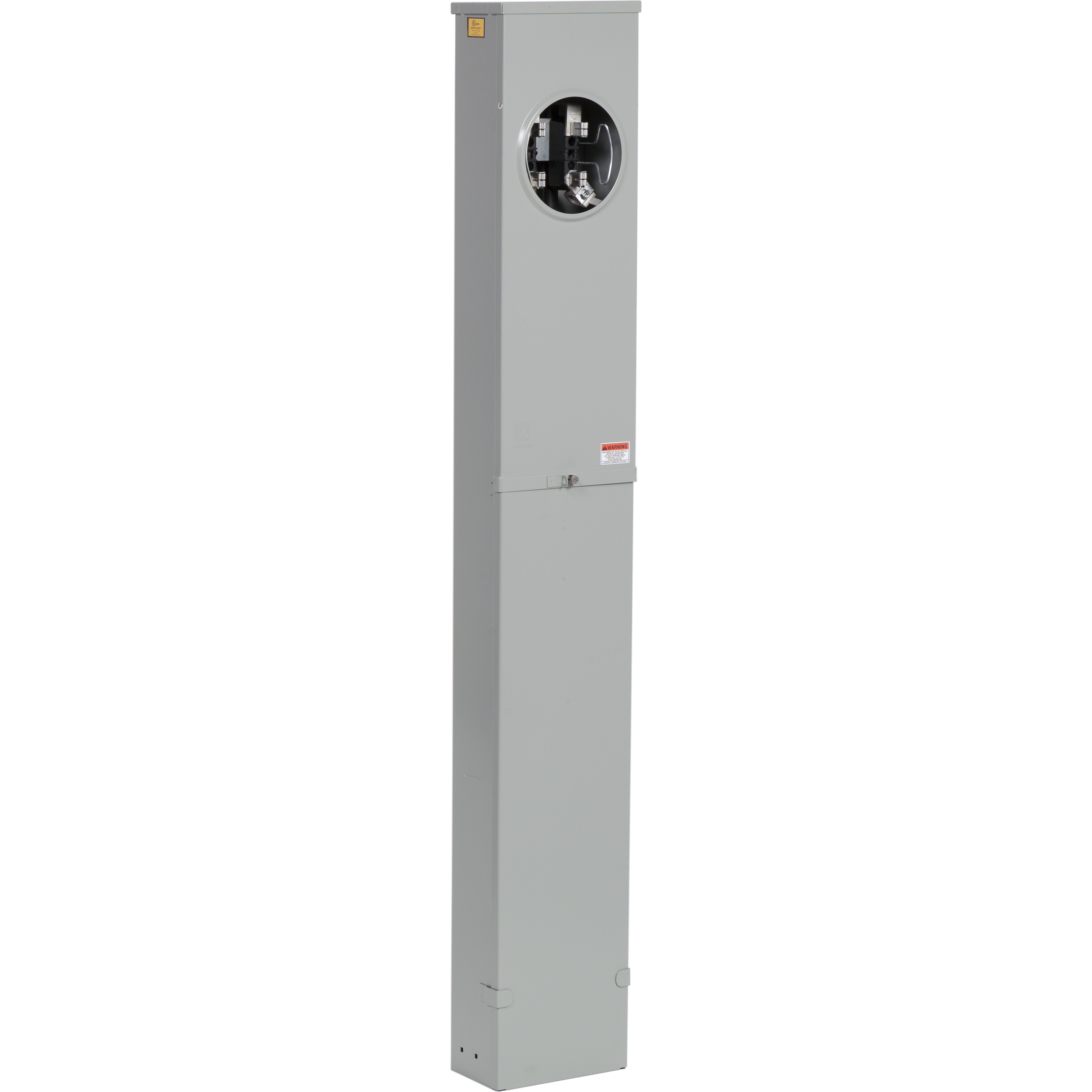

The Square D UHTRP242363 meter socket is a ringless, single-phase, 3-wire socket with 4 jaws and a horn bypass. This Series A meter socket is rated for 200 Amp and 600 Volt. It features a NEMA 3R enclosure made of steel and is designed for underground cable entry and surface mounting.

• Ringless meter socket
• Equipped with horn bypass and no jaw release
• NEMA 3R enclosure for outdoor use

Product Highlights

This Square D meter socket is UL Listed and ANSI certified for use as service entrance equipment. It supports wiring from 8 AWG to 350 kcmil.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: UHTRP242363
• Country of Origin: US

Technical Specifications

• Type: Ringless;Meter Socket
• Brand: Square D™
• Voltage: 600 Volt
• Amperage: 200 Amp
• Enclosure: Steel
• NEMA Size: 3R
• Cable Entry: UG
• Product UPC: 78590121308
• 12-Digit UPC: 785901213086
• Mounting Type: Surface
• Certifications: ANSI,UL Listed
• Number of Jaws: 4 without jaw release
• Number of Phases: 1 Phase
• Country of Origin: USA
• Bypass Type: Horn bypass
• Phase: 1
• Item Type: Ringless;Meter Socket
• Manufacturer: Schneider Electric
• Voltage Rating: 240 V AC
• Amperage Rating: 200
• Feed Type: Underground
• Wire Size: 8 AWG to 350 kcmil
• Hub Type: A ACP Closing Plate
• Cover Type: Ringless
• Terminal Type: Hex Lug
• Enclosure Type: NEMA 3R
• Rated Voltage: 600V ac
• No. of Wires: 3
• Service Type: UG
• Wiring Configuration: 3-Wire
• Number Of Cutouts: 1
• Jaw Quantity: 4 without jaw release;4 without jaw release
• Line Side Wire Range: AWG 8...350 kcmil
• Mounting: Surface
• Standard: UL LISTED
• UNSPSC: 39121102
• UPC 11: 78590121308
• UPC 12: 785901213086
• Height: 16.2560 in
• Length: 161.7980 in
• Width: 24.1300 in
