Product Description

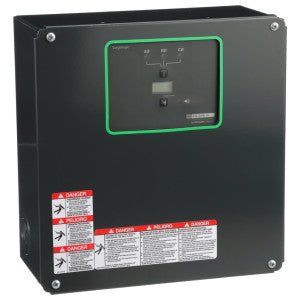

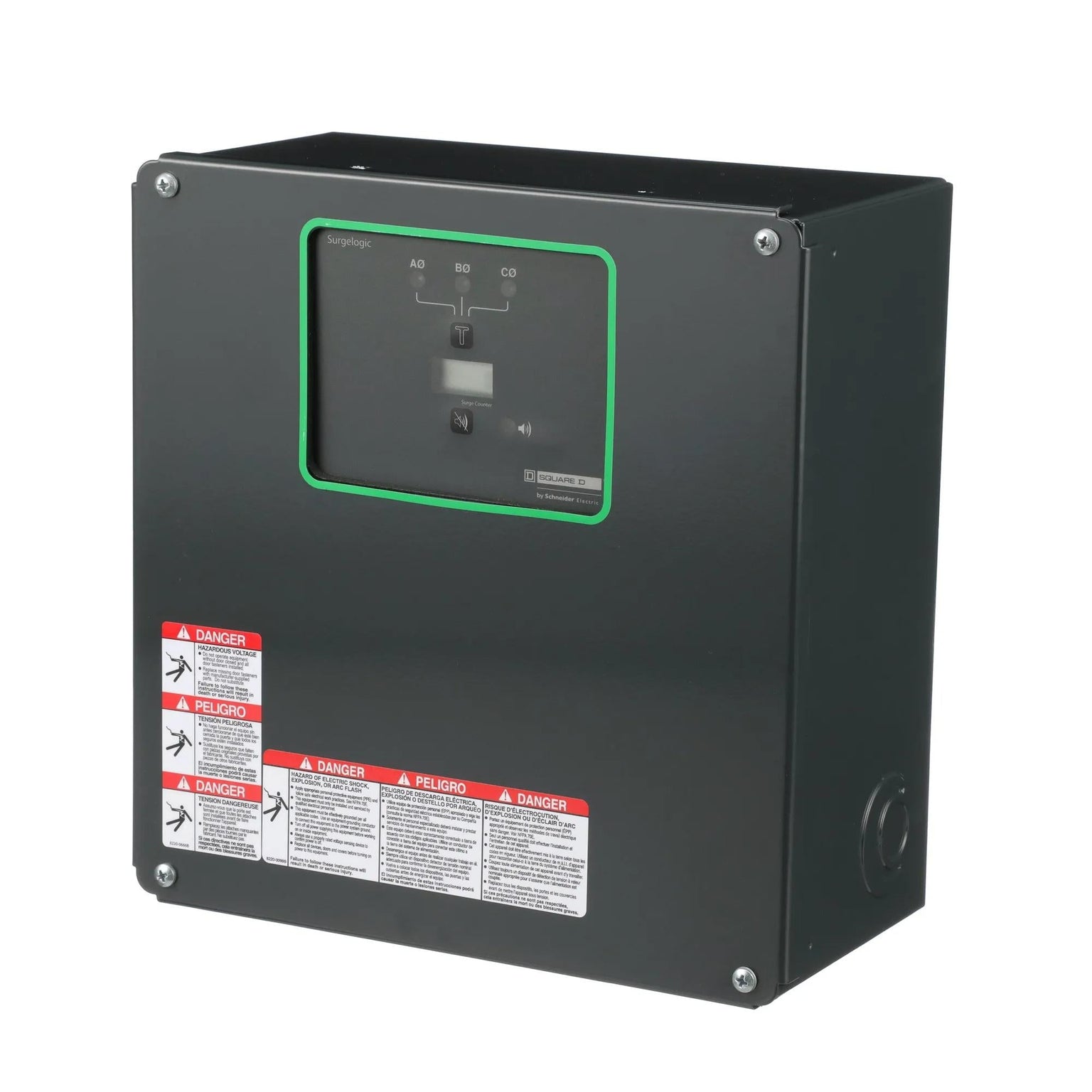

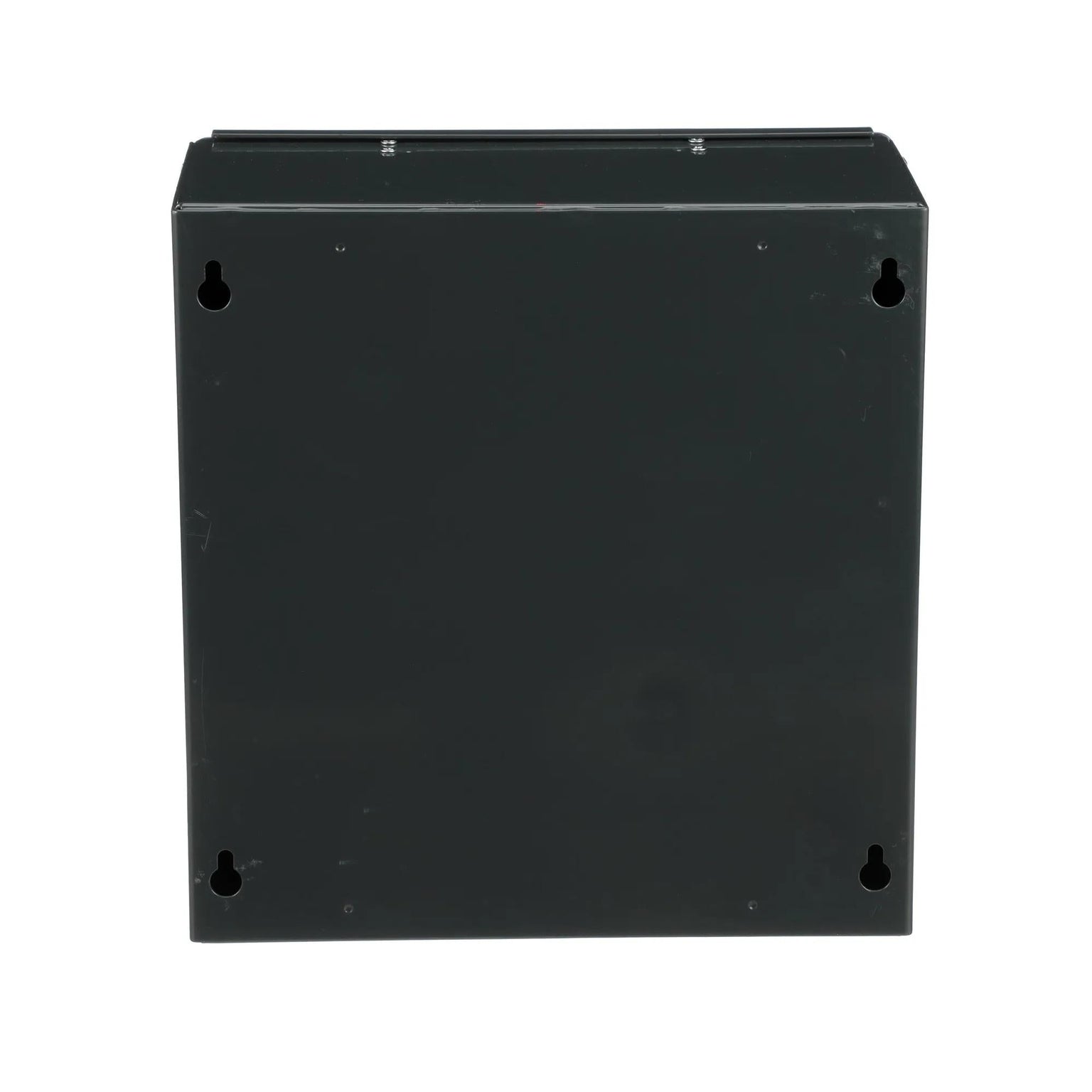

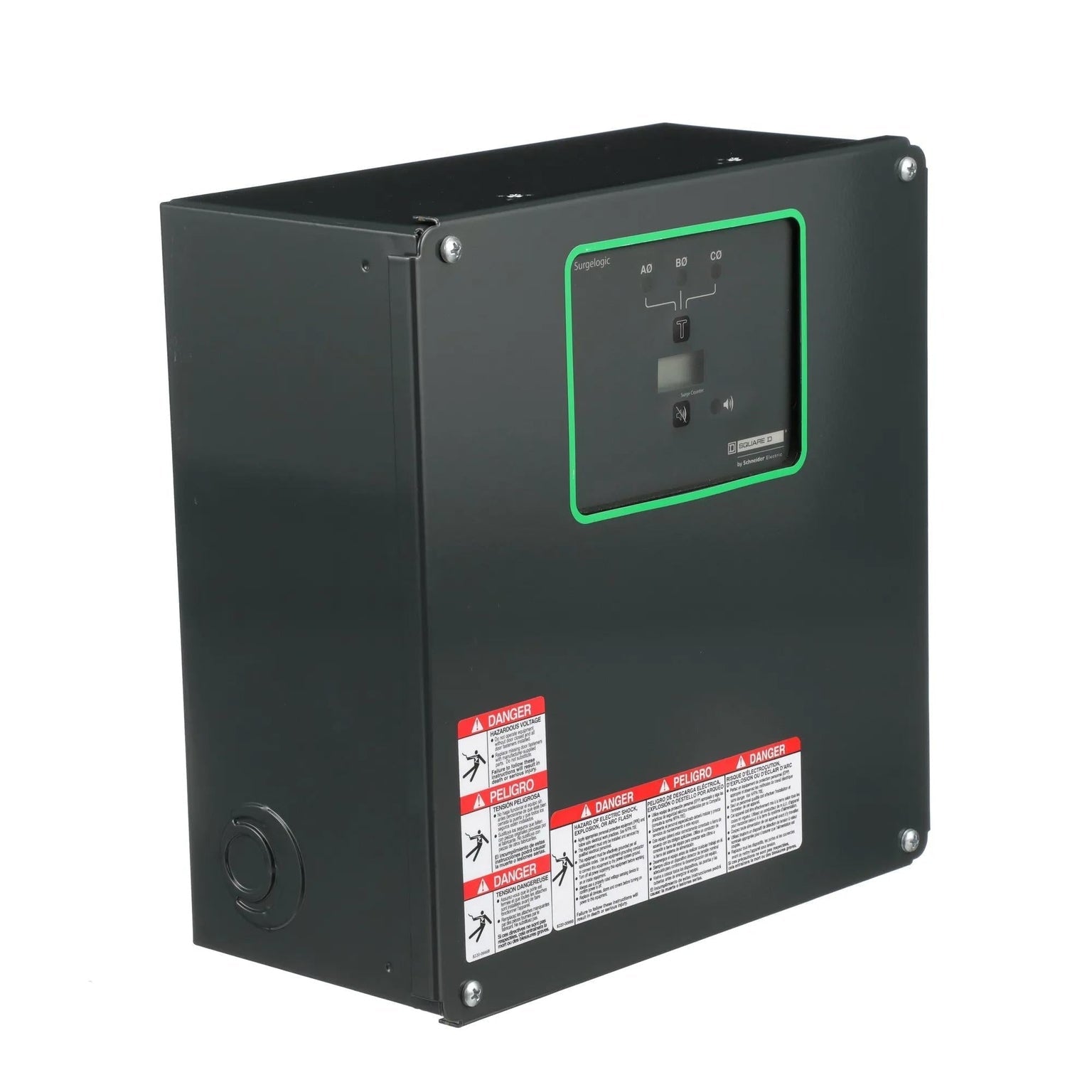

The Square D SSP04EMA12 is a Surgelogic Type EMA Series surge protection device delivering specification grade performance for service entrance or critical branch panel applications. This multi-phase surge suppression system provides transient suppression and noise filtration in a durable modular package. The device has a current rating of 120kA and a voltage rating of 480Y/277VAC.
- Suitable for service entrance or critical branch panel applications

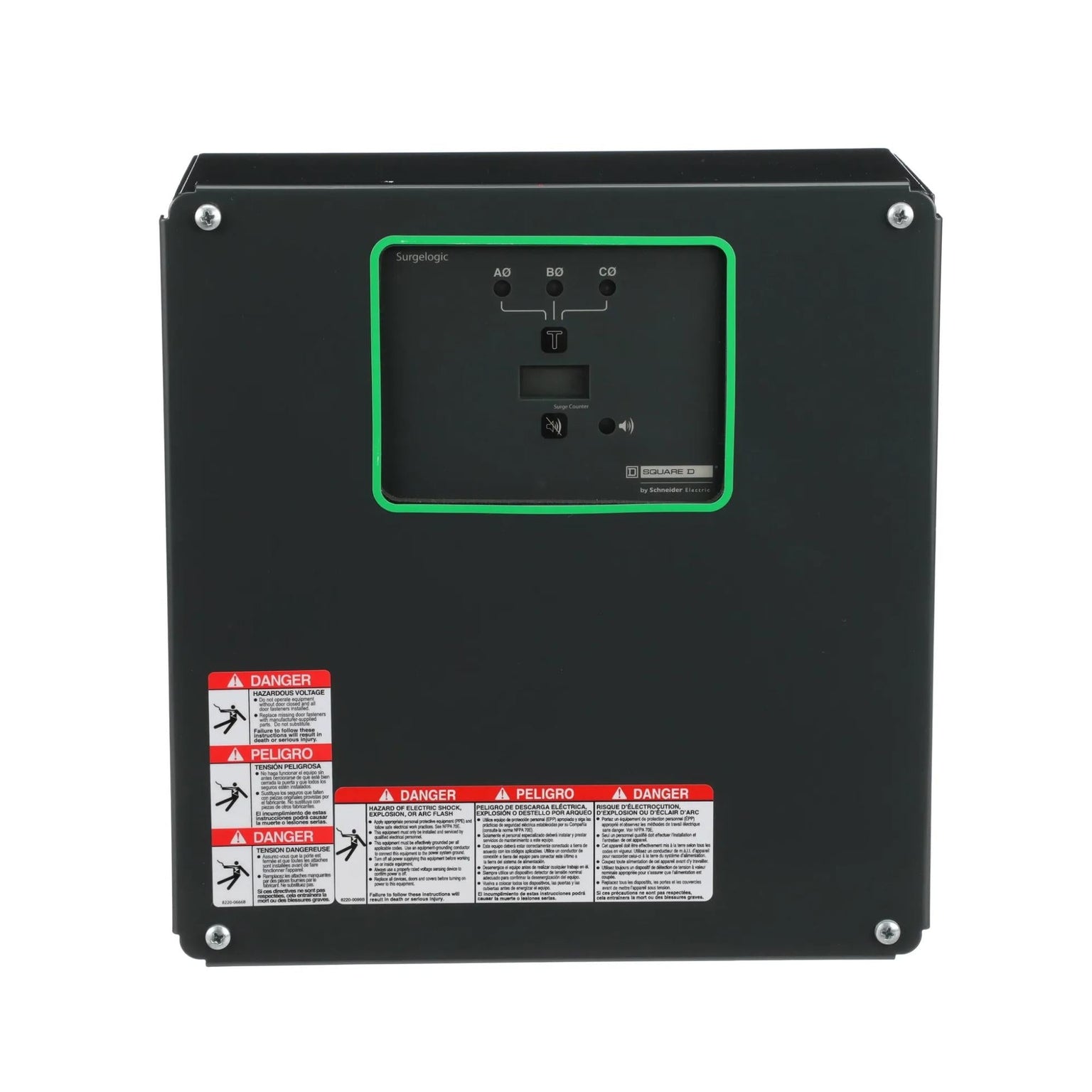

- Features a diagnostic interface with push to test switches and red and green status LEDs
- Includes an audible alarm with disable switch and a surge counter
Product Highlights
The Square D SSP04EMA12 surge protection device provides transient suppression and noise filtration. It features a diagnostic interface, status LEDs, dry contacts and surge counter.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: SSP04EMA12
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: SSP04EMA12
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Country of Origin: United States
-
Made in USA: Yes
-
Phase: 3
-
UPC: 785901974550
-
GTIN: 00785901974550
-
Depth: 135 mm
-
Width: 253.5 mm
-
Height: 282 mm
-
Standards: CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
-
Cable Length: 483 mm
-
Surge Current: 120 kA
-
Device Mounting: Surface
-
Local Signalling: status LED green per phase normal operation || status LED red per phase fault
-
Device Short Name: EMA
-
Enclosure Material: Gray painted sheet steel
-
Provided Equipment: alarm enable/disable switch || surge counter || dry contacts
-
Wiring Configuration: 4-wire
-
Connections - Terminals: lugs AWG 10...AWG 2 copper 4 N.m
-
Short-Circuit Protection: 200 kA
-
Nema Degree Of Protection: NEMA 1
-
Nominal Discharge Current: 20 kA
-
Product Or Component Type: surge protection device
-
Rated Operational Voltage: 480Y/277 V AC
-
Maximum Continuous Operating Voltage: 320 V
-
Type: EMA
-
Mounting: Panel
-
Volts AC: 277, 480Y
-
Interrupt Rating AC: 120 kA
-
Application: Surge Protection
-
Connection Type: Terminal
-
Material: Steel
-
Max. Surge Current: 120kA
-
Protection Type: Type 1 Surge Protection
-
Type of Indicators: LED Light
-
Voltage Configuration: 277/480 @ 3-Phase V AC
-
Series: EMA
-
Amperage: 120kA
-
Voltage: 480Y/277VAC
-
Mounting Type: Surface
-
Wire Gauge: AWG 10 to AWG 2 Copper
-
Temperature Rating: 149°F (65°C)
-
Body Material: Steel
-
Number Of Wires: 4
