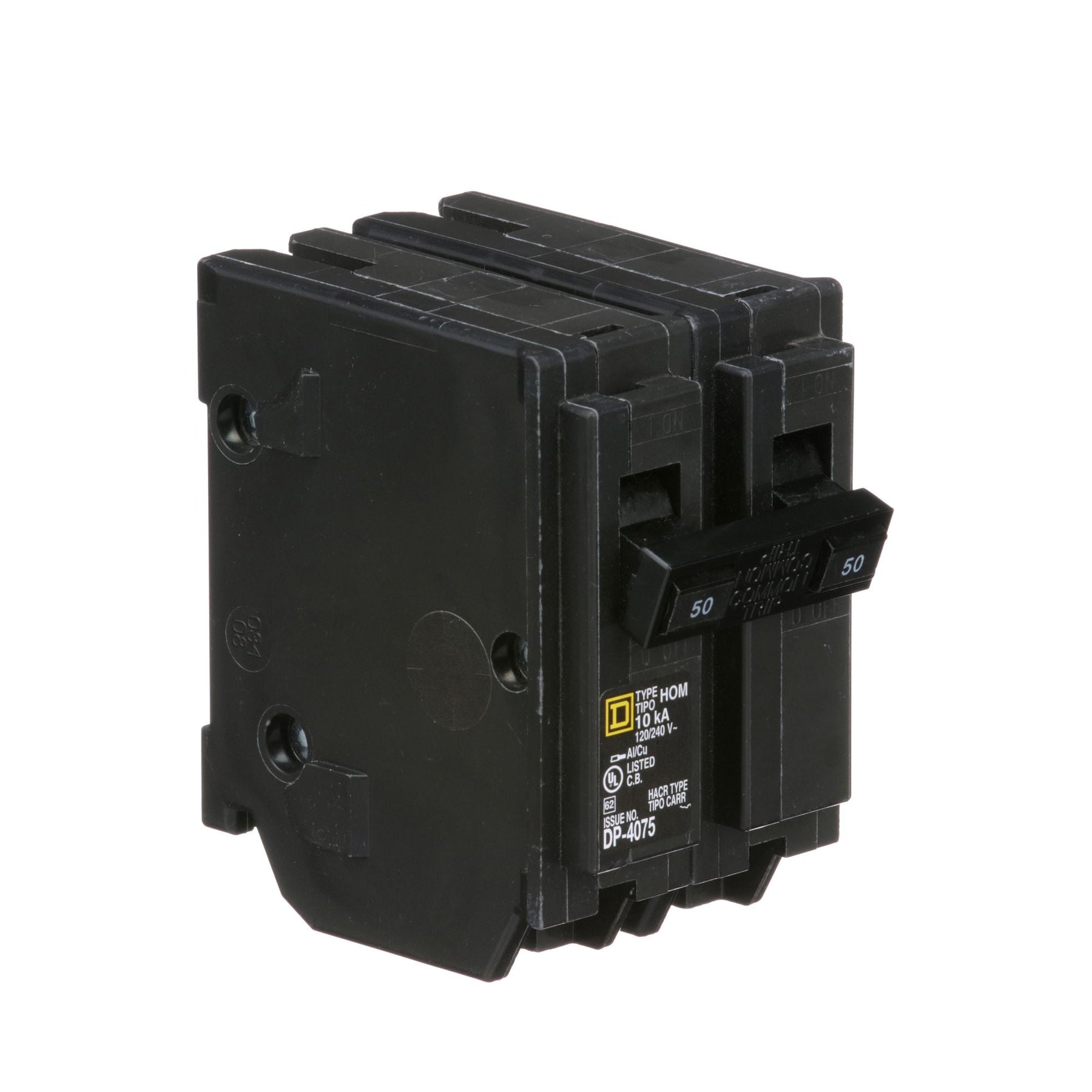

Square D SQDHOM250 Circuit Breaker 50A 2 Pole 240V

Product Description

The SQUARE D SQDHOM250 is a plug-in circuit breaker designed for use in Homeline load centers and panels. Rated at 50 amps and 240 volts across a 2-pole configuration, this breaker provides overcurrent protection for 240-volt branch circuits in residential electrical systems. It interrupts fault current to protect wiring and connected equipment from damage caused by overloads and short circuits. Licensed electricians typically specify this breaker for circuits serving high-draw appliances such as electric dryers, water heaters, and HVAC equipment.

This breaker is intended for installation in Square D Homeline residential load centers. The plug-in design allows for straightforward installation without the need for additional hardware or adapters. It is well suited for new construction wiring as well as panel upgrades and service replacements in single-family and multi-unit residential settings where a 50-amp, 2-pole, 240-volt overcurrent device is required.

Key Features

• 50-amp continuous current rating for high-draw 240-volt branch circuits
• 2-pole design provides overcurrent protection on both legs of a 240-volt circuit
• Plug-in installation compatible with Homeline load center bus bars
• Provides overload and short-circuit protection per NEC requirements
• Compact form factor fits standard Homeline panel slot spacing

Compatibility

Designed as an OEM-style plug-in replacement circuit breaker for Square D Homeline residential load centers and panelboards accepting 2-pole plug-in breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the main breaker and verify the bus is de-energized before installing or removing a circuit breaker. Ensure the panel interior is free of debris and that the breaker snaps fully onto the bus bar before restoring power. Do not install this breaker in load centers other than those for which it is rated.

Technical Specifications

• Amperage: 50 amps
• Voltage: 240 volts
• Number of Poles: 2
• Mounting Type: Plug-In
• Series: Homeline

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SQDHOM250
