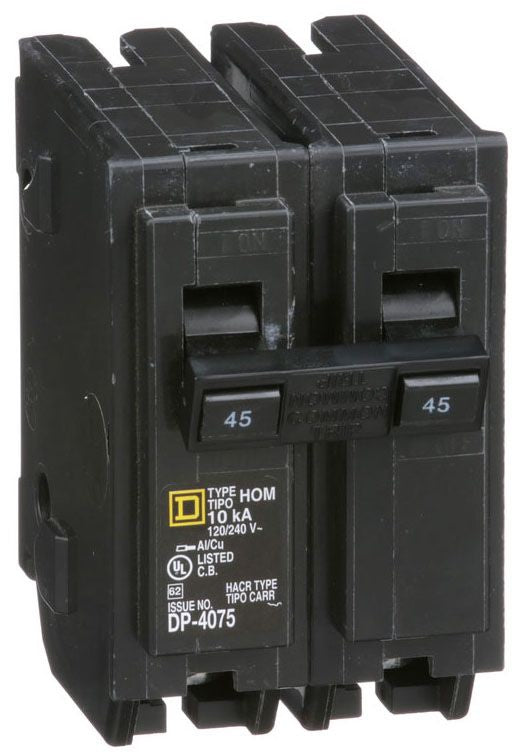

Square D SQDHOM245 Homeline Miniature Circuit Breaker 45 A

Product Description

The SQUARE D SQDHOM245 is a Homeline Miniature Circuit Breaker designed for electrical safety. This standard, 2-pole, 1-phase thermal magnetic circuit breaker operates at 120/240 V AC with a 45 A amperage and 50/60 Hz frequency. It offers a 10 kA interrupt rating and provides essential overload and short circuit protection for electrical systems. It features a plug-on mount for SE Homeline Loadcenters and accommodates 8 to 2 AWG wire with terminal screw connections.

• Easy plug-on design for SE Homeline Loadcenters.
• Provides overload and short circuit protection.
• UL Listed for safety and compliance.

Product Highlights

Standard 45 A thermal magnetic circuit breaker with plug-on mount, offering overload and short circuit protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SQDHOM245

Technical Specifications

• Input Voltage: 120/240 V AC
• Amperage: 45 A
• Frequency: 50/60 Hz
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic
• Poles: 2
• Phase: 1 ph
• Terminal Type: Terminal Screw
• Wire Size: 8 to 2 AWG
• Mounting Type: Plug-On Mount
• Operating Temperature: 104 deg F
• Type: Standard
• Certifications: CSA Certified, RoHS Compliant, UL Listed, HACR Rated
