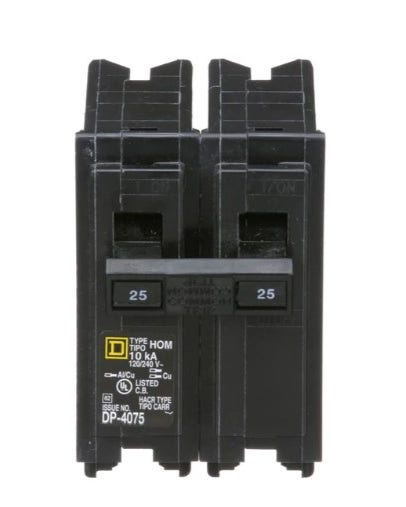

Square D SQDHOM225 25A 2-pole Plug-on Circuit Breaker

Product Description

The SQUARE D SQDHOM225 is a double-pole plug-on circuit breaker rated for 25 amps at 120/240 volts with a 10,000-amp (10kA) interrupt capacity. It is part of the Homeline (HOM) series, designed for use in residential load centers and panels. This breaker provides overcurrent and short-circuit protection for branch circuits. Installation is handled by licensed electricians during new construction, panel upgrades, or circuit additions where a compact, plug-on form factor is required. It is sold in a box of five units.

This breaker is suited for residential electrical distribution panels that accept Homeline series plug-on breakers. Typical applications include protecting 240-volt branch circuits such as dryer circuits, HVAC equipment feeds, water heater circuits, and similar double-pole loads in residential and light commercial settings. The plug-on design allows fast, tool-free seating into compatible load centers without bus lugs or additional hardware.

Key Features

• 25-amp, 2-pole configuration for 240-volt branch circuit protection
• 10kA interrupt rating handles high fault-current events without breaker failure
• Plug-on design seats directly into Homeline series load centers
• Sold as a box of 5 breakers for stocking or multi-circuit jobs
• 120/240-volt rating covers standard split-phase residential panel voltage

Compatibility

Designed as an OEM-style plug-on replacement for use in Homeline series residential and light commercial load centers that accept HOM-style double-pole breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel at the utility disconnect and verify absence of voltage before handling any breakers or bus connections. Confirm the load center accepts Homeline series plug-on breakers before installation. Do not exceed the breaker ampere rating for connected circuit conductors.

Technical Specifications

• Ampere Rating: 25 amps
• Poles: 2
• Voltage Rating: 120/240 volts
• Interrupt Rating: 10kA
• Series: Homeline (HOM)
• Mount Type: Plug-On
• Quantity per Box: 5

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SQDHOM225
