Square D SN1200 Safety Switch Accessory, Heavy Duty, Solid Neutral Assembly Kit, Powerpact M/P, 250A to 1200A

Product Description

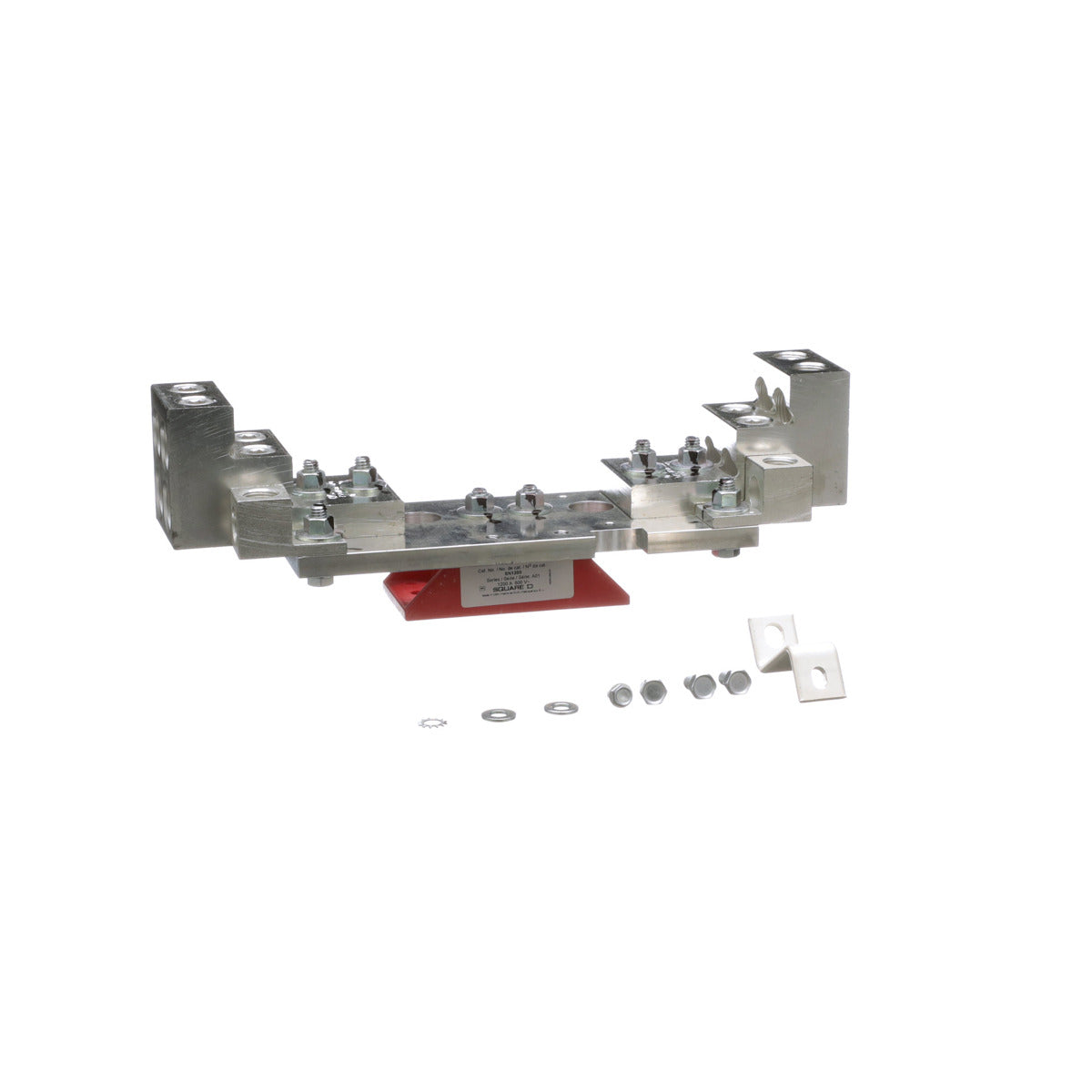

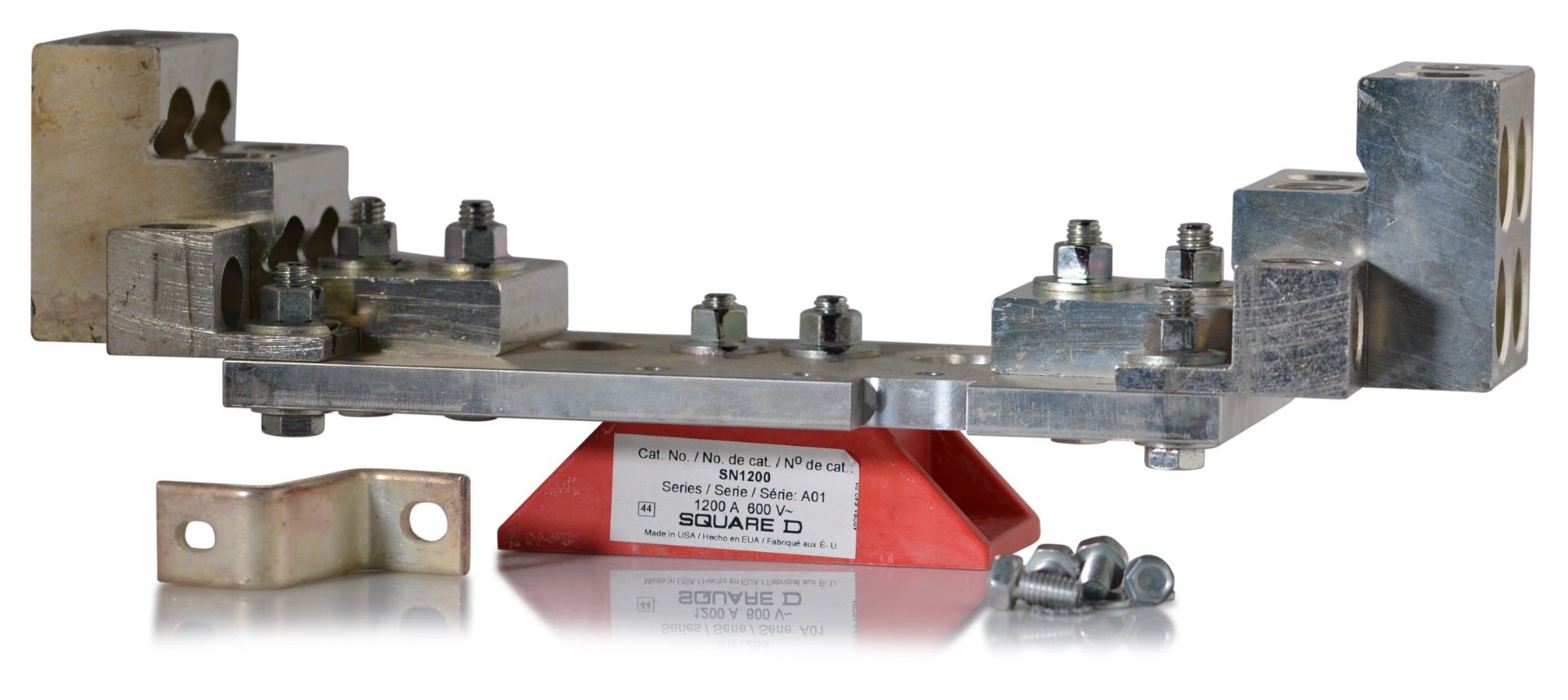

The SQUARE D SN1200 is a safety switch accessory, heavy-duty solid neutral assembly kit designed for Powerpact M/P circuit breakers. This assembly can be used in either the PowerPacT M, 800A enclosure or the PowerPacT P, 1200A enclosure. It is insulated and groundable, featuring four terminals in and four terminals out, with two additional grounding terminals. Each terminal accepts 3/0 AWG to 500kcmil.

• Insulated and groundable neutral assembly
• Compatible with Powerpact M and P frame circuit breakers
• Complies with UL and CSA standards

Product Highlights

Solid neutral assembly kit for Powerpact M/P circuit breakers, featuring insulated and groundable design.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SN1200
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SN1200
• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: Mexico
• Made in USA: No
• RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423259590&lang=en-us
• UPC: 785901399742
• GTIN: 00785901399742
• Cross Reference Products: Eaton INK1200
• Type: Insulated Groundable Neutral, Solid
• Conductor Material: Aluminum/Copper
• Main Conductor Size: 4 AWG to 300 KCMIL (Aluminum/Copper)
• Used On: PG/PJL/PKL/PLL Circuit Breaker
• Branch Neutral Terminal Wire Size: 12 to 4 AWG (Aluminum), 14 to 4 AWG (Copper)
• Number of Branch Neutral Terminals: 12
• Series: PGL, PJL, PKL, PLL
• Amperage: 400-1200
• Poles: 3
• Mounting Type: Enclosure
• Wire Gauge: 4 AWG to 300 kcmil (Aluminum/Copper)
• For Use With: PGL, PJL, PKL, PLL
• Circuit Breaker Type: PG/PJL/PKL/PLL
• Body Material: Aluminum/Copper
• Mpn: SN1200
• Line Rated Current: 250-1200 A
• Tc Connection: AWG 3/0...500 kcmil
• Certifications: CSA,IEC,UL Listed
• Material: plastic metal
• Item model number: SN1200
• Item Package Quantity: 1
• Included Components: SN1200
• Batteries Included?: No
• Batteries Required?: No
