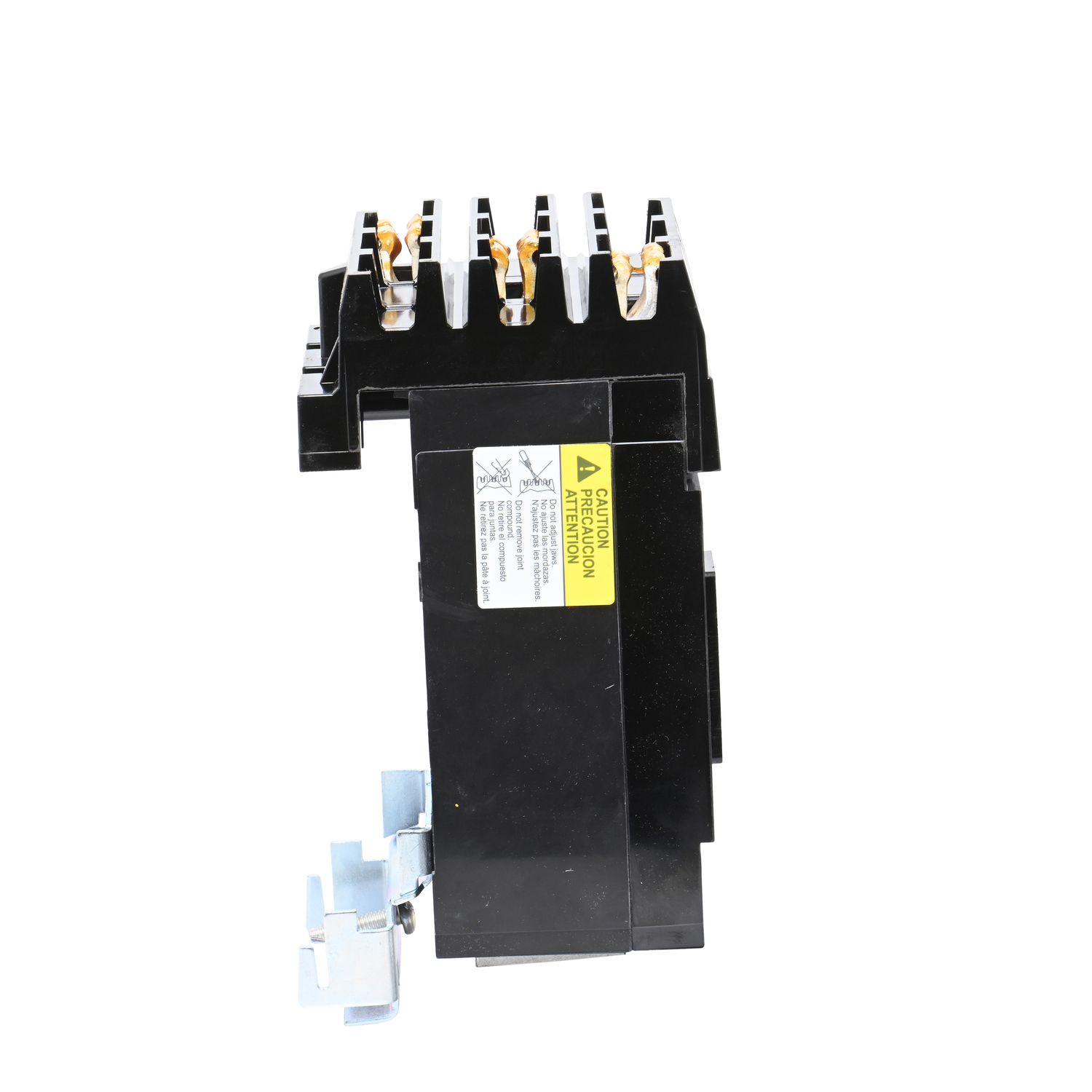

Square D SL250 3-pole 250 amp panelboard sub feed lug kit

Product Description

The Square D SL250 is a connection accessory for I-Line Panelboards. This plug-on subfeed lug kit is designed for I-Line panelboards and PowerPact J-Frame circuit breakers. It has an amperage rating of 250 amps and accepts (1) #4-300 kcmil Al/Cu. This product complies with UL standards.

• Connection accessory for I-Line Panelboards
• Plug-on subfeed lug kit for I-Line panelboards for PowerPact J-Frame circuit breakers
• Amperage rating of 250 amps

Product Highlights

The Square D SL250 subfeed lug kit provides a reliable connection for panelboards and circuit breakers, ensuring secure electrical connections.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SL250
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SL250
• Type: SL
• Brand: Square D
• Amperage: 250 Amp
• Certifications: CSA,UL
• Line Rated Current: 250-250 A
• Wire Size: 4 AWG to 300 KCMIL
• Used On: I-Line HCM/HCP/HCP Panelboard
• Range Of Product: I-Line
• Product Or Component Type: sub-feed lug
• Amps: 250 A
• Item: Circuit Breaker Lug
• Features: Mercury Free
• Standards: UL || CSA
• Application: panelboard HCM 1219 mm 813 mm || panelboard HCP 2184 mm 1067 mm
• Product Type: Circuit Breaker Lug
• Accessory Type: Circuit Breaker Lug
• Suitable For Use With: PowerPact HCM, HCP, HCP-SU, HCR-U Panelboard, FA, FD, HG, HJ, JJ, JL Molded Case Circuit Breaker, PowerPact® HCM, HCP, HCP-SU, HCR-U Panelboard, FA, FD, HG, HJ, JJ, JL Molded Case Circuit Breaker, PowerPact™ HCM, HCP, HCP-SU, HCR-U Panelboard, FA, FD, HG, HJ, JJ, JL Molded Case Circuit Breaker
• UNSPSC: 39121112
• Part Number: SL250
• Manufacturer: Square D
• Category: Circuit Breaker
• Item Subcategory: Lug Terminal Kit
• Family: I-Line
• MCM Size: 300
• Barrels: 1
• Metal Type: Aluminum
• Compatible Frames: LA,LH,LC,LI,LX,LE,MA,MH
• Conductor Range: 4 AWG to 300 kcmil Aluminum/Copper
• Manufacturer Name: Schneider Electric
• Material: Aluminum
• Mounting Style: I-Line
• Maximum Amperage: 250 A
• Number of Poles: 1
• ECCN: EAR99
