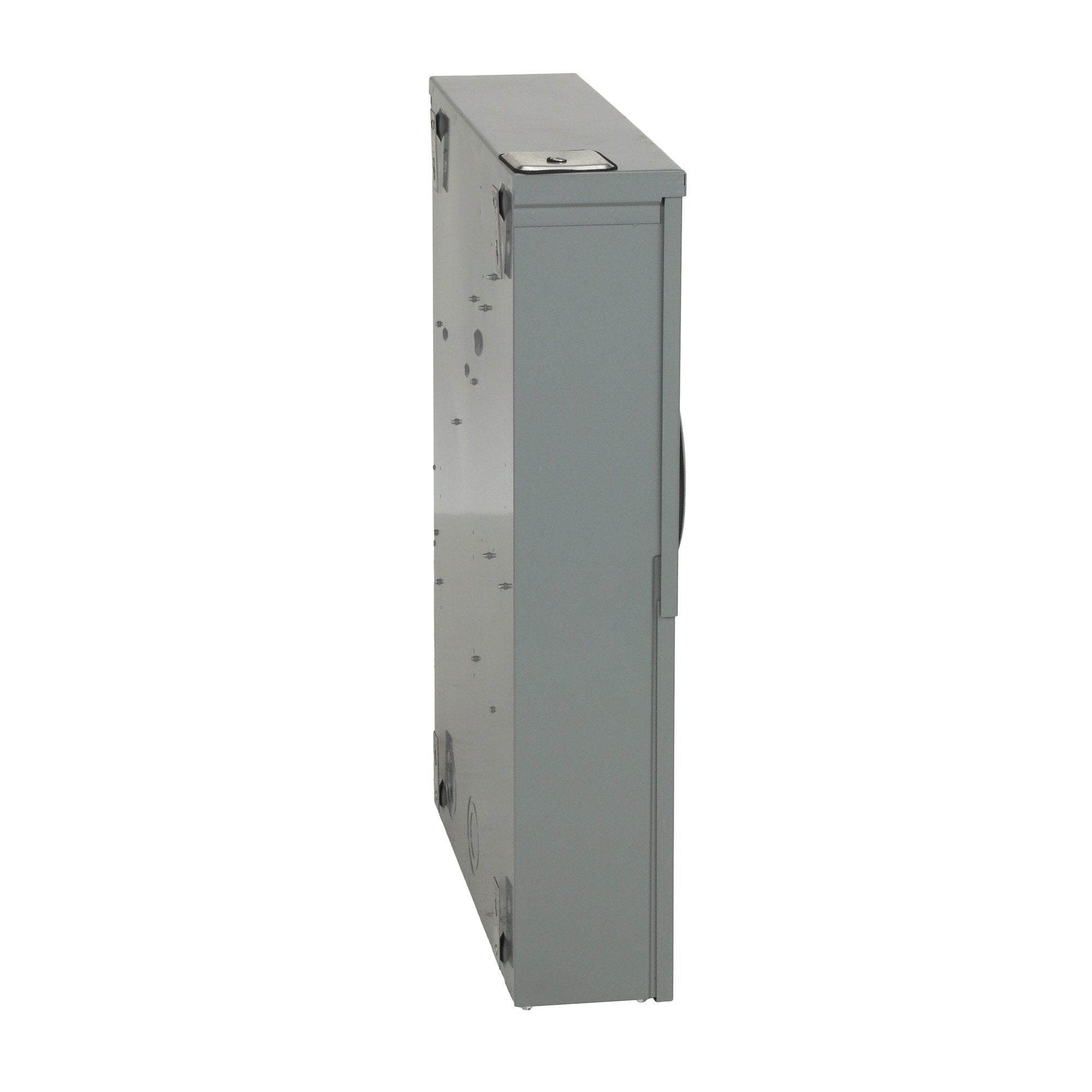

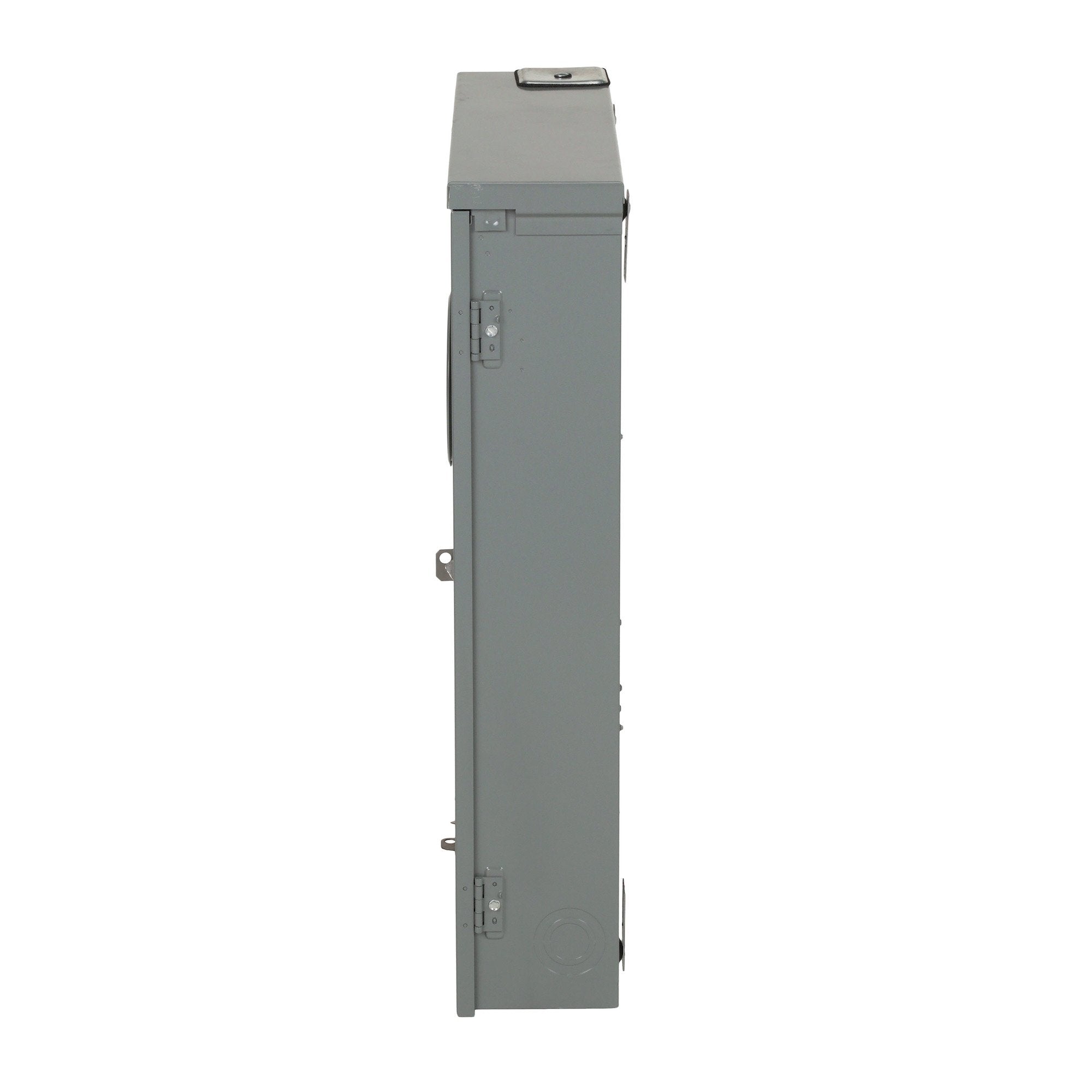

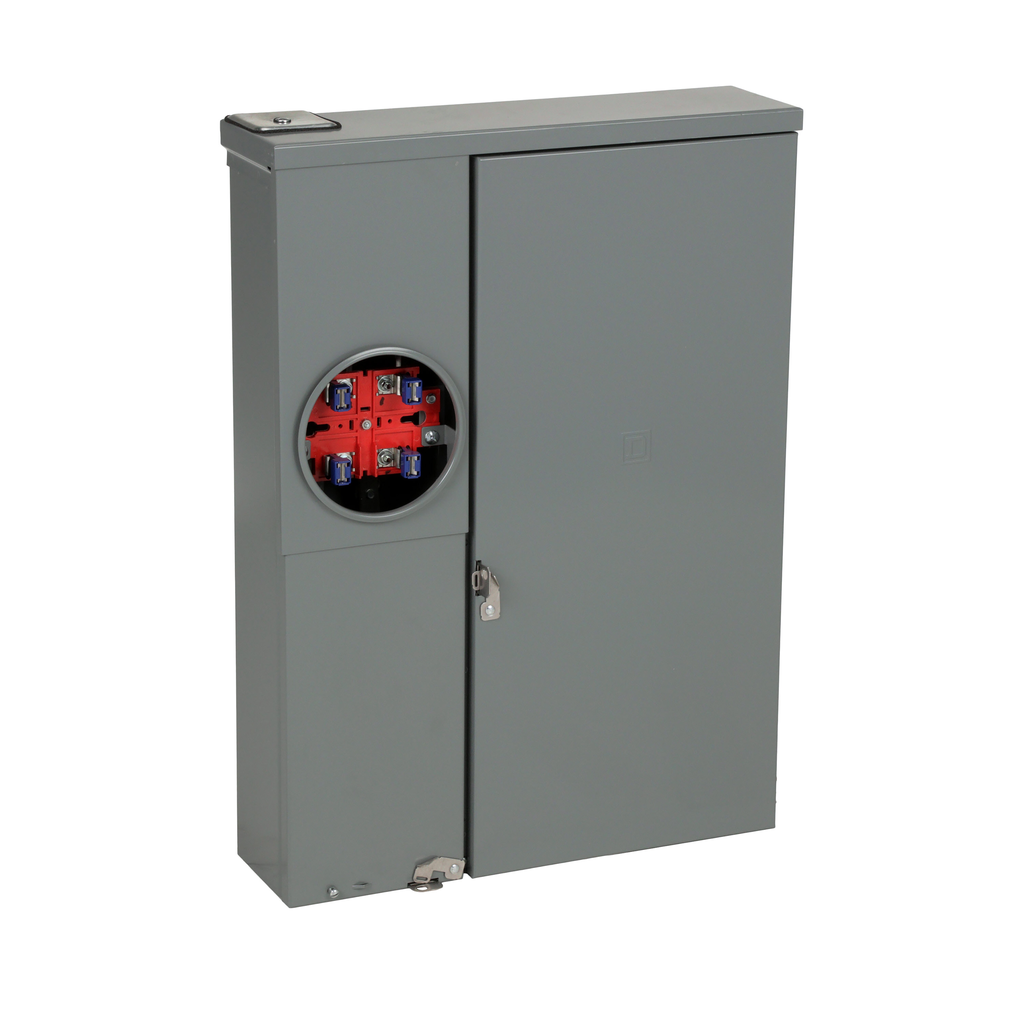

Square D SC816F200PS Solar Ready Meter Main 200A Ring OH/UG Surface

Product Description

The Square D SC816F200PS is a solar-ready meter main designed to serve as a combination service entrance device. It is suitable for overhead or underground applications and features a mounting style ideal for surface installation. This unit meets the Federal Specification W-P-115C as Type 1, Class 2, ensuring it is UL Listed for service equipment use. The interior can accommodate a single main service disconnect with feed-thru lugs, while the meter socket is designed without a bypass feature.

• 200 amp capacity for residential and commercial use
• Suitable for both overhead and underground installations
• Meets stringent UL and federal specifications

Product Highlights

The Square D SC816F200PS is designed for ease of installation and reliability, making it a preferred choice for electricians and contractors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: SC816F200PS
• Amperage: 200 A
• Height: 30.26 inches
• Width: 21.50 inches
• Depth: 6.3 inches
• Wire Size: AWG 4-250 kcmil line side; AWG 6-250 kcmil load side; AWG 14-AWG 2/0 service ground
• Number of Circuits: 16
• Number of Phases: 1 Phase
• Conductor Size: 4 AWG-250 kcmil
• Short Circuit Rating: 22 kA
