Product Description

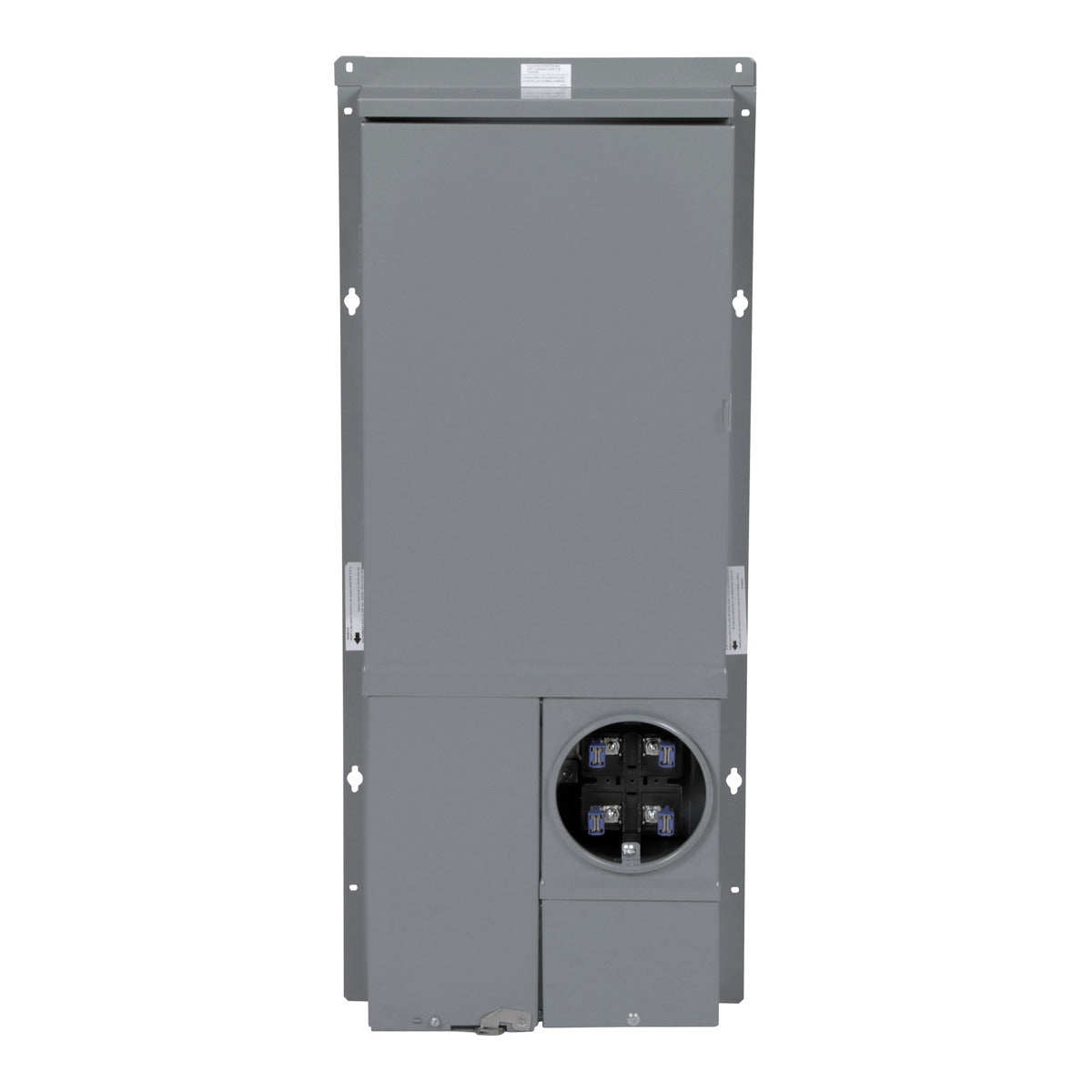

The Square D SC816F200PF solar ready meter main is a Homeline combination service entrance device (CSED) with a ringed socket. Rated at 200A, this outdoor, semi-flush mount device provides a maximum of 8 spaces and 16 circuits. It features no bypass and is UL listed. Designed for overhead or underground service applications.
- Rated for 200 Amp service
- Features 8 spaces and 16 circuits
- NEMA 3R enclosure for outdoor use
Product Highlights

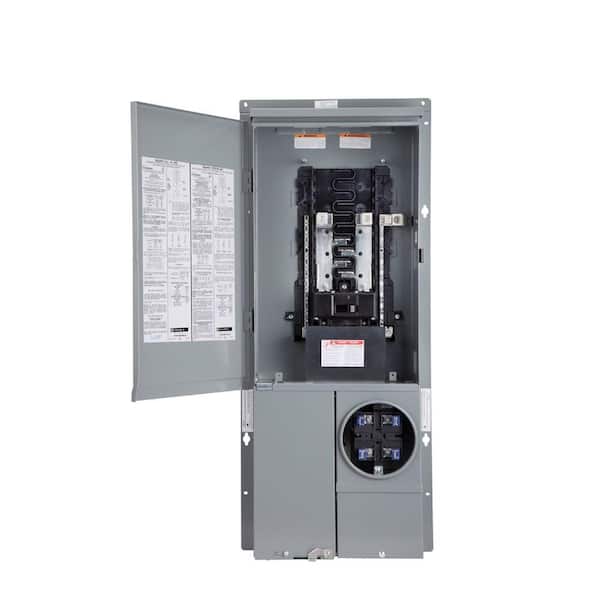

The Square D SC816F200PF meter main is ideal for residential service entrances, offering a combination of meter socket and load center in a single unit.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: SC816F200PF
-
Country of Origin: USA
Technical Specifications
-
Catalog Number: SC816F200PF
-
Type: Ringed;Meter Mains
-
Brand: Square D
-

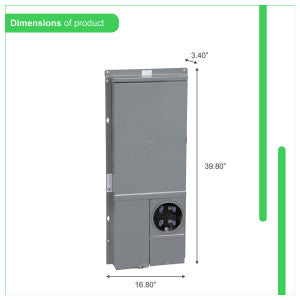

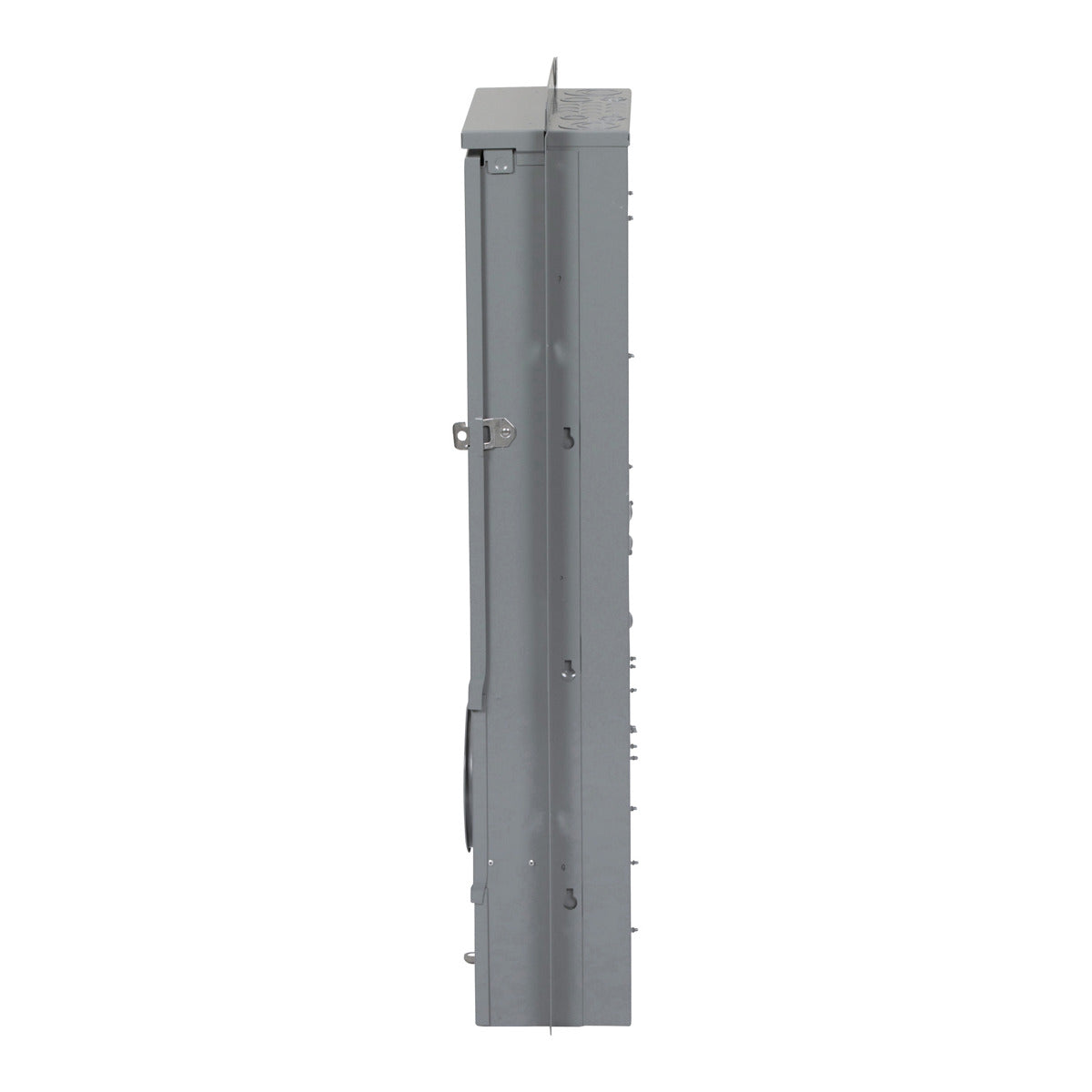

Depth: 3.4 Inch
-
Width: 16.80 in
-
Height: 39.8 Inch
-
Amperage: 200 Amp
-
Enclosure: NEMA 3R
-
Sub Brand: HOMELINE
-
Wire Size: AWG 4...250 kcmil aluminium/copper)line side;AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 6...250 kcmil aluminium/copper)load side
-
Cable Entry: OH-UG
-
Product UPC: 78590186174
-
12-Digit UPC: 785901861744
-
Mounting Type: Semi Flush (outdoor)
-
Certifications: UL E-6294
-
Conductor Size: 4 AWG-250 kcmil
-
Number of Phases: 1 Phase
-
Country of Origin: USA
-
Line Rated Current: 200 A
-
Number of Circuits: 16
-
Short Circuit Current: 22 kA
-
Manufacturer: Schneider Electric
-
Main Disconnect Type: 2 Pole 22 Kiloampere Interrupting Rating Circuit Breaker
-
Service Type: Overhead/Underground
-
Circuit Configuration: 1-Phase 3-Wire
-
Voltage Rating: 120/240 VAC
-
Current Rating: 200 Ampere
-
Bypass Switch Type: No
-
Number of Pole Spaces: 8
-
Hub Type: A-L
-
Knockouts: (4) 1/2 Inch, (3) 3/4 Inch, (2) (3/4 Inch, 1 Inch), (1) (1 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch) Concentric Knockout, (1) (1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch) Concentric Knockout
-
Mounting: Semi Flush
-
Application: Meter Mains
-
Line: Homeline
-
Socket Type: Ringed Socket
-
Max Spaces: 8
-
Max Circuits: 16
-
NEMA Rating: 3R
-
AWG Range: AWG 4...250 kcmil
-
Max. Tandem Circuits: 8
-
No. of Spaces: 8
-
Compatible with: Square D Homeline Plug-On Neutral breakers only
