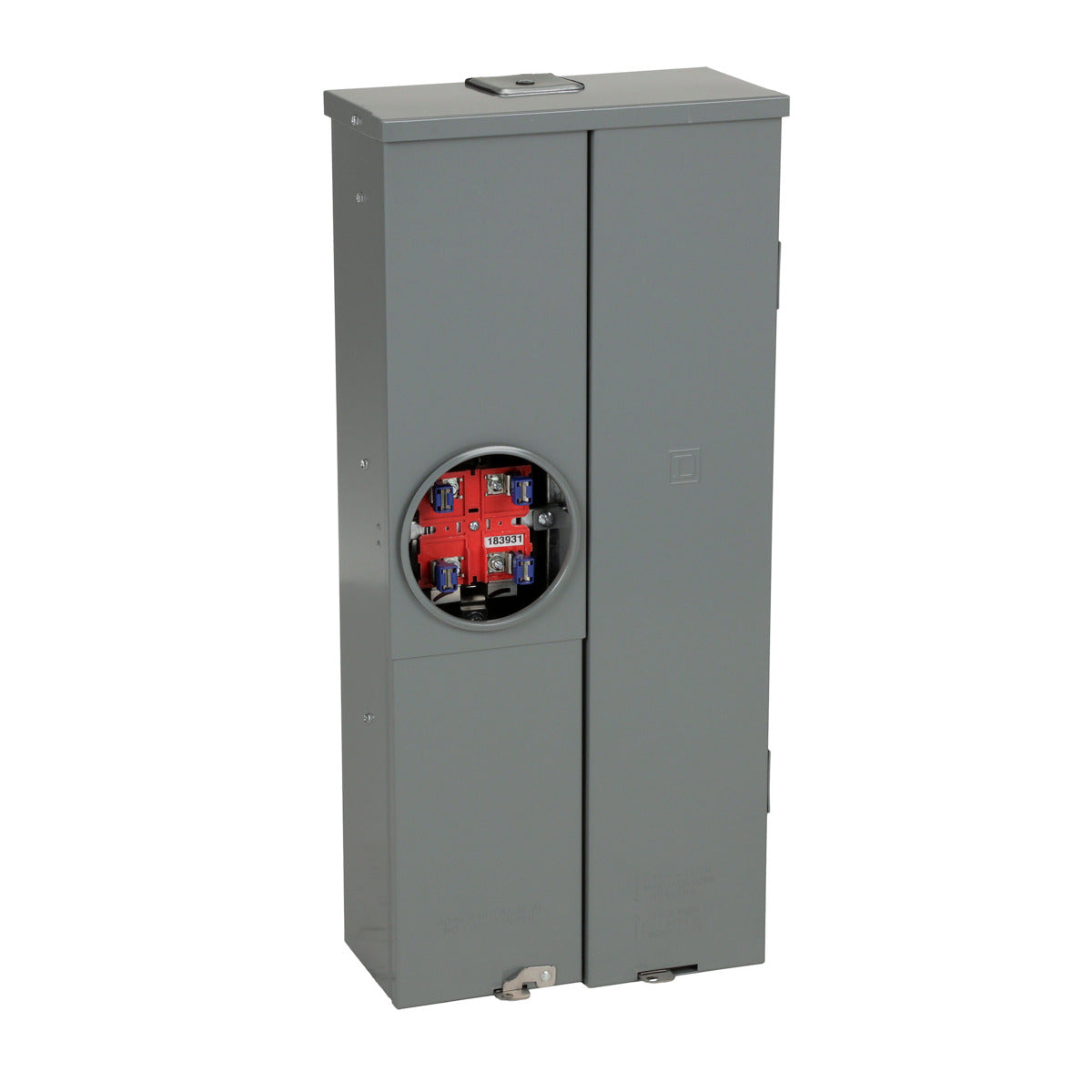

Square D SC816D150C SQD Meter Mains 150 Amp Single Position

Product Description

The Square D Homeline Meter Mains, model SC816D150C, is designed for effective power distribution in residential and light commercial applications. This service entrance device can be surface mounted or converted to semi-flush with the appropriate flange kit. It meets Federal Specification W-P-115c and is UL listed, ensuring safety and reliability for service equipment applications.

• Rated for 150 Amps and capable of handling multiple circuits.
• Features a no-bypass design for enhanced safety.
• Includes provisions for dual main service disconnects with feed-thru lugs exclusively on meter mains.

Product Highlights

This product is ideal for residential installations requiring a dependable meter socket with space for dual main disconnects.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: SC816D150C
• Amperage: 150 Amp
• Height: 34 inches
• Width: 14.95 inches
• Depth: 7.12 inches
• Material: Metal
• Wire Size: AWG 6 to 300 kcmil aluminum/copper line side, AWG 12 to AWG 1/0 aluminum/copper service ground, AWG 6 to 250 kcmil aluminum/copper load side
• Mounting Type: Surface
• Country of Origin: Mexico
• Warranty Length: 18 months
• Number of Spaces: 8
• Number of Circuits: 16
• Short Circuit Current: 10 kA
