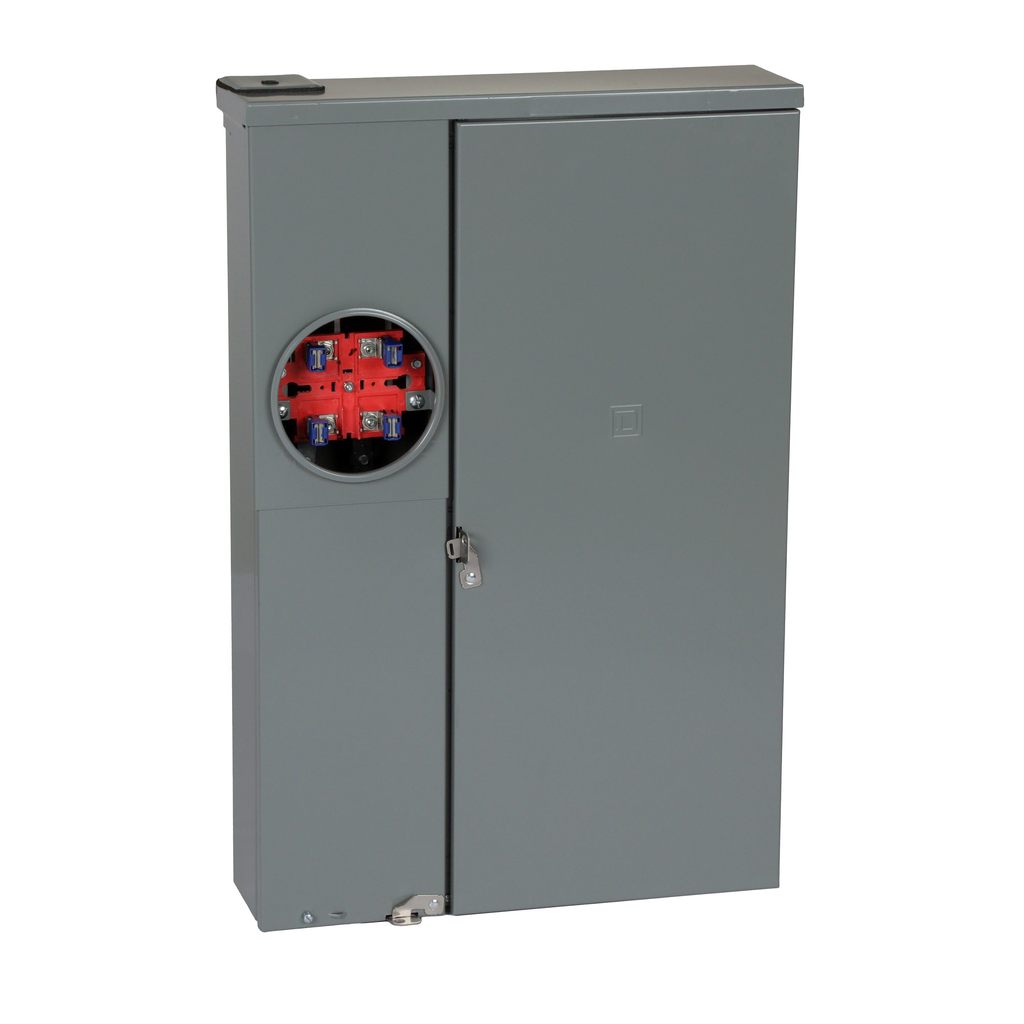

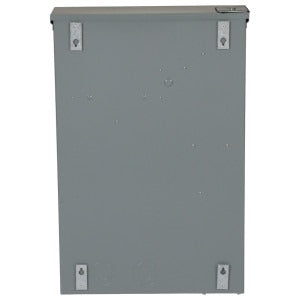

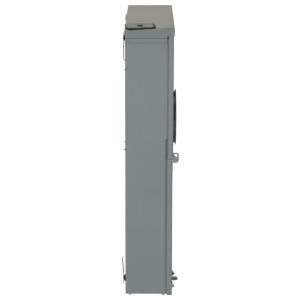

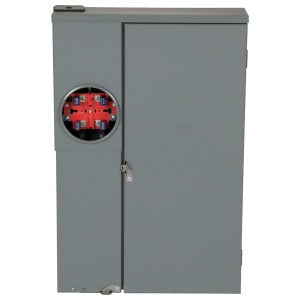

Square D SC3042M200PS Solar Ready Load Center All-In-One Ring OH/UG Surface 200A

Product Description

The Square D SC3042M200PS is a solar-ready load center designed for efficient power distribution. This all-in-one solution is well-suited for a wide range of electrical installations, including overhead and underground service. It provides metered service and features a main circuit breaker with 16 full branch spaces, allowing for up to 24 circuits when using tandem breakers. This load center is UL Listed and meets EUSERC standards.

• Suitable for overhead service with the addition of a tunnel kit.
• Short circuit current rating of twenty-two kA.
• Factory-installed service disconnects for ease of installation.

Product Highlights

The SC3042M200PS is an essential component for contractors and electricians looking for reliable electrical service equipment. Its surface mount design and capability for high amperage service make it ideal for both residential and commercial applications.

Product Information

Standard Information

• Brand: Square D
• Product ID: 1046489

Technical Specifications

• Amperage: 200 Amp
• Number of Circuits: 42
• Wire Size: AWG 4 to 250 kcmil (aluminum/copper) on the line side; AWG 14 to 2/0 (service ground)
• Dimensions: Depth - 6.3 inches, Width - 21.50 inches, Height - 32.69 inches
• Number of Spaces: 30
• Mounting Type: Surface
• Short Circuit Current: 22 kA
