Product Description

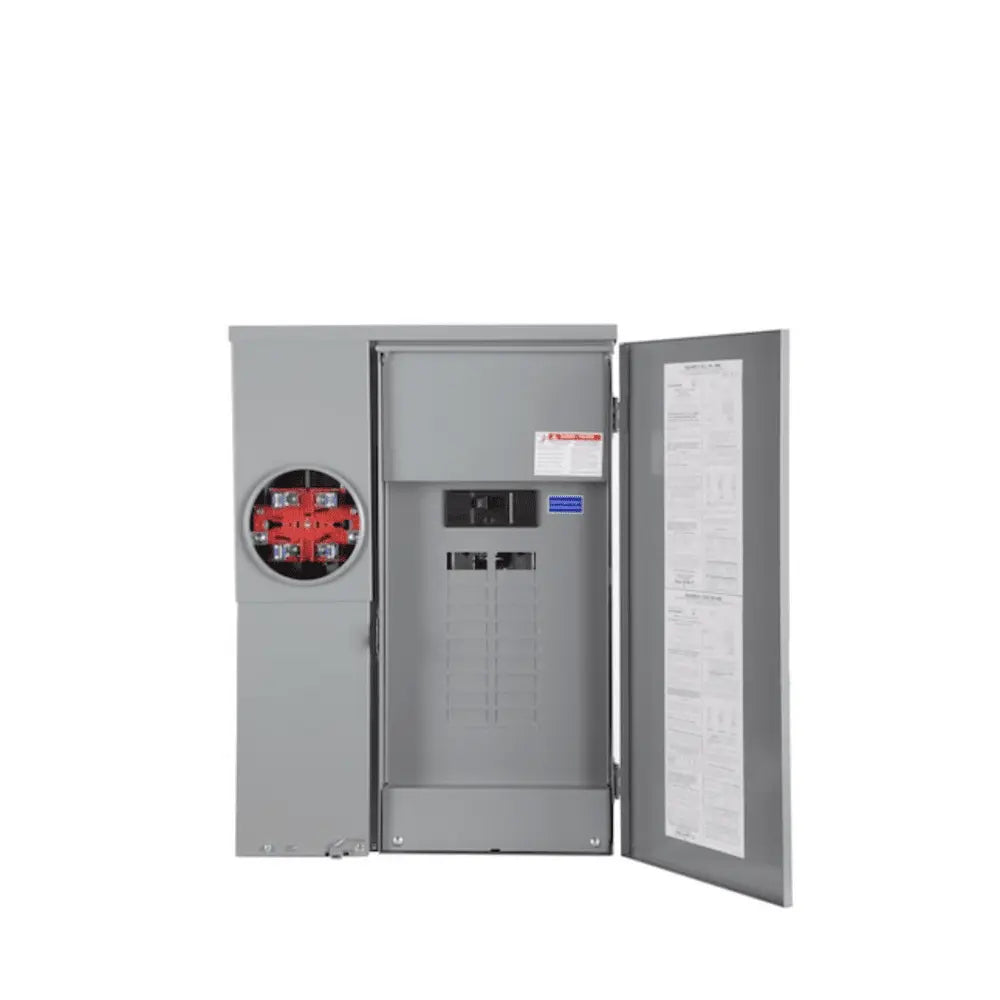

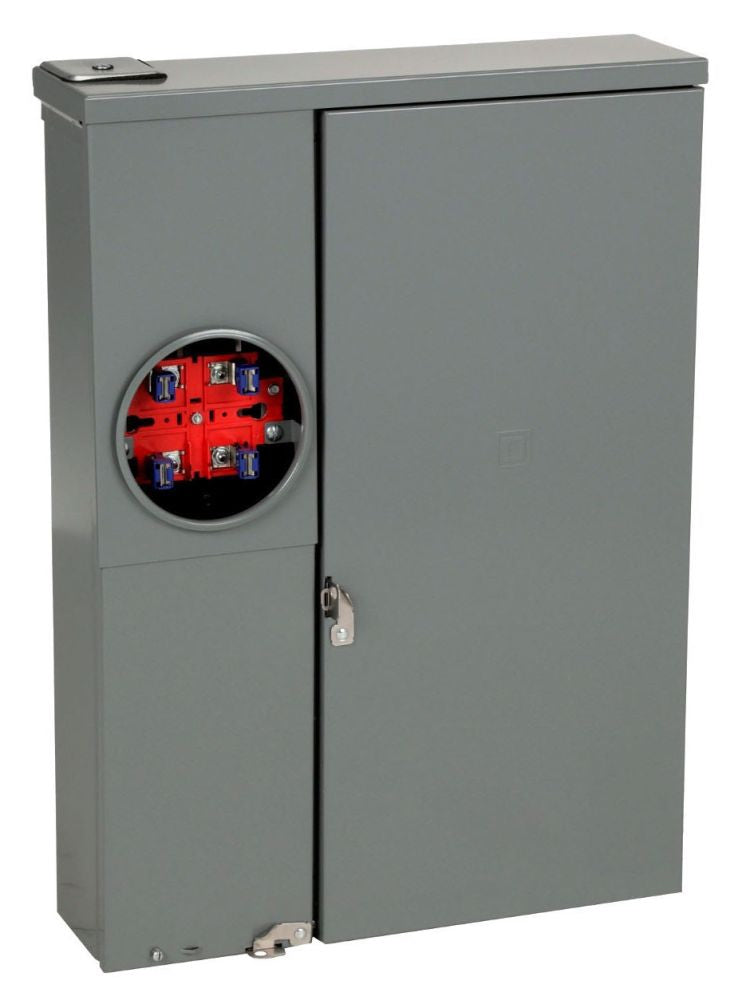

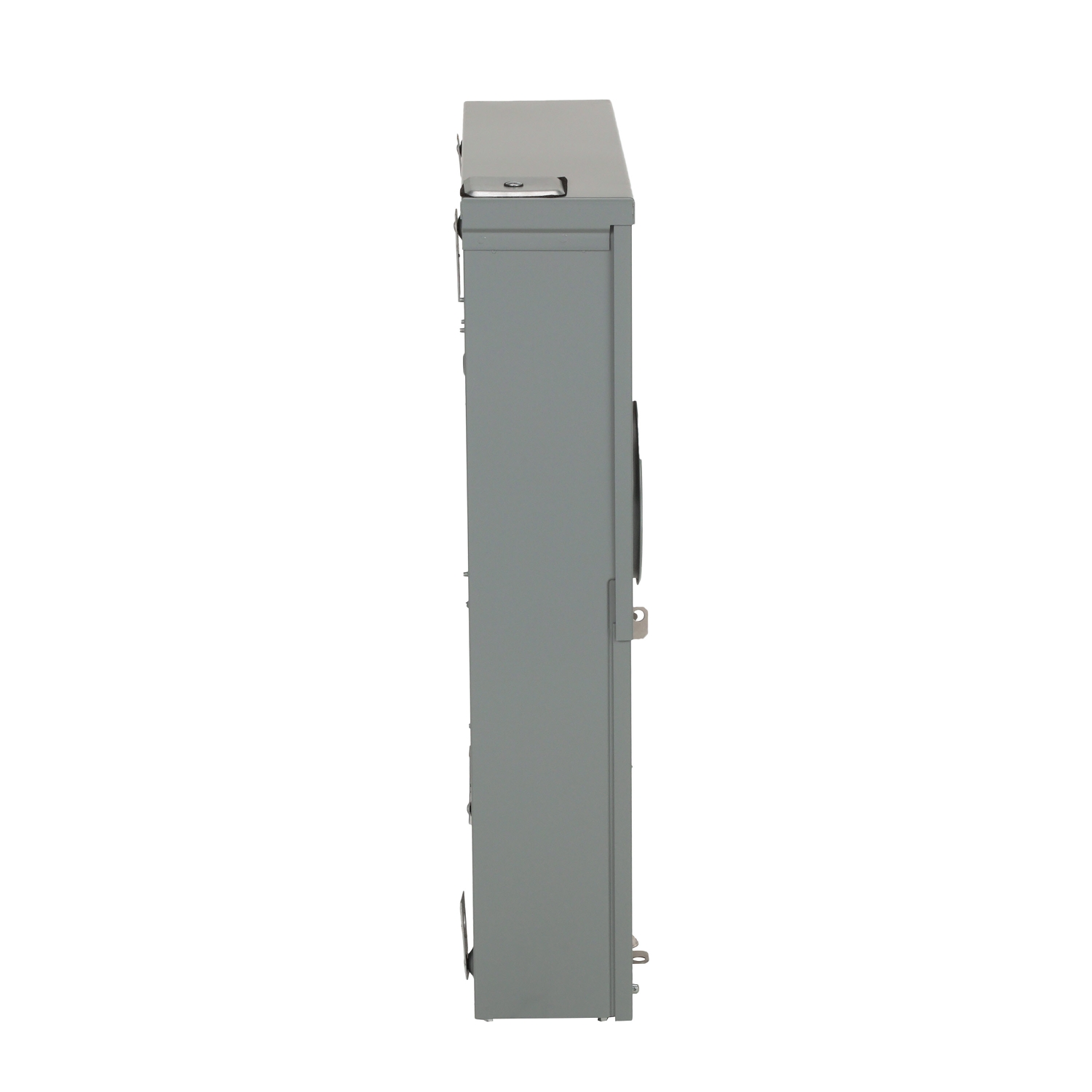

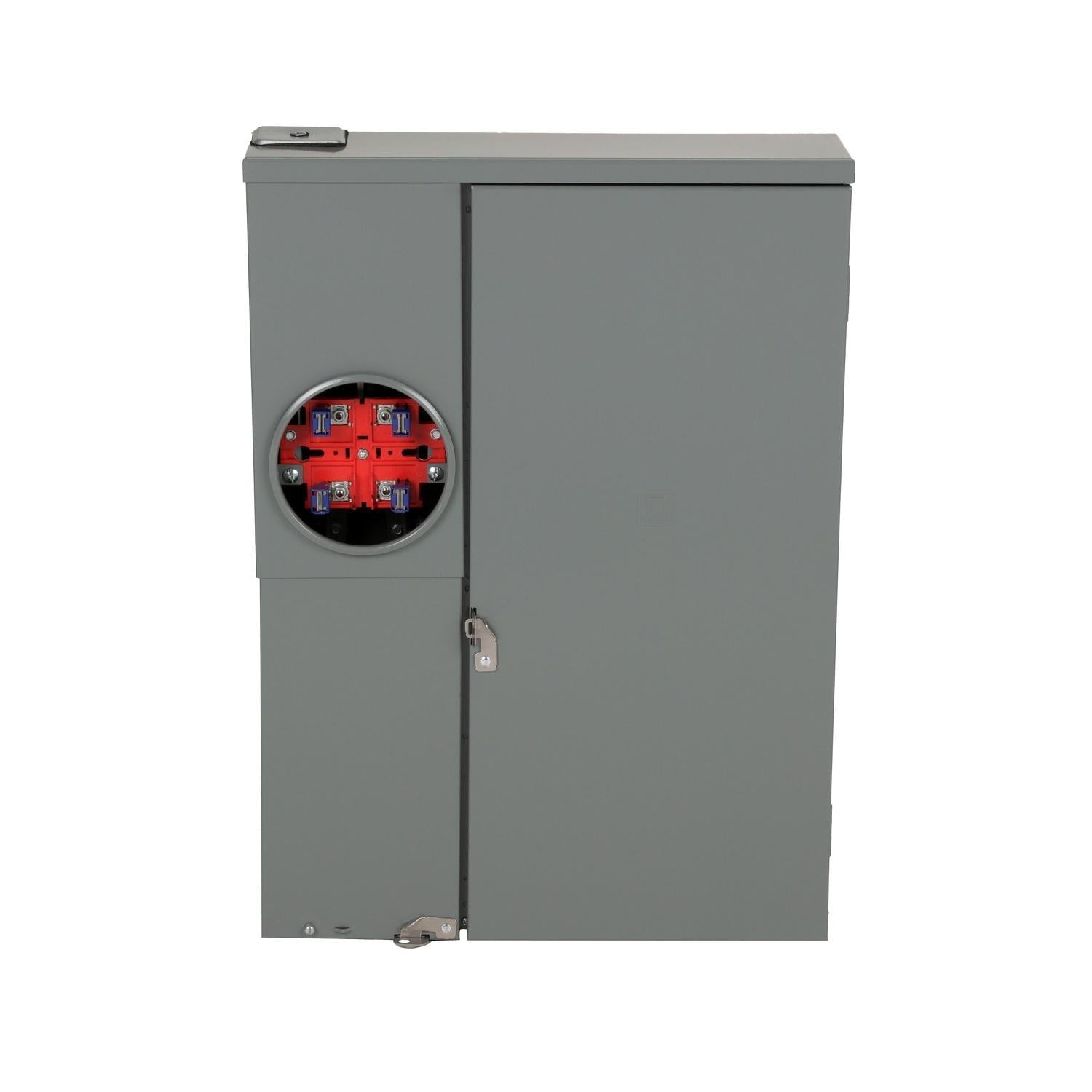

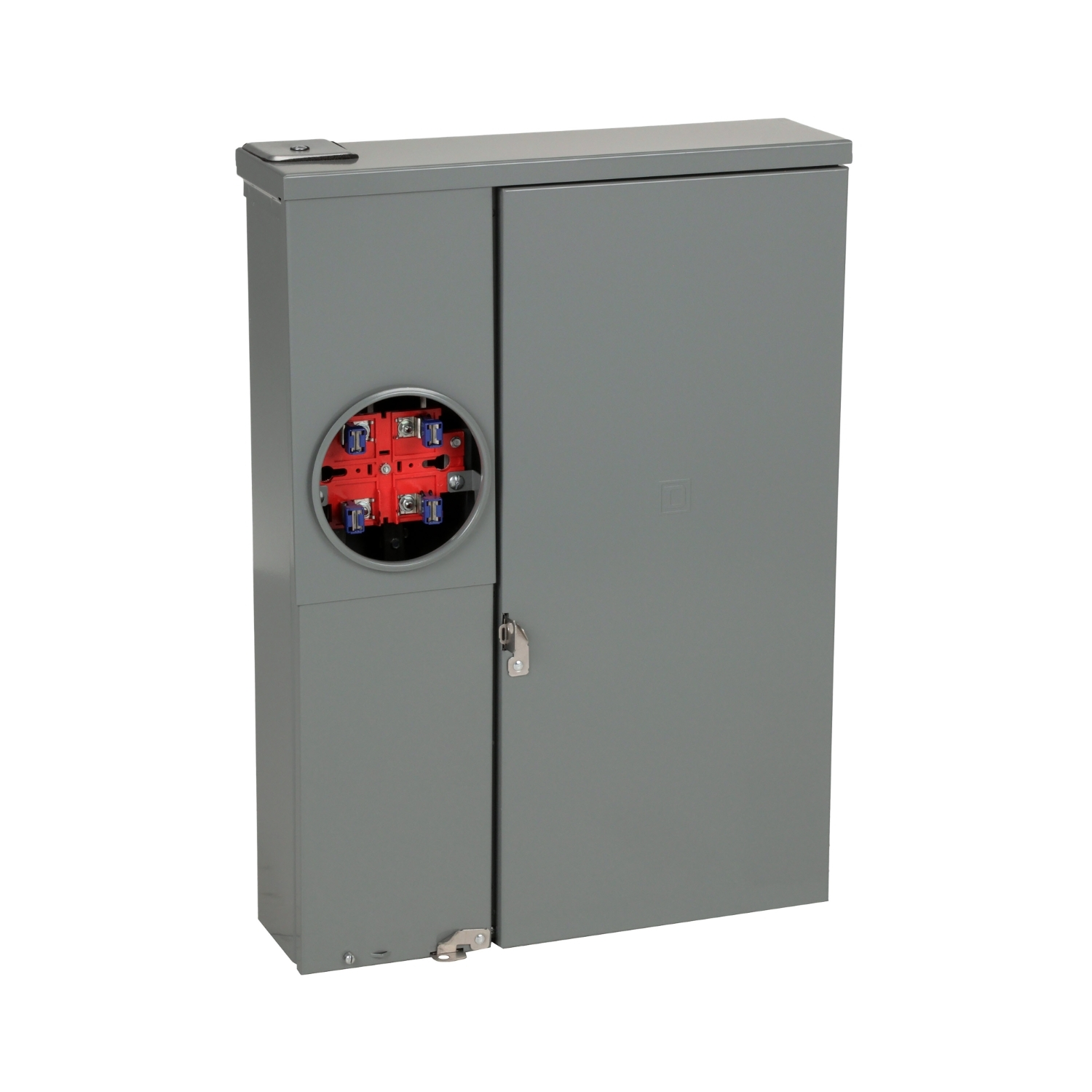

The Square D SC2040M200PS is an all-in-one combination service entrance device used in residential applications where local codes require service disconnects to be located outside. It includes a utility meter socket and factory-installed provisions for field installation of service disconnects. This meter main is surface mount and used with interior-mounted sub-feed load centers.
- Surface mount
- 20 spaces and 40 circuits
- Suitable for overhead/underground service type
Product Highlights
The Square D SC2040M200PS meter main is ideal for residential applications requiring an exterior service disconnect.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: SC2040M200PS
-
Country of Origin: Mexico
Technical Specifications
-
Type: 20-Circuit 40-Space All-In-One Field Installed Rainproof
-
Depth: 5.79 Inches
-
Phase: Single-Phase
-
Width: 21.5 Inches
-
Height: 30.3 Inches
-
Material: Steel
-
Mounting: Surface
-
Standard: UL Listed
-
Cable Entry: Overhead/underground
-
NEMA Rating: NEMA 3R
-
Jaw Quantity: 4-Jaw
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 200 Amperes
-
Number Of Meter Positions: 1
-
Wire Size: AWG 4...250 kcmil aluminium/copper)line side;AWG 14...AWG 2/0 aluminium/copper)service ground
-
Number of Spaces: 20
-
Number of Circuits: 40
-
Short Circuit Current: 22 kA
-
Line Rated Current: 200 A
-
Conductor Size: 4 AWG-250 kcmil
-
Main Disconnect Type: 2 Pole 22 Kiloampere Interrupting Rating Circuit Breaker
-
Service Type: Overhead/Underground
-
Circuit Configuration: 1-Phase 3-Wire
-
Current Rating: 200 Ampere
-
Number of Pole Spaces: 20
-
Hub Type: A-L
-
Knockouts: (3) 1/2 Inch, (9) 3/4 Inch, (4) (3/4 Inch, 1 Inch), (1) (1 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch) Concentric Knockout, (1) (1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch) Concentric Knockout
-
Enclosure: NEMA 3R
-
Approval: UL
-
Brand: Square D
-
MPN: SC2040M200PS
-
Model / MPN: SC2040M200PS
-
Product Type: ELECTRICAL_DISTRIBUTION_BOARD
-
Range Of Product: Homeline
-
Product Or Component Type: All-In-One
-
Meter Socket Type: ringed
-
Connections - Terminals: plug-on neutral
-
Branch Circuit Breaker Rated Current: 200 A
-
Service Feed Location: OH || UG
-
Bus Rated Current: 225.0 A
-
Electrical Connection: lugs, line side || lugs, service ground
-
Number Of Tandem Circuit Breakers: 20
-
Service Disconnect Rated Current: 200 A
-
Awg Gauge: AWG 4...250 kcmil (aluminium/copper) line side || AWG 14...AWG 2/0 (aluminium/copper) service ground
-
Product Compatibility: solar ready
-
Device Mounting: surface
-
Nema Degree Of Protection: NEMA 3R
-
Maximum Amperage Capacity: 200 A
-
Voltage Compatibility: 120/240V
-
Outdoor Rated: Yes
-
Surge Protection: No
-
Service Disconnect: Yes
-
Hub Provisions: Yes
-
Load Center Type: Main Breaker
-
Material Quality: Thermoplastic
-
Circuits: 40
-
Rated Current: 225A
-
AWG Range: AWG 4...250 kcmil
-
Max. Tandem Circuits: 20
-
Hub Size: A
-
Terminal Type: Line/Service Ground Lug
-
Mounting Style: Panel, Surface
-
Maximum Amperage: 200 A
-
Number of Phases: 1
-
Suitable For: Wall
-
Current Type: AC
-
Voltage: 120/240
-
Model: SC2040M200PS
-
Features: Waterproof
-
Number of Poles: 2
-
Box Shape: Square
-
Country of Origin: US
-
Manufacturer: Schneider Electric (Home Improvement)
-
Number of Items: 1.0
