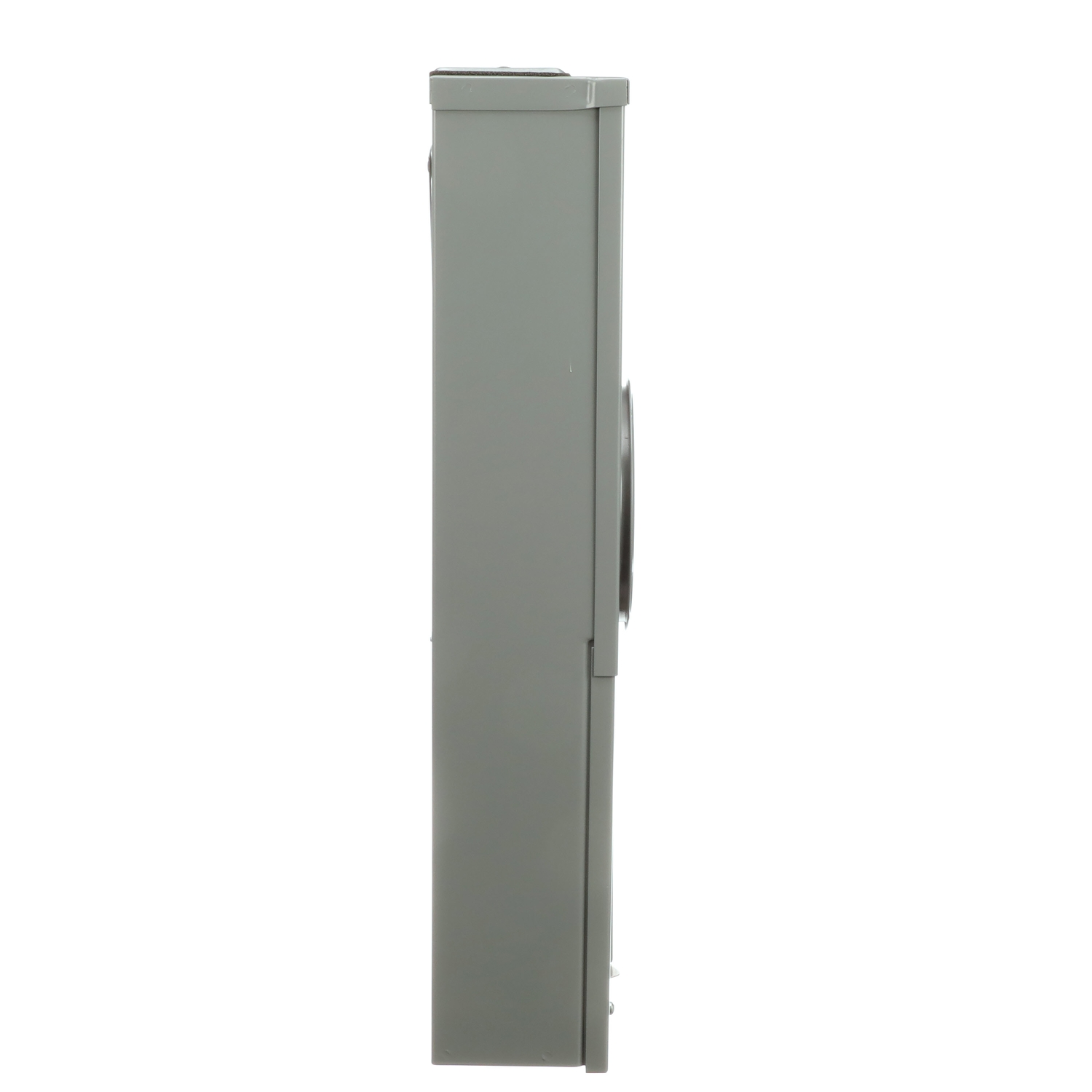

Square D SC1624M100S Meter Main All-In-One Ring Type OH/UG 100A Surface

Product Description

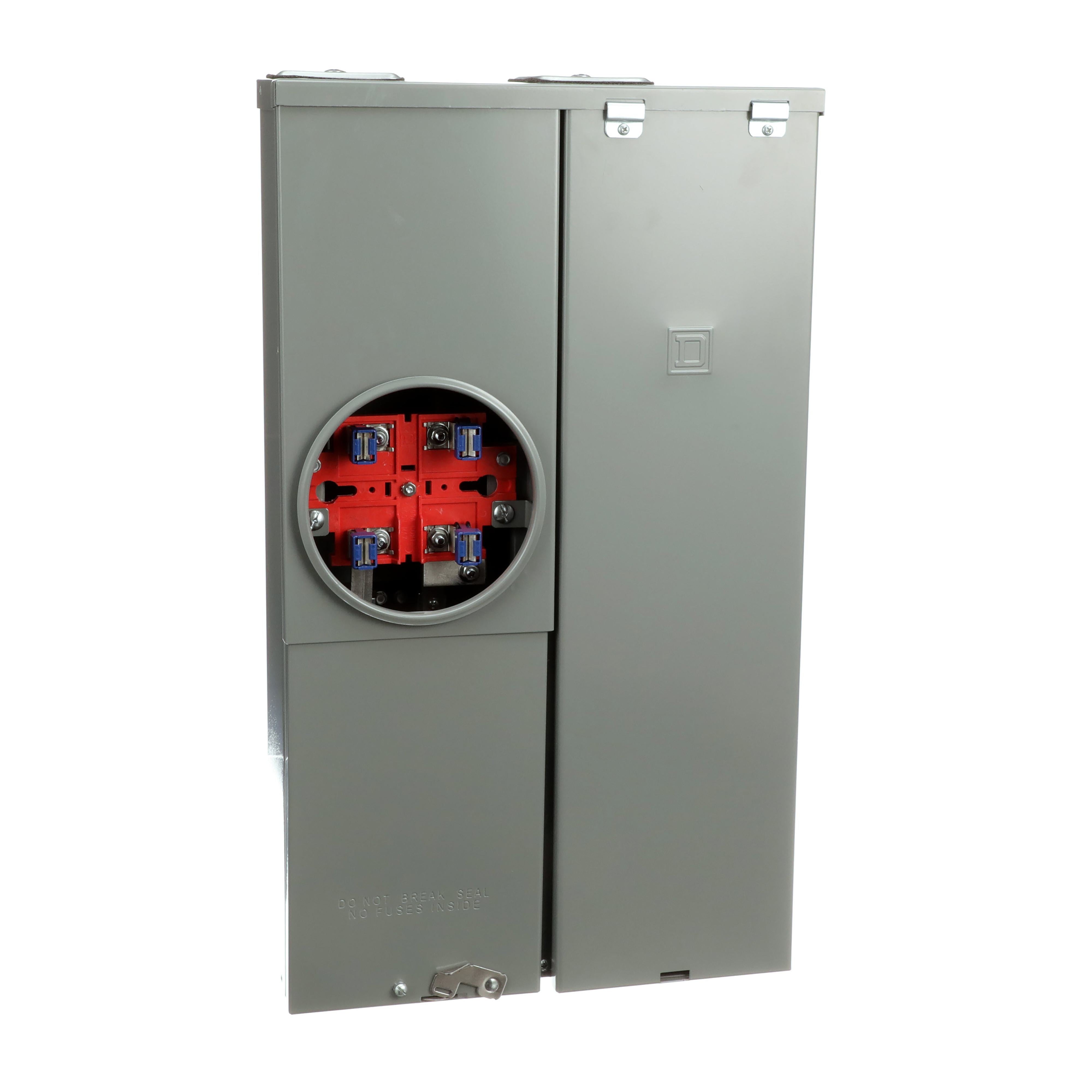

The Square D SC1624M100S surface mount CSED provides metered service, a main circuit breaker, and 16 full branch spaces up to 24 circuits using tandems. This all-in-one device is UL Listed and suitable for use as service equipment. It has a rated current of 100A and a short-circuit current rating of 10kA. Designed for easy installation with overhead or underground feed.

• Factory installed blade guides ensure proper alignment of meter blades.
• Accepts the plug-on HOMELINE URGEBREAKER Secondary Surge Arrester.
• Supplied with 100% branch neutrals; all unused terminals may be used for equipment grounding wires.

Product Highlights

The SC1624M100S is a compact, surface-mounted solution for metered service with a 100A main breaker and 24 circuits.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SC1624M100S
• Country of Origin: Mexico

Technical Specifications

• Type: 16-Space 24-Circuit All-In-One Field Installed Rainproof
• Brand: Square D
• Depth: 5.2 Inch
• Width: 14.77 in
• Height: 26-1/2 Inch
• Amperage: 100 Amp
• Sub Brand: HOMELINE
• Wire Size: AWG 6...AWG 2/0 aluminium)line side;AWG 6...AWG 2/0 copper)line side;AWG 6...AWG 2/0 aluminium)service ground;AWG 6...AWG 2/0 copper)service ground
• Cable Entry: OH-UG
• Product UPC: 78590130881
• 12-Digit UPC: 785901308812
• Mounting Type: Surface
• Conductor Size: 6-2/0 AWG
• Number of Spaces: 16
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Country of Origin: Mexico
• Line Rated Current: 100 A
• Number of Circuits: 24
• Short Circuit Current: 10 kA
• Main Disconnect Type: 100 Ampere Interrupting Rating Circuit Breaker
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase 3 Wire
• Voltage Rating: 120/240 VAC
• Current Rating: 100 Ampere
• Bypass Switch Type: No
• Number of Pole Spaces: 16
• Hub Type: A
• Enclosure: NEMA 3R
• Bus Rated Current: 125.0 A
• Electrical Connection: lugs, line side || lugs, service ground
• Number of Tandem Circuit Breakers: 8
• Service Disconnect Rated Current: 100 A
• Device Composition: service disconnect (factory installed)
• Device Mounting: surface
• RoHS Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1407020EN
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of SVHC: Yes
• China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: N/A
• Take Back: No
• EU RoHS Directive: Compliant with Exemptions
• Carbon Footprint_(kg_co2_eq,_total_life_cycle): 375.6150711979
• AC Adapter Current: 100 Amps
• Material: Aluminum
• Phase Type: Three Phase
• Manufacturer: Square D by Schneider Electric
• Part Number: SC1624M100S
• Item Model Number: SC1624M100S
• Voltage: 240 Volts
• Item Package Quantity: 1
• Number of Handles: 1
• Usage: Outdoor
• Included Components: Square D - SC1624M100S Homeline 100-Amp 16-Space 24-Circuit
• Batteries Included?: No
• Batteries Required?: No
• Maximum Amperage (A): 100
• Meter Socket Type: Ring
• Bypass Type: Please Select
• Model: SC1624M100S
• Hub Size: A
• Terminal Type: Line/Lug
• UNSPSC: 39121102
• UPC: 00785901308812
