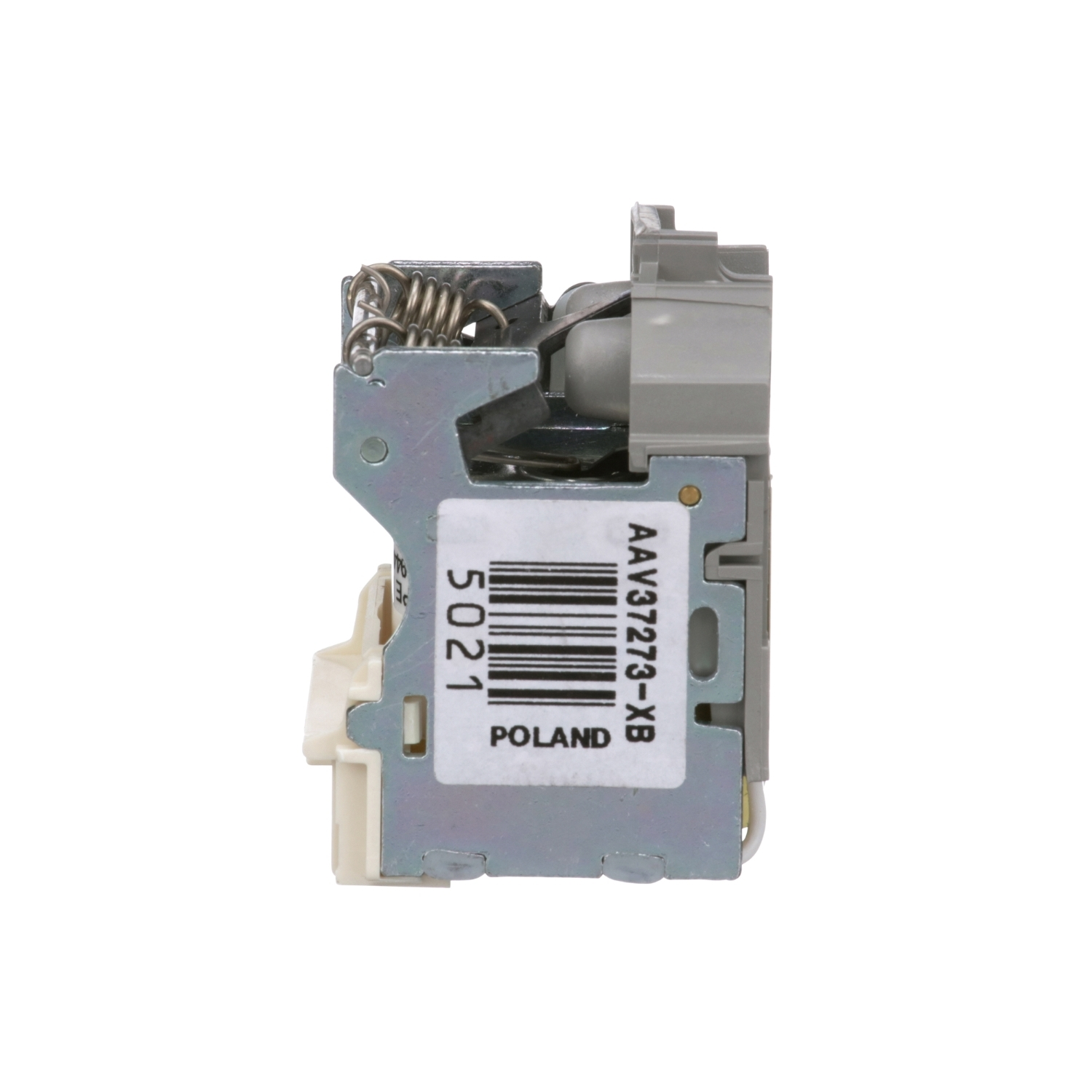

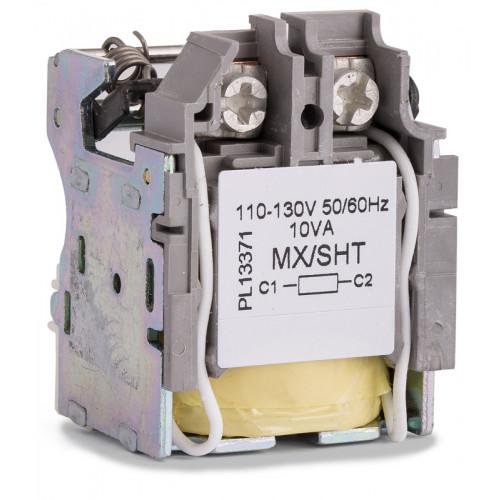

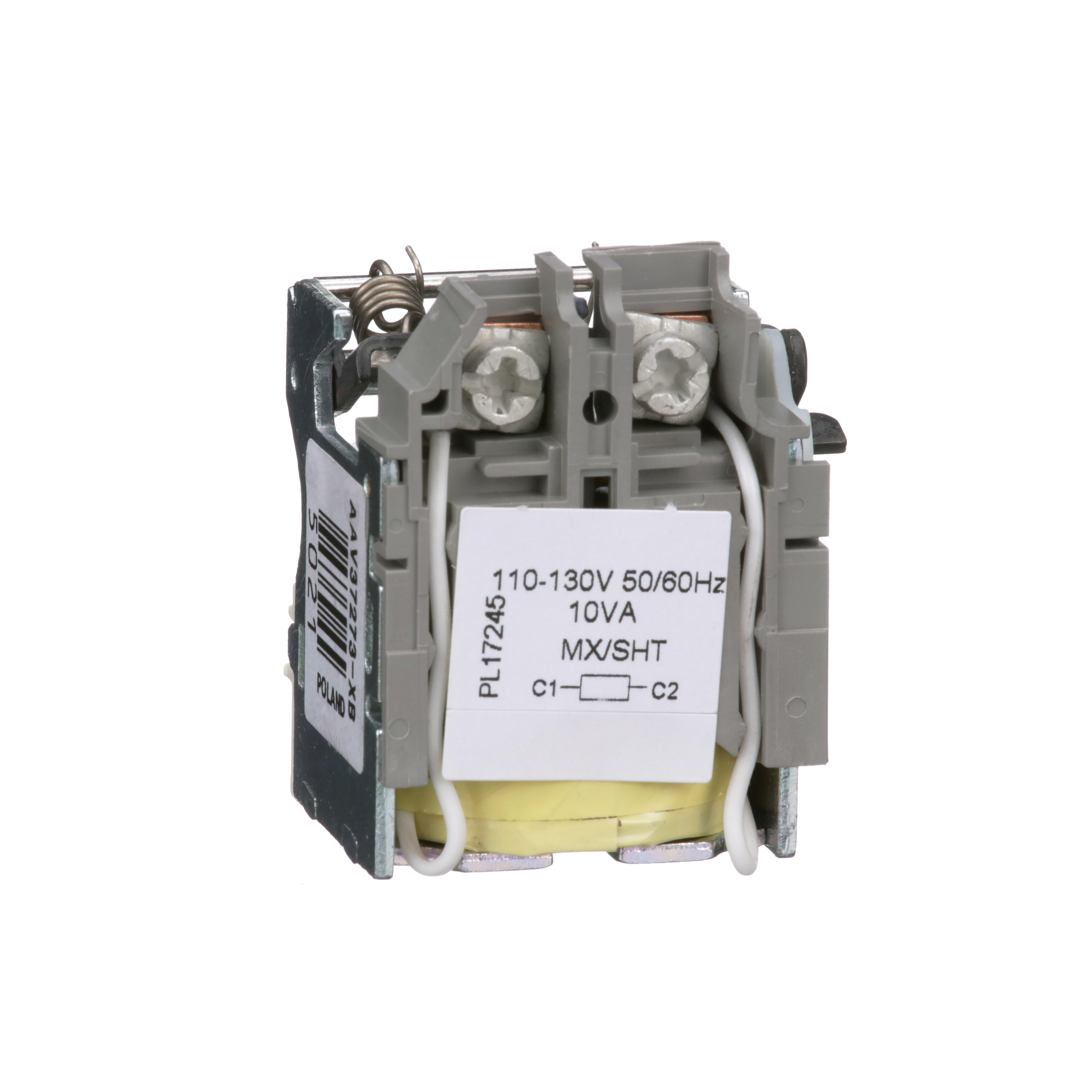

Square D S29386 Circuit Breaker Shunt Trip 110-130V AC

Product Description

The Square D S29386 PowerPact H-frame circuit breakers protect electrical systems from damage caused by overloads and short circuits. These H-frame circuit breakers are available with thermal-magnetic or Micrologic electronic trip units. This shunt trip complies with UL & CSA certifications and is designed for standard applications. It is suitable for PowerPact H/J/L Frame Molded Case Circuit Breakers.

• Protects electrical systems from damage caused by overloads and short circuits
• Complies to UL & CSA certifications
• Suitable for PowerPact H/J/L Frame Molded Case Circuit Breakers

Product Highlights

The Square D S29386 is a circuit breaker shunt trip designed for standard applications, providing reliable protection for electrical systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: S29386
• Country of Origin: France

Technical Specifications

• Type: Standard
• Brand: Square D
• Depth: 1.24 in
• Width: 1.28 in
• Height: 1.72 in
• Voltage: 110/130V AC
• Sub Brand: POWERPACT
• Trip Type: NA
• Applications: Standard
• Circuit Breaker Type: Standard
• Catalog Number: S29386
• Manufacturer: Schneider Electric
• Country of Origin: France
• Made in USA: No
• Power Rating: 10 VA
• Connection Type: 18 to 14 AWG Copper Wire Lead
• Approval: UL
• Used On: PowerPact H/J/L Frame Molded Case Circuit Breaker
• Mounting: Field Mounted
• Amps: 0.08 A
• Includes: Screw Terminals
• Frame Type: 150A/HD, 150A/HG, 250A/JD, 250A/JG, 250A/JJ
• For Use With: Powerpact H and J Frame Circuit Breakers
• Product Type: Shunt Trip
• Accessory Type: Shunt Trip
• DC Voltage Rating: Not Rated
• Tightening Torque: 1.4-1.4 N.m
• Range Of Product: Powerpact
• Weight: 0.29
