Square D RPZF2 Ice Cube Relay Socket 8 Pin 250V 16A Dpdt

Product Description

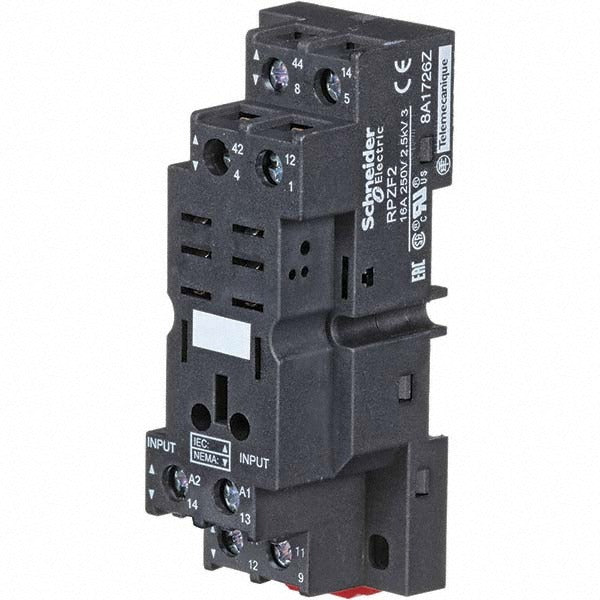

The SQUARE D RPZF2 is an 8-pin ice cube relay socket designed to accept DPDT plug-in relays in industrial and commercial control panel applications. Rated at 250 volts and 16 amps, this socket provides a secure, serviceable interface between the relay and the control circuit, allowing relay replacement without disturbing field wiring. The screw clamp terminals deliver a reliable, vibration-resistant connection. Mounting options include DIN rail or direct screw panel mount, giving installers flexibility in enclosure layout and panel design.

This socket is used in low-voltage and line-voltage control circuits across HVAC, industrial automation, building controls, and motor control panel applications. It is suited for both residential and commercial installations where plug-in ice cube style relays are used in timing, sequencing, or switching circuits. The DIN rail mount option integrates cleanly into standard control panel assemblies, while the screw panel mount option works in custom or retrofit enclosures where DIN rail is not available.

Key Features

• 8-pin configuration accepts standard DPDT ice cube plug-in relays
• Rated 250 volts and 16 amps for line-voltage control circuit compatibility
• Dual mounting options: DIN rail mount or screw panel mount
• Screw clamp terminals for secure, tool-tightened field wiring connections
• Compact ice cube socket form factor at 3.5 inches long, 1.3 inches wide, and 1.3 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation socket for standard 8-pin DPDT ice cube plug-in relays used in industrial and commercial control panel applications.

Installation Notes

Installation is typically performed by licensed electricians or experienced HVAC controls technicians. De-energize the control panel and verify the circuit is dead before wiring or inserting the relay. Screw clamp terminals should be tightened with an appropriate flat-blade screwdriver to ensure a secure connection. Follow applicable NEC requirements for control wiring and enclosure ratings.
