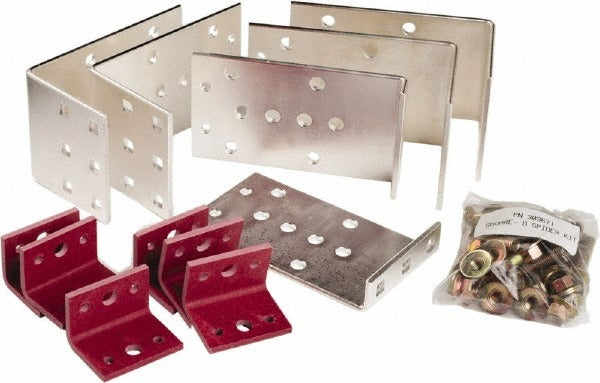

Square D RLTB Circuit Breaker Terminal Pad Kit

Product Description

The SQUARE D RLTB is a terminal pad kit designed as an accessory for compatible Square D circuit breakers. Terminal pad kits provide the proper mechanical and electrical interface between a breaker and the busbars or conductors in a panelboard or switchboard assembly. This kit supports secure, code-compliant termination of conductors at the breaker lugs. It is typically installed by licensed electricians during new panel construction, breaker replacement, or service upgrade work where OEM-matched hardware is required.

This kit is suited for use in commercial and residential electrical distribution applications where Square D circuit breakers are installed in load centers, panelboards, or switchboard enclosures. It is intended for use by qualified electrical contractors and service technicians working on Square D distribution equipment.

Key Features

• OEM-style terminal pad kit engineered to match Square D circuit breaker mounting and connection requirements
• Provides a secure mechanical interface between the breaker and panel conductors
• Supports code-compliant installations per NEC guidelines
• Packaged as a single unit kit for straightforward replacement or new installation
• Compact form factor: 12.2 inches long, 8.8 inches wide, 6.2 inches tall

Compatibility

Designed as an OEM-style accessory terminal pad kit for compatible Square D circuit breakers used in residential and commercial panelboard and switchboard assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify the absence of voltage using a calibrated meter before handling any breaker hardware or terminal components. Do not overtighten lug hardware beyond the torque values specified in the equipment labeling or manufacturer documentation. Confirm proper seating and mechanical connection before restoring power.
