Square D RC816F200SL Meter Mains, Homeli 200 Amp

Product Description

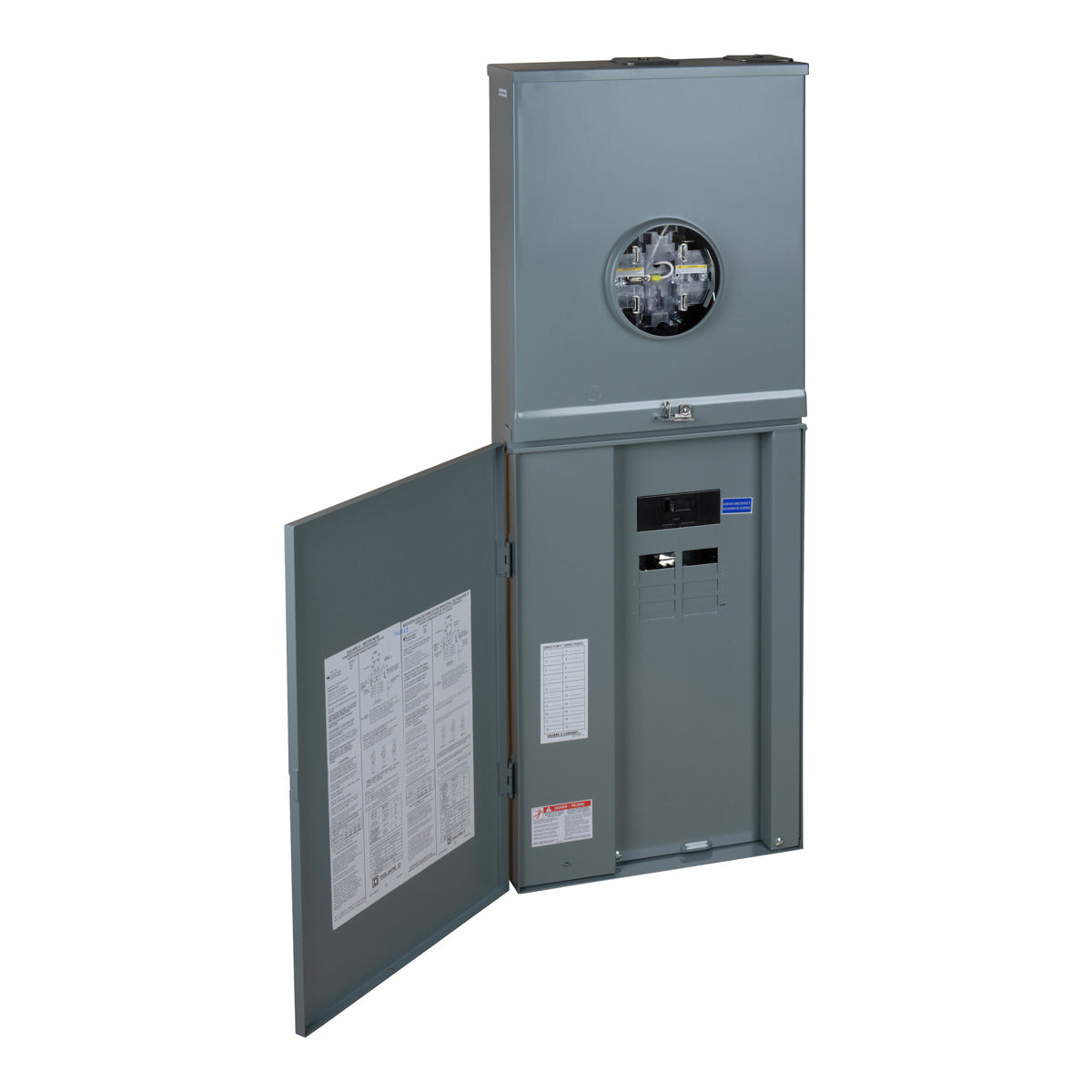

The SQUARE D RC816F200SL Homeline all-in-one combination service entrance device features ringless type meter socket designs and factory-installed service disconnects. It is supplied with 100% branch neutrals, feed-thru lugs, and provisions for branch circuit breakers. The unit can be fed from an overhead or underground service and has a 22 kA short circuit current rating.

• Ringless type meter socket designs
• Factory installed service disconnect(s)
• 100% branch neutrals

Product Highlights

This Homeline combination service entrance meter main has a NEMA 3R surface mounting enclosure and is UL Listed, meeting EUSERC standards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: RC816F200SL
• Country of Origin: Mexico

Technical Specifications

• Type: METER MAINS,RINGLESS
• Brand: Square D
• Depth: 5.32 Inch
• Width: 18.35 in
• Height: 48.62 Inch
• Amperage: 200 Amp
• Sub Brand: HOMELINE
• Wire Size: AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 6...350 kcmil aluminium/copper)line side
• Cable Entry: OH-UG
• Mounting Type: Surface (outdoor)
• Certifications: UL E-6294
• Conductor Size: 8-2/0 AWG
• Number of Phases: 1 Phase
• Number of Spaces: 8
• Line Rated Current: 200 A
• Number of Circuits: 16
• Short Circuit Current: 22 kA
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Bypass Type: Lever
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase
• Number of Pole Spaces: 8
• Hub Type: A Type
• Mounting Surface: Outdoor
• Wire Size (Line Side): 6 AWG to 350 KCMIL Aluminum/Copper
• Wire Size (Service Ground): 8 to 2/0 AWG Aluminum/Copper
• Approval: UL
• RoHS Compliant: True
• Standards: UL E-6294
• Meter Socket Type: ringless
• Circuit Breaker Type: Homeline
• Operation Method: Combination
• Voltage: 120/240
• Number in Pack: 1
• Model: RC816F200SL
• Family / Style: Homeline
• Circuits: 16
• Spaces: 8
