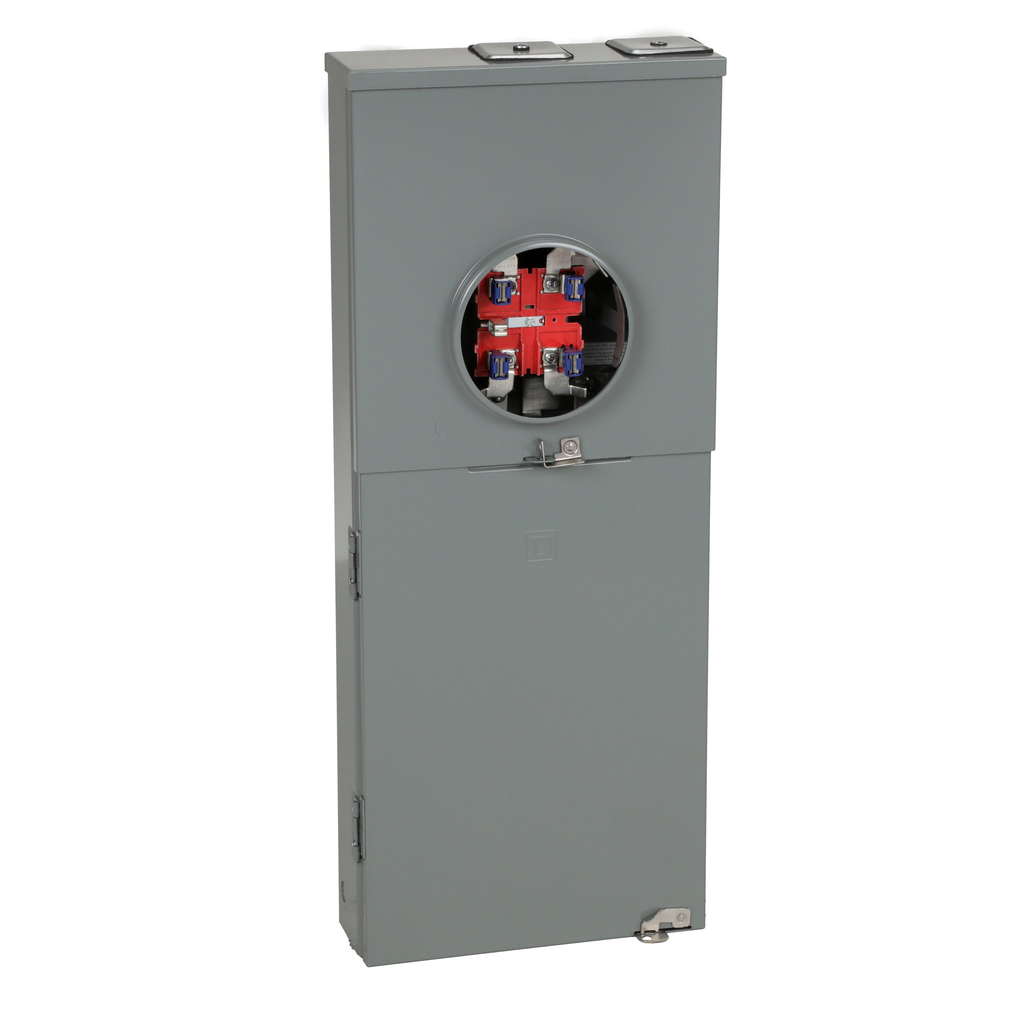

Square D RC816F200CH Meter Main 200 Amp 1 Phase Ringless

Product Description

The Square D RC816F200CH is a 200 Amp, 1-Phase Ringless Surface Mount Meter Main. It supports overhead or underground cable entry. The enclosure can be used as a surface mount or converted to semi-flush. This meter main meets federal specifications and is UL listed for service equipment. It features a horn type bypass for efficient metering.

• 200 Amp capacity for efficient service
• Compatible with AWG 6 to 350 kcmil aluminum/copper wiring
• Meets Type 1, Class 2 specifications

Product Highlights

This meter main is designed for residential and commercial use. It can be installed with feed-thru lugs for simplified electrical connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: RC816F200CH
• Amperage: 200 Amp
• Phase: 1 Phase
• Number of Circuits: 16
• Height: 35.13 inches
• Width: 14.37 inches
• Depth: 5.07 inches
• Country of Origin: Mexico
