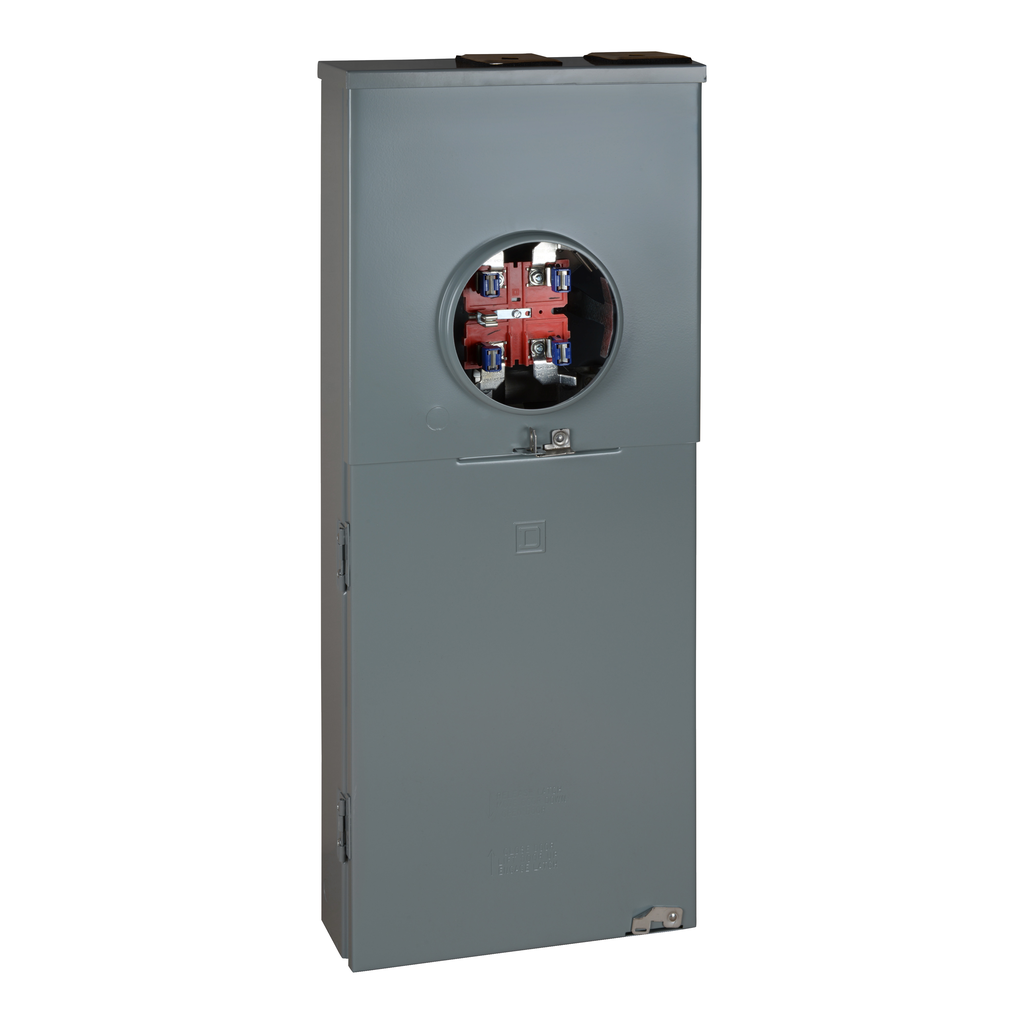

Square D RC816F100CH Meter Main Ringless Horn 100A

Product Description

The Square D RC816F100CH is a meter main designed for service entrances. This unit supports both overhead and underground feed. It features a ringless meter socket and includes a service disconnect rated at 100 Amps. The construction meets federal specifications for service entrance devices.

• 100 Amp maximum rating
• Ringless meter socket with horn bypass
• NEMA 3R surface mounted enclosure

Product Highlights

This service entrance meter main is ideal for use in a variety of electrical applications. The design allows for easy installation and maximum functionality with provisions for branch circuit breakers.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: RC816F100CH
• Voltage: 120/240 VAC
• Amperage: 100 Amp
• Enclosure: NEMA 3R
• Dimensions: 35.13 inches tall, 14.37 inches wide, 4.67 inches deep
• Wire Sizes Line Side: AWG 6 to 350 kcmil
• Wire Sizes Ground: AWG 12 to 2/0
• Short Circuit Current Rating: 22 kA
