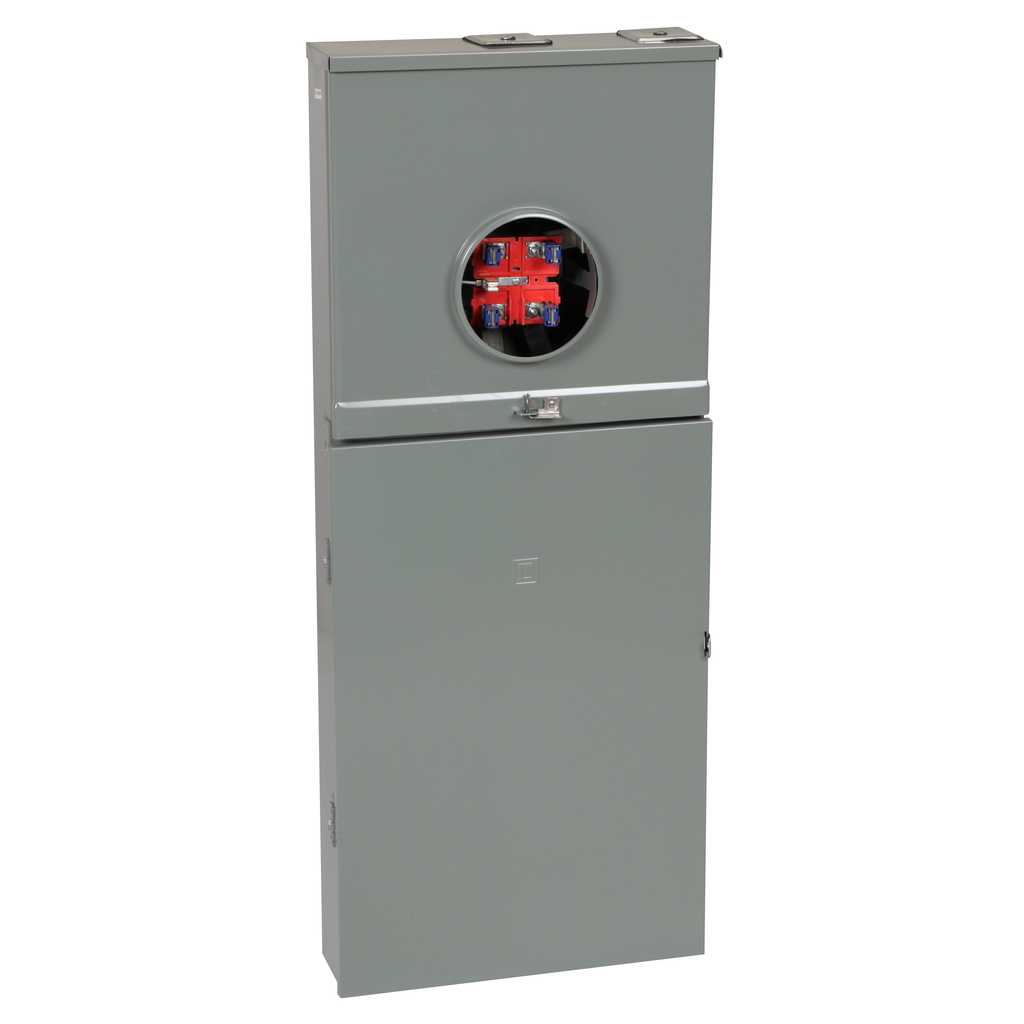

Square D RC3042M200PS SQD All In One Homeline 200A Surface 30 Spaces No Bypass

Product Description

The Square D RC3042M200PS is an all-in-one service entrance device designed for efficiency and reliability. It features a ringless meter socket and includes a plug on neutral design. This unit is suitable for overhead or underground service connections.

• 200 Amp maximum rating with a 22 kA short circuit current rating.
• NEMA 3R surface mounting enclosure dimensions are 45.47 inches tall, 18.78 inches wide, and 4.41 inches deep.
• Accommodates 30 spaces and up to 12 tandem circuit breakers.

Product Highlights

This unit meets the Federal Specification W-P-115c as Type 1, Class 2 specifications. It facilitates a clean and organized installation by allowing grounding wires to utilize all unused terminals.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: RC3042M200PS
• Maximum Amperage: 200 Amp
• Enclosure Type: NEMA 3R
• Dimensions: 45.47 inches (H) x 18.78 inches (W) x 4.41 inches (D)
• Wire Size: Accepts 6 AWG to 350 kcmil for line side; 8 AWG to 2/0 AWG for service ground
• Number of Spaces: 30
• UL Listed: Yes
