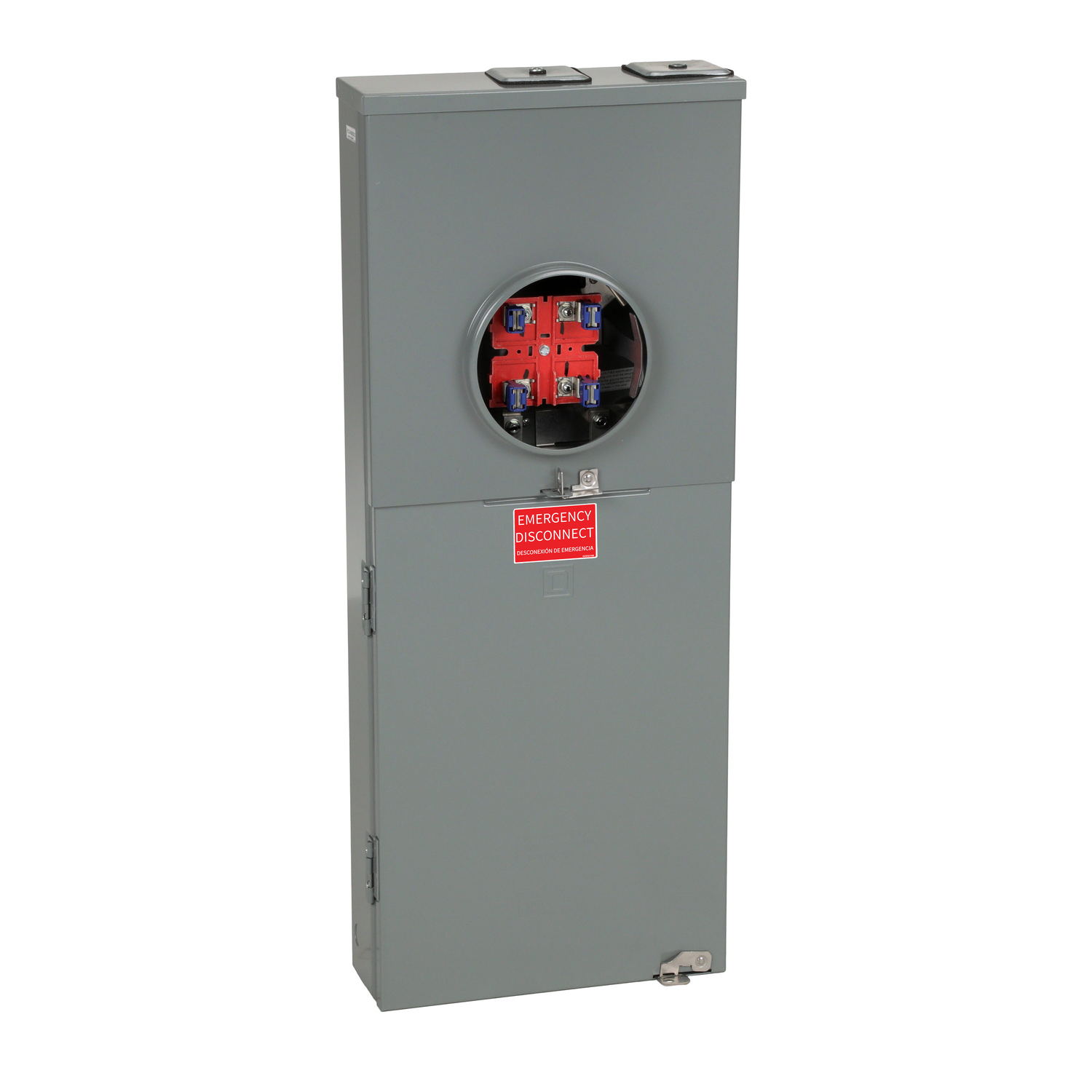

Square D RC2040M200C 200 Amp Meter Main

Product Description

The Square D RC2040M200C is a load center and combination service entrance device. Meeting Federal Specification W-P-115c as Type 1, Class 2, it is UL Listed and suitable for use as service equipment, meeting EUSERC standards. This ringless type meter main has a short circuit current rating of 22kA.

• Device supplied with barrel lock provisions factory-installed.
• Ringless
• Surface Mount only

Product Highlights

The Square D RC2040M200C is a 200 amp meter main suitable as service equipment. It features a ringless design and is surface mountable.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: RC2040M200C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: RC2040M200C
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Amperage: 200 Amp
• Sub Brand: HOMELINE
• Type: Ringless;All-In-One
• Mounting Type: Surface
• Cable Entry: OH-UG
• Wire Size: AWG 6...350 kcmil aluminium)line side;AWG 6...350 kcmil copper)line side;AWG 12...AWG 2/0 aluminium)service ground;AWG 12...AWG 2/0 copper)service ground
• Conductor Size: 6 AWG-350 kcmil
• Line Rated Current: 200 A
• Number of Circuits: 40
• Short Circuit Current: 22 kA
• Voltage Rating: 120/240 VAC
• Current Rating: 200 Ampere
• Number of Pole Spaces: 20
• Hub Type: A
• Enclosure: NEMA 3R
• Approval: UL
• Range Of Product: Homeline
• Product Or Component Type: All-In-One
• Meter Socket Type: ringless
• Branch Circuit Breaker Rated Current: 200 A
• Service Feed Location: OH || UG
• Bus Rated Current: 200.0 A
• Electrical Connection: lugs, line side || lugs, service ground
• Number Of Spaces: 20
• Number Of Tandem Circuit Breakers: 20
• Service Disconnect Rated Current: 200 A
• Awg Gauge: AWG 6...350 kcmil (aluminium) line side || AWG 6...350 kcmil (copper) line side || AWG 12...AWG 2/0 (aluminium) service ground || AWG 12...AWG 2/0 (copper) service ground
• Device Composition: service disconnect (factory installed)
• Device Mounting: surface
• Tightening Torque: main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 50 lb.in, AWG 14...AWG 1/0, copper || branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
