Square D RC2040M150CH 150 amp All-In-One

Product Description

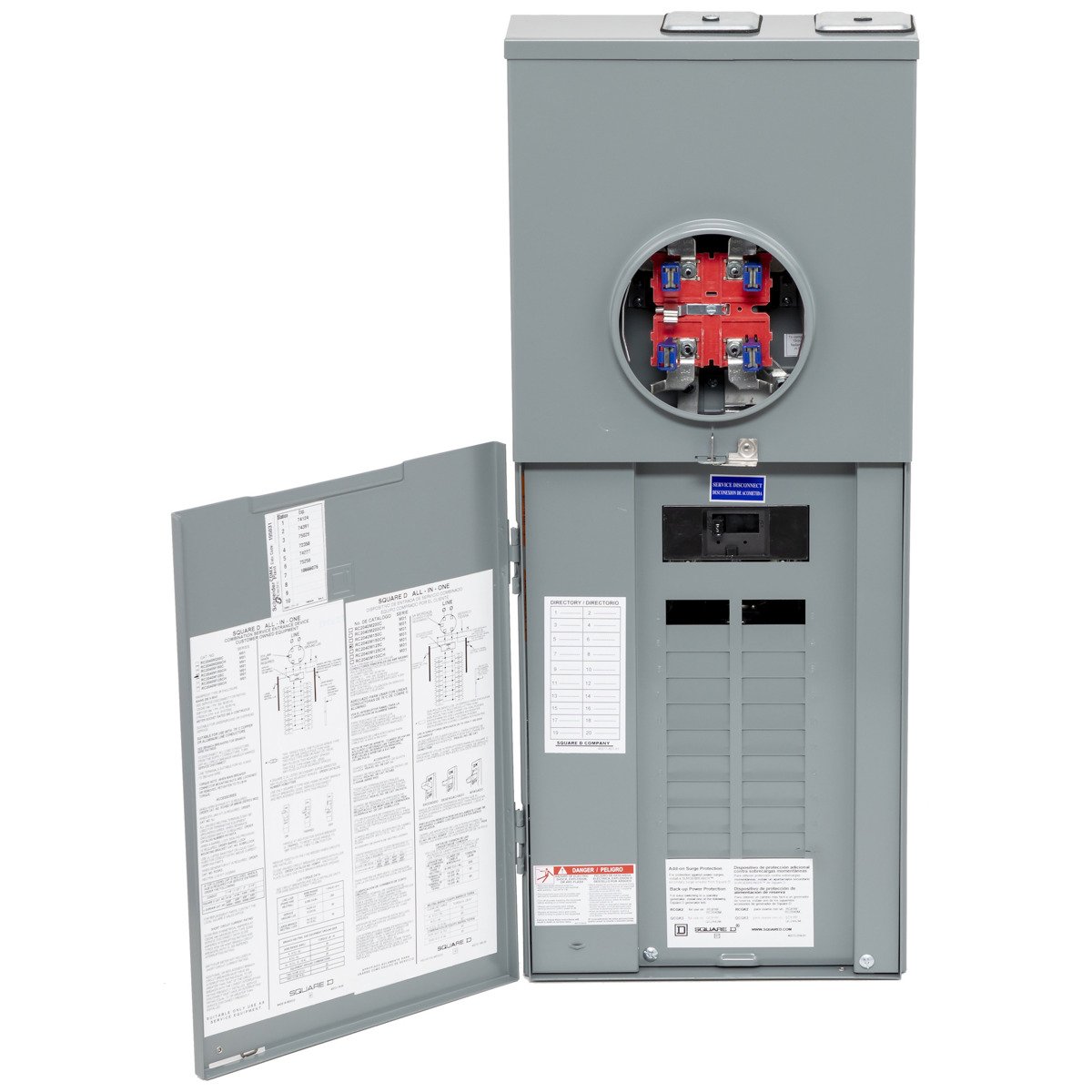

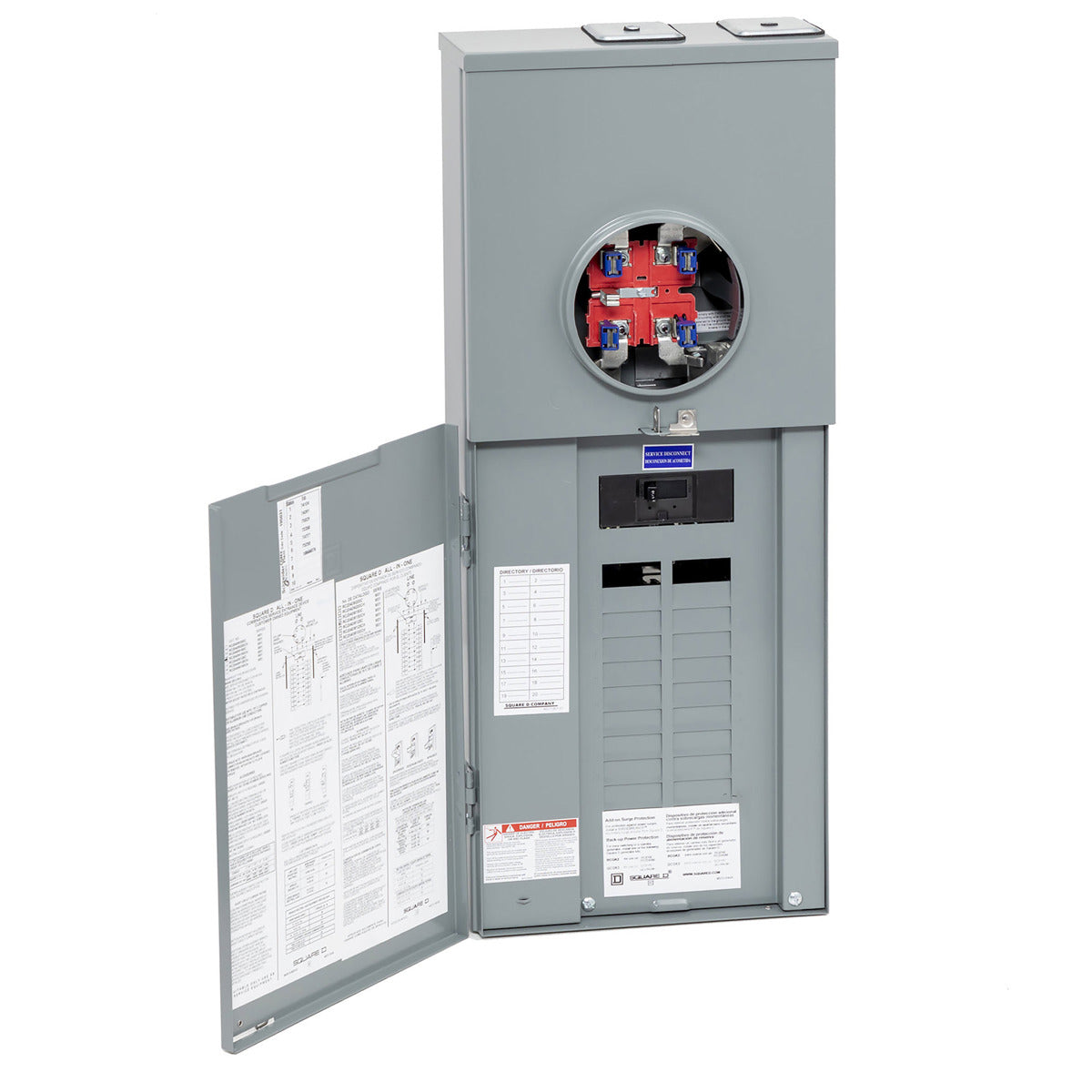

The Square D RC2040M150CH is a Homeline ringless single phase All-In-One designed for residential use where local codes allow main breaker load centers to be mounted outdoors. It provides a meter socket for a standard utility meter, a main disconnect, and load center distribution for 20 spaces and 40 circuits. This surface mounted device has a UL listed rated current of 150A and a short-circuit current of 22kA.

• Designed for outdoor mounting in areas permitting residential main breaker load centers.
• Features a meter socket supporting a standard utility meter.
• Provides load center distribution for 20 spaces and 40 circuits.

Product Highlights

This All-In-One device offers a compact design with a factory-installed main breaker and overhead/underground feed for easy installation. Meets EUSERC Requirements.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: RC2040M150CH
• Country of Origin: Mexico

Technical Specifications

• Type: 3-Wire 20-Circuit 40-Space All-In-One Field Installed Rainproof
• Brand: Square D

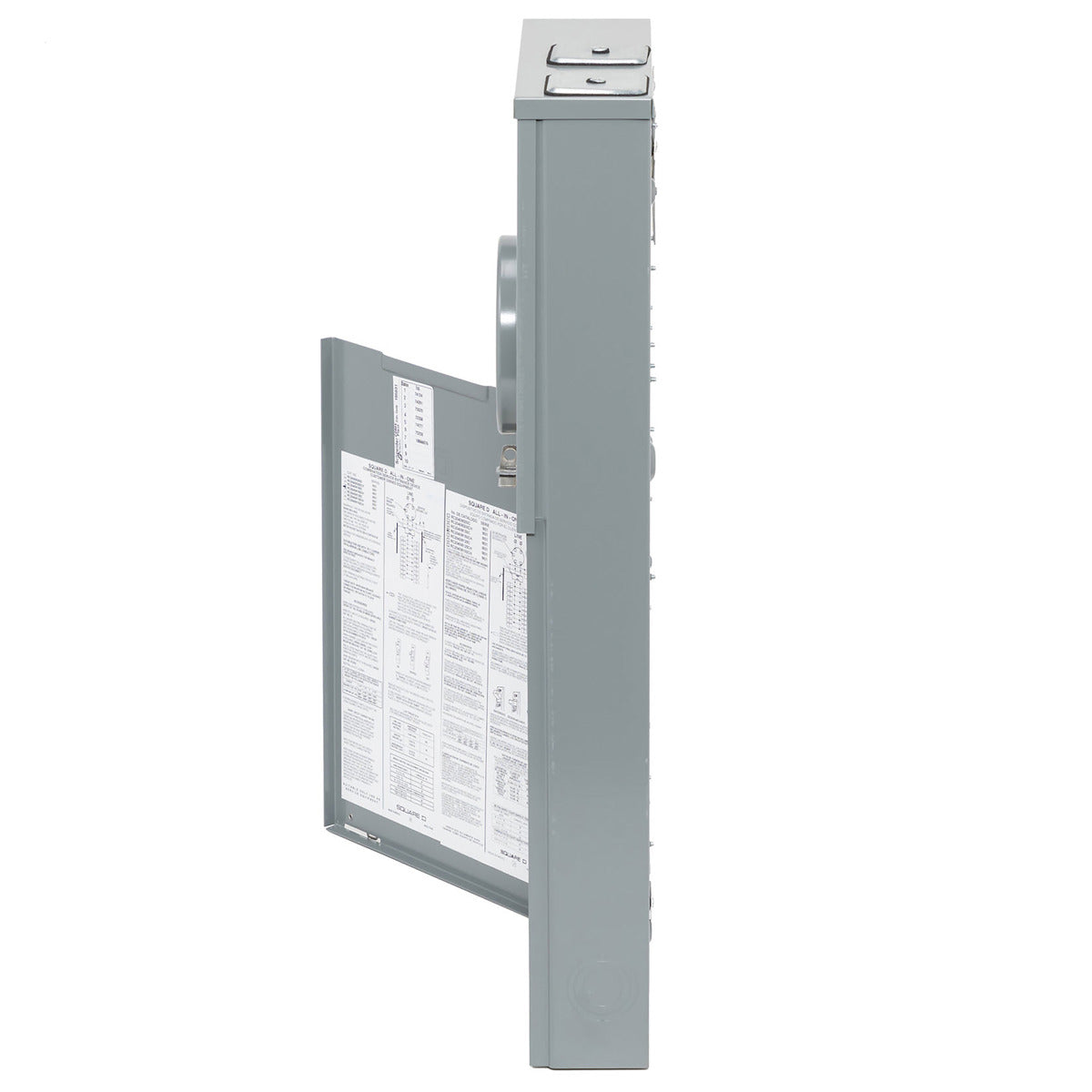

• Depth: 5.07 Inch
• Width: 14.37 in
• Height: 36.69 Inch
• Voltage: 120/240 VAC
• Amperage: 150 Amp
• Sub Brand: HOMELINE
• Wire Size: AWG 6...350 kcmil aluminium)line side;AWG 6...350 kcmil copper)line side;AWG 12...AWG 2/0 aluminium)service ground;AWG 12...AWG 2/0 copper)service ground
• Cable Entry: OH/UG
• Product UPC: 78590187831
• 12-Digit UPC: 785901878315

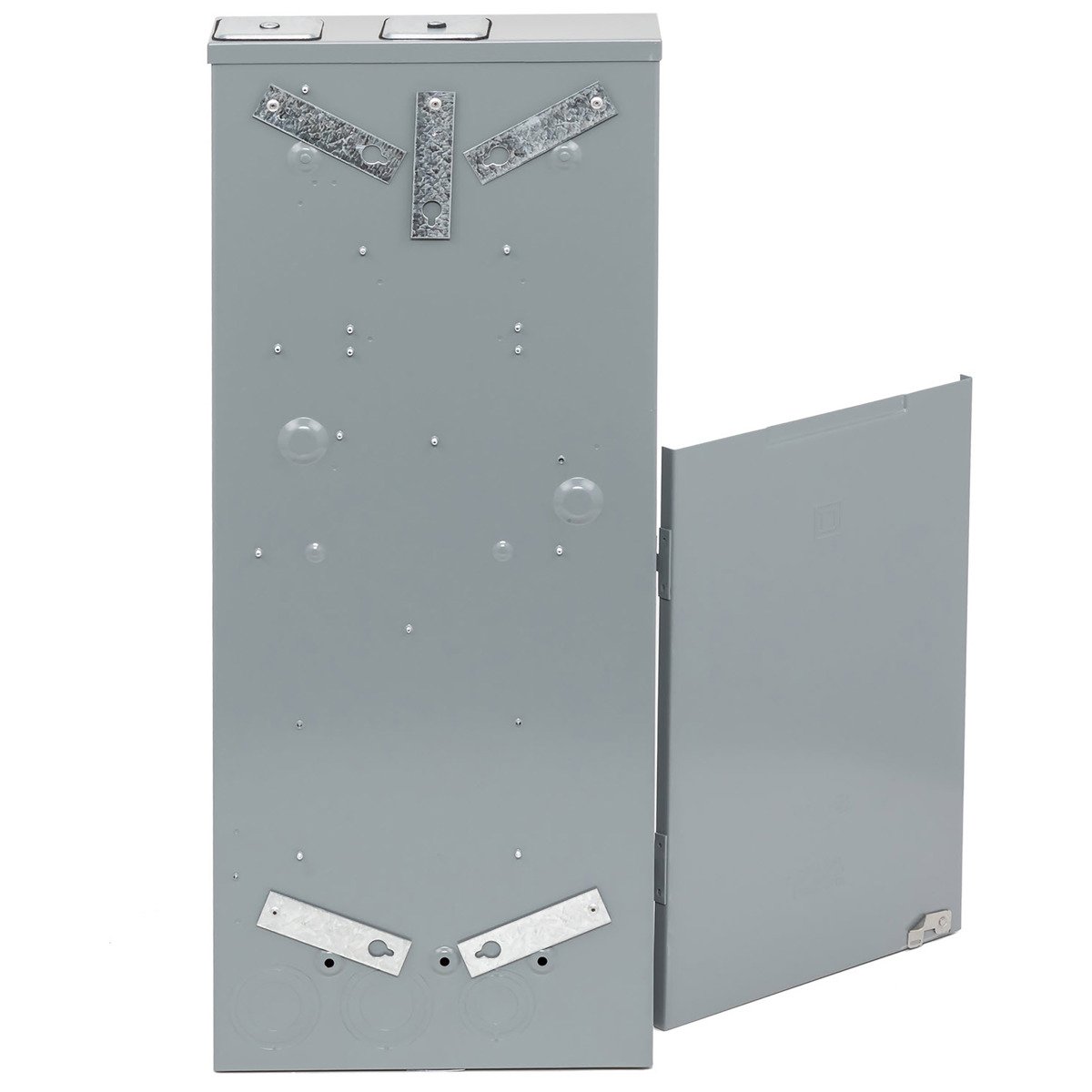

• Mounting Type: Surface
• Conductor Size: 6 AWG-350 kcmil
• Line Rated Current: 150 A
• Number of Circuits: 40
• Short Circuit Current: 22 kA
• Size: 36.69 in
• Catalog Number: RC2040M150CH
• Manufacturer: Schneider Electric
• UPC: 785901878315
• GTIN: 00785901878315
• AWG Range: AWG 6...350 kcmil
• Max. Tandem Circuits: 20
• No. of Spaces: 20
• Voltage Rating: 120/240 V AC
• Dimensions: 35.13 in H x 14.37 in W x 4.67 in D
