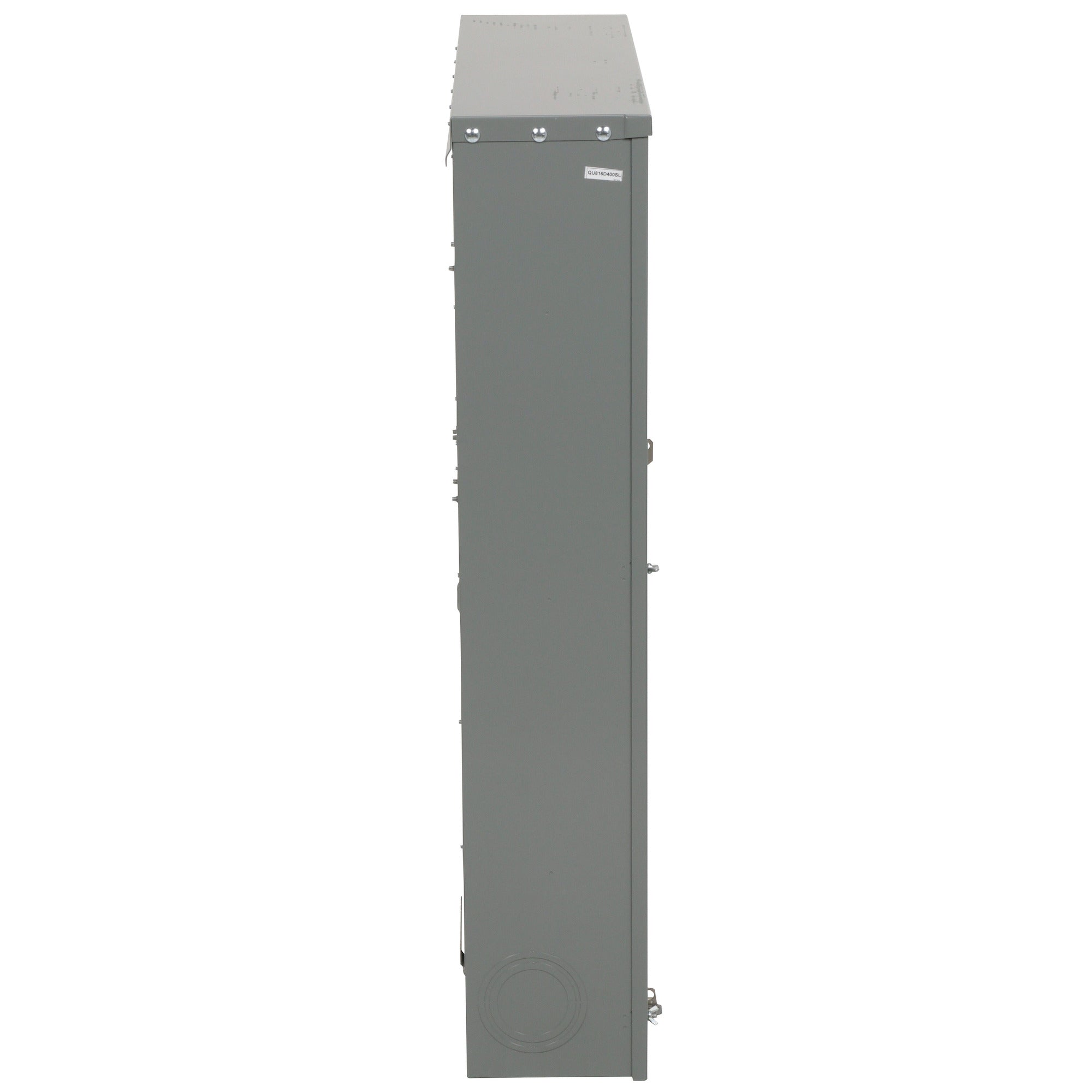

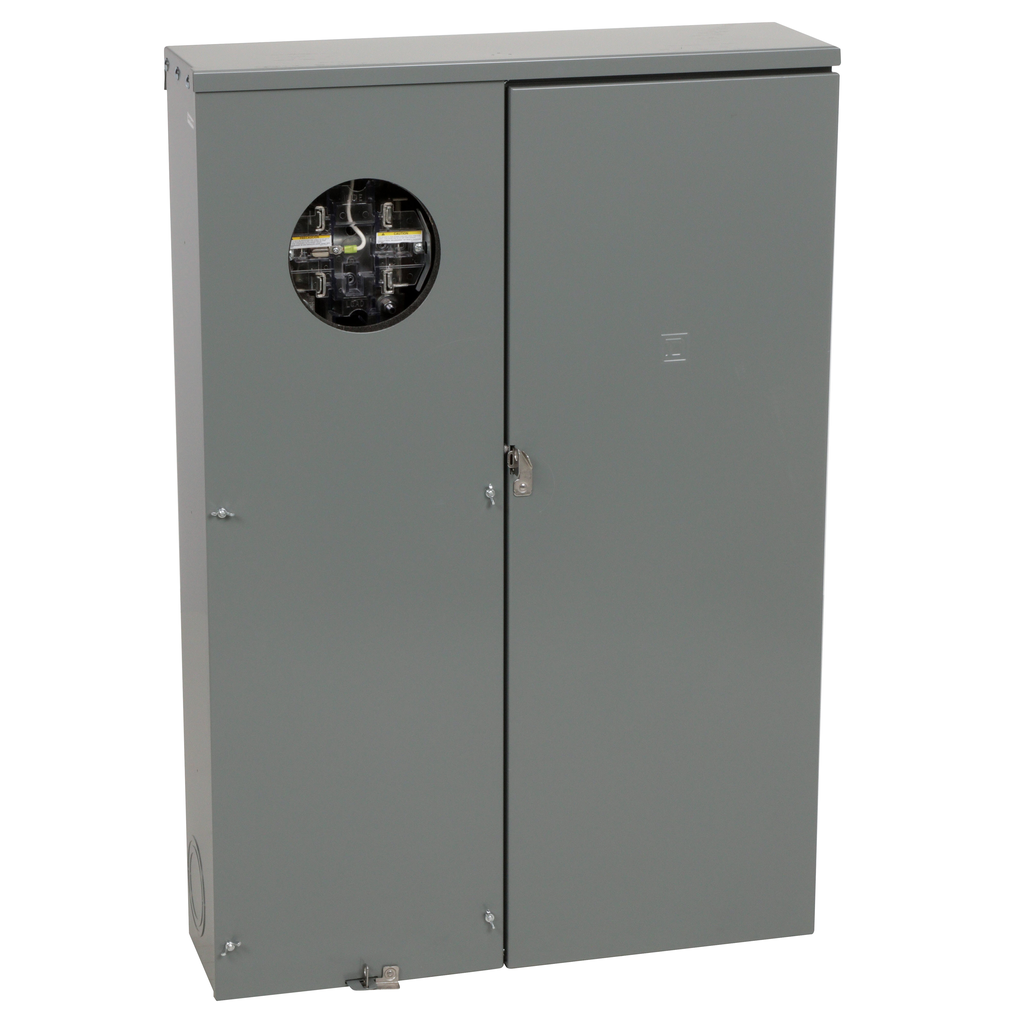

Square D QU816D400SL 400 Amp Ringless Meter Main

Product Description

The Square D QU816D400SL is a 400 Amp ringless meter main designed for residential power distribution. It includes a meter socket compatible with standard utility meters and a main disconnect breaker. This unit meets local codes that require service disconnects to be placed outside the dwelling.

• Rated at 400 Amps
• Short circuit current rating of 25 kA
• Eight spaces available for circuits

Product Highlights

This product offers a compact solution for contractors, saving time and space while covering various applications. Service feed is underground only, with a lever bypass mechanism.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QU816D400SL
• Voltage: 120/240 VAC
• Amperage: 400 Amp
• Enclosure: NEMA 3R
• Number of Spaces: 8
• Number of Phases: 1 Phase
• Wire Size: AWG 4 to 250 kcmil
• Dimensions: 43 inches (H) x 28.25 inches (W) x 7.87 inches (D)
