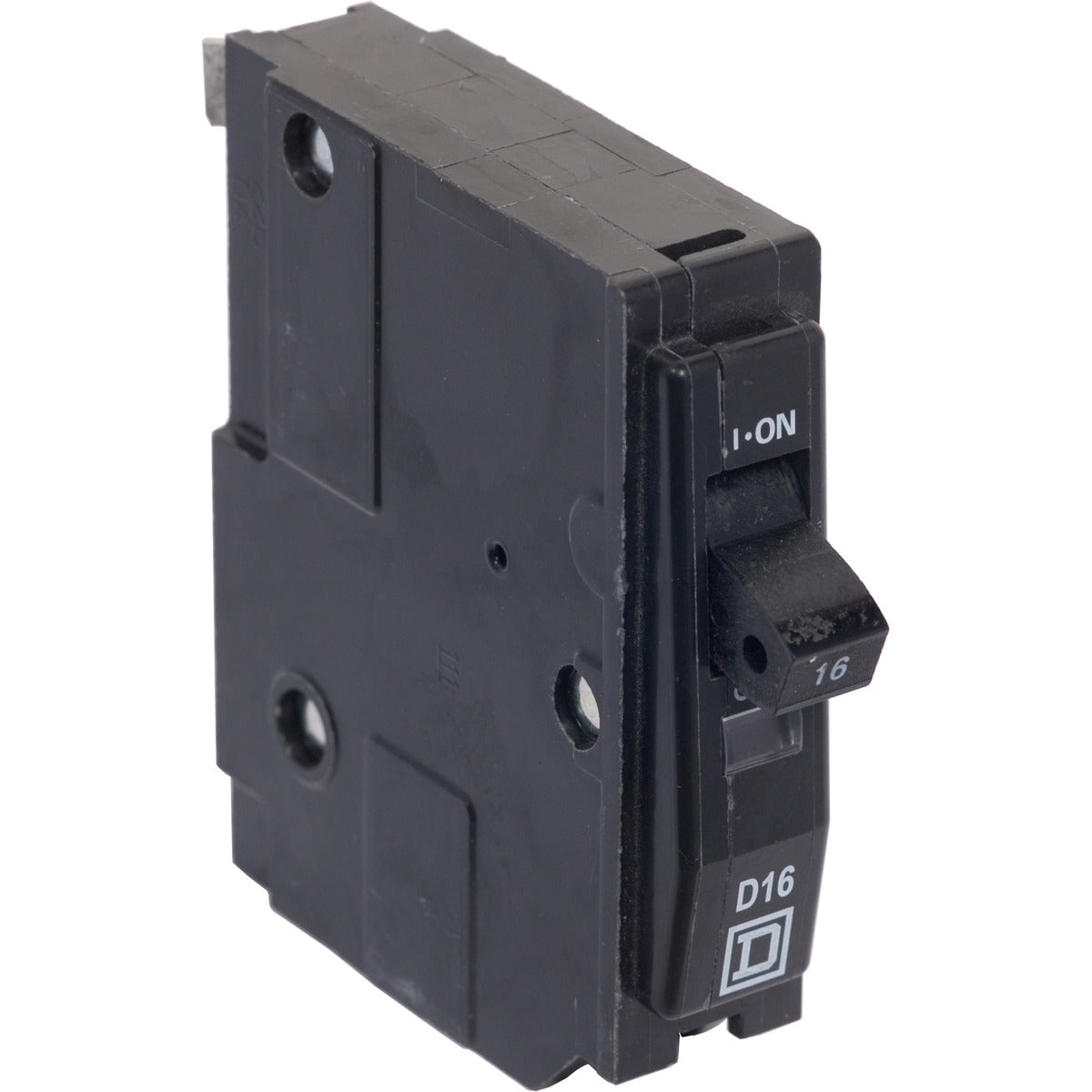

Square D QOXD116 Miniature Circuit Breaker 16 Amp 1 Pole 240V

Product Description

Square D QOXD116 is a miniature circuit breaker rated at 16 Amps and 240 volts. This model is designed for use in both AC and DC systems. It features a thermal magnetic mechanism for overcurrent protection and easy operation.

• Rated for 16 amps and 240 volts
• Trip free toggle mechanism with quick make and break action
• UL Listed and CSA Certified

Product Highlights

The QOXD116 offers reliable performance with a breaking capacity of three kiloAmperes. It includes positive handle indication and VisiTrip trip indication to clearly show the status of the breaker.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOXD116
• Voltage Rating: 240/415 V AC
• Number of Poles: 1
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
• UPC: 785901395652
• Item Type: Miniature circuit-breaker
• Breaking Capacity: 3kA
