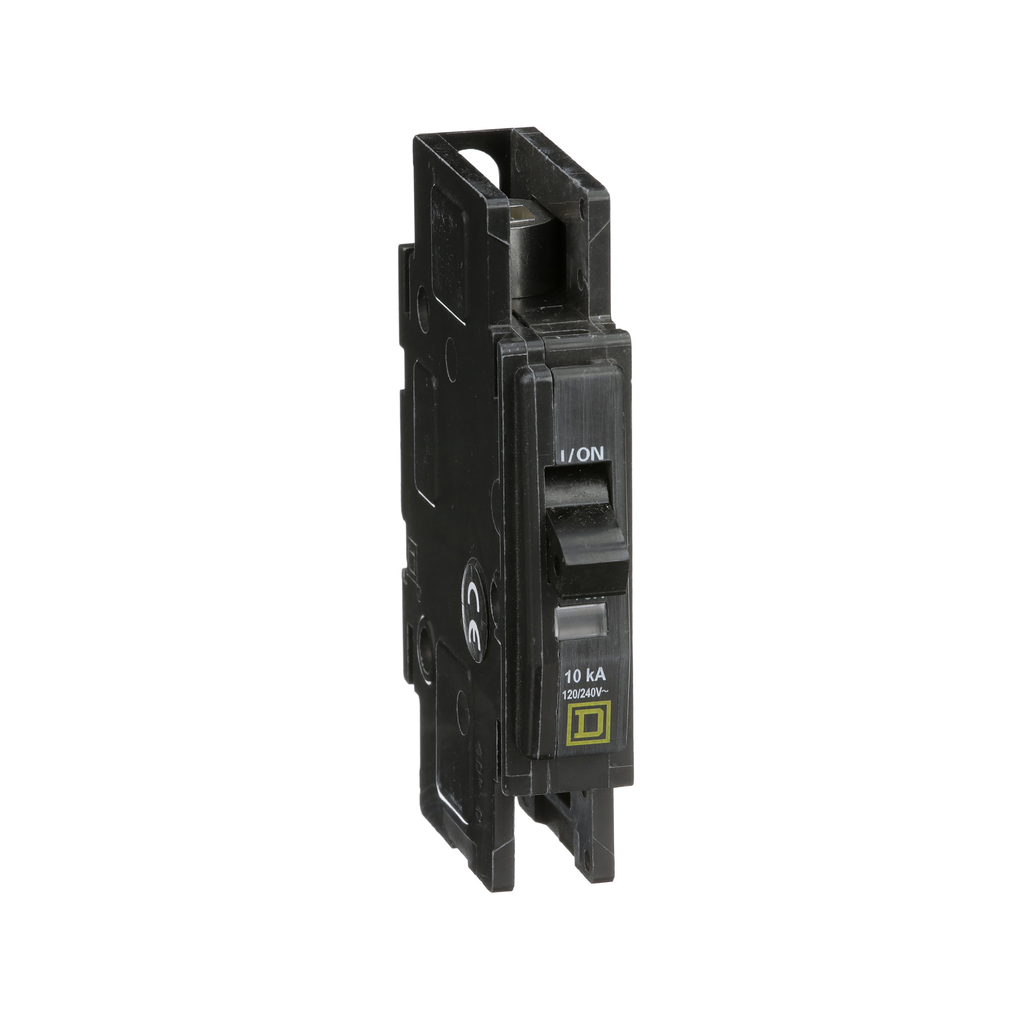

Square D QOUR130 Mini Circuit Breaker 30A 120/240VAC

Product Description

The Square D QOUR130 Mini Circuit Breaker is a unit mount miniature circuit breaker designed for both AC and DC systems. This circuit breaker provides essential overcurrent protection, making it suitable for OEM applications. The QOUR130 features a trip-free toggle mechanism that allows for quick make and break action, along with positive handle indication.

• Common tripping of all poles
• Can be DIN rail, surface, or flush mounted
• Rated at 30A, with a breaking capacity of 10 kA

Product Highlights

This one pole circuit breaker is compact, offering versatility in installations. It includes VisiTrip indication, which alerts users when the breaker has tripped, ensuring quick diagnostics. With rotatable lugs, it accommodates wire sizes from 14 AWG to 2 AWG, making it adaptable for various wiring needs.

Product Information

Standard Information

• Brand: Square D
• MPN: QOUR130

Technical Specifications

• Type: Miniature circuit-breaker
• Voltage: 120 Volt
• Amperage: 30 Amp
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kA
• Height: 4.05 inches
• Width: 0.75 inch
• Depth: 2.95 inches
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
