Product Description

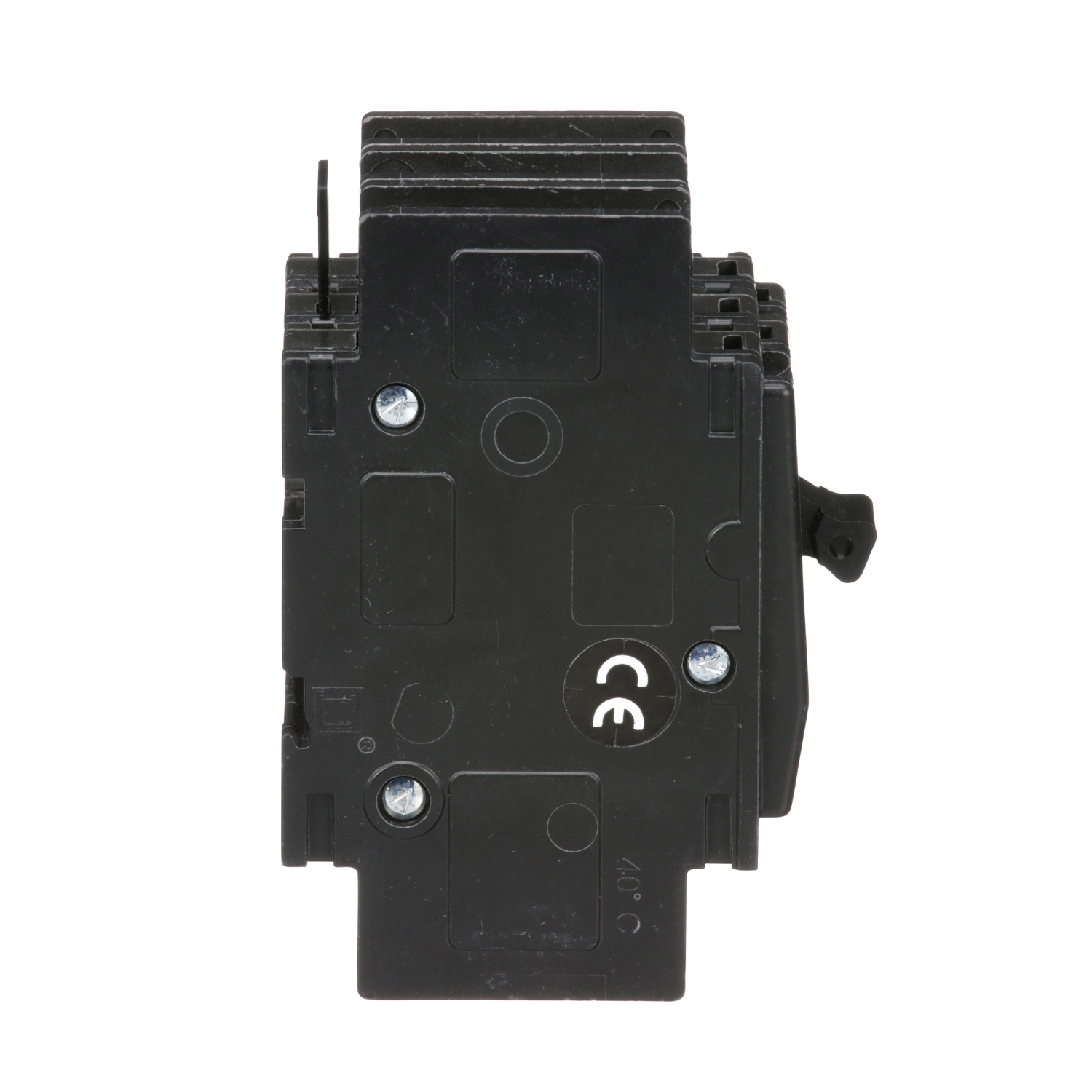

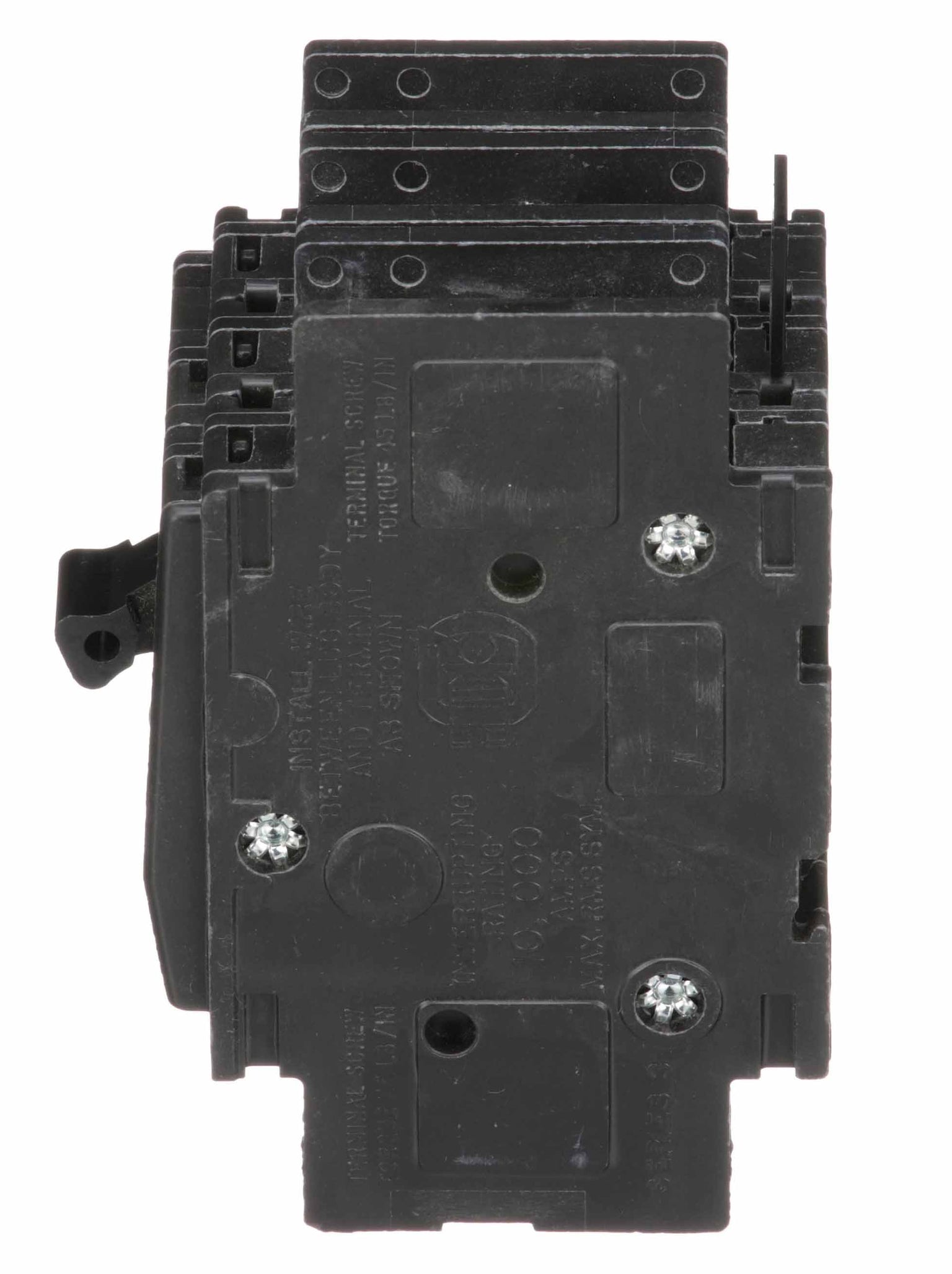

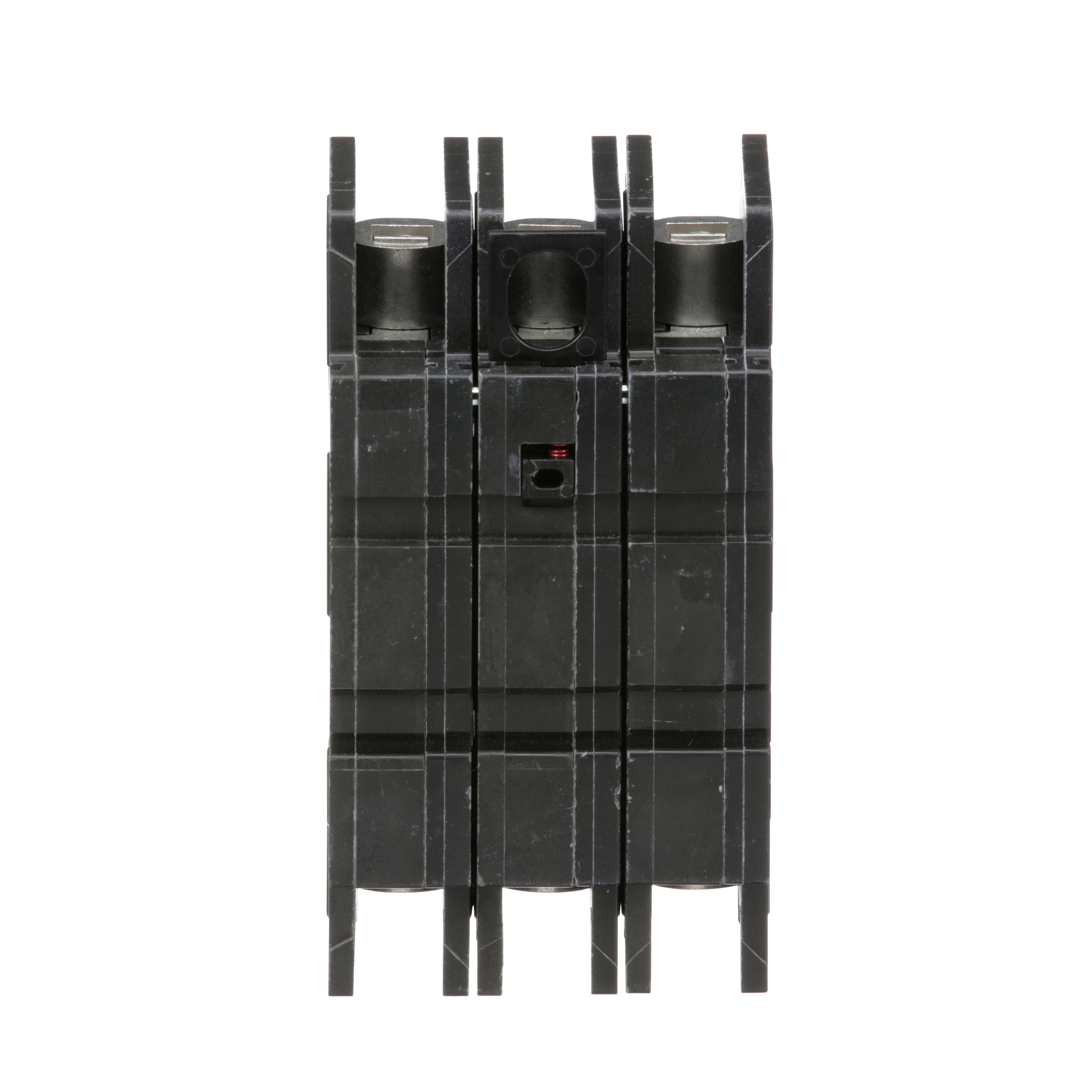

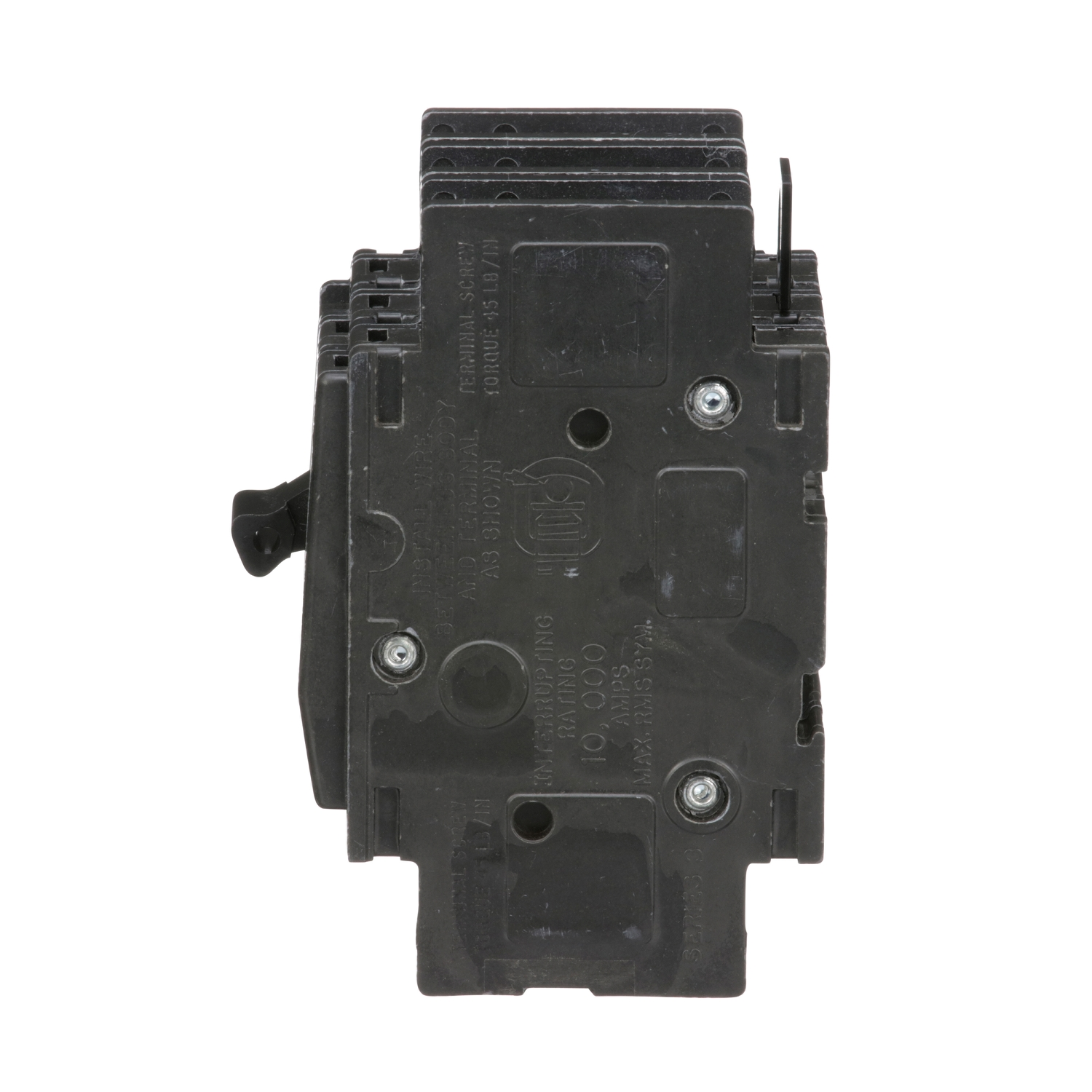

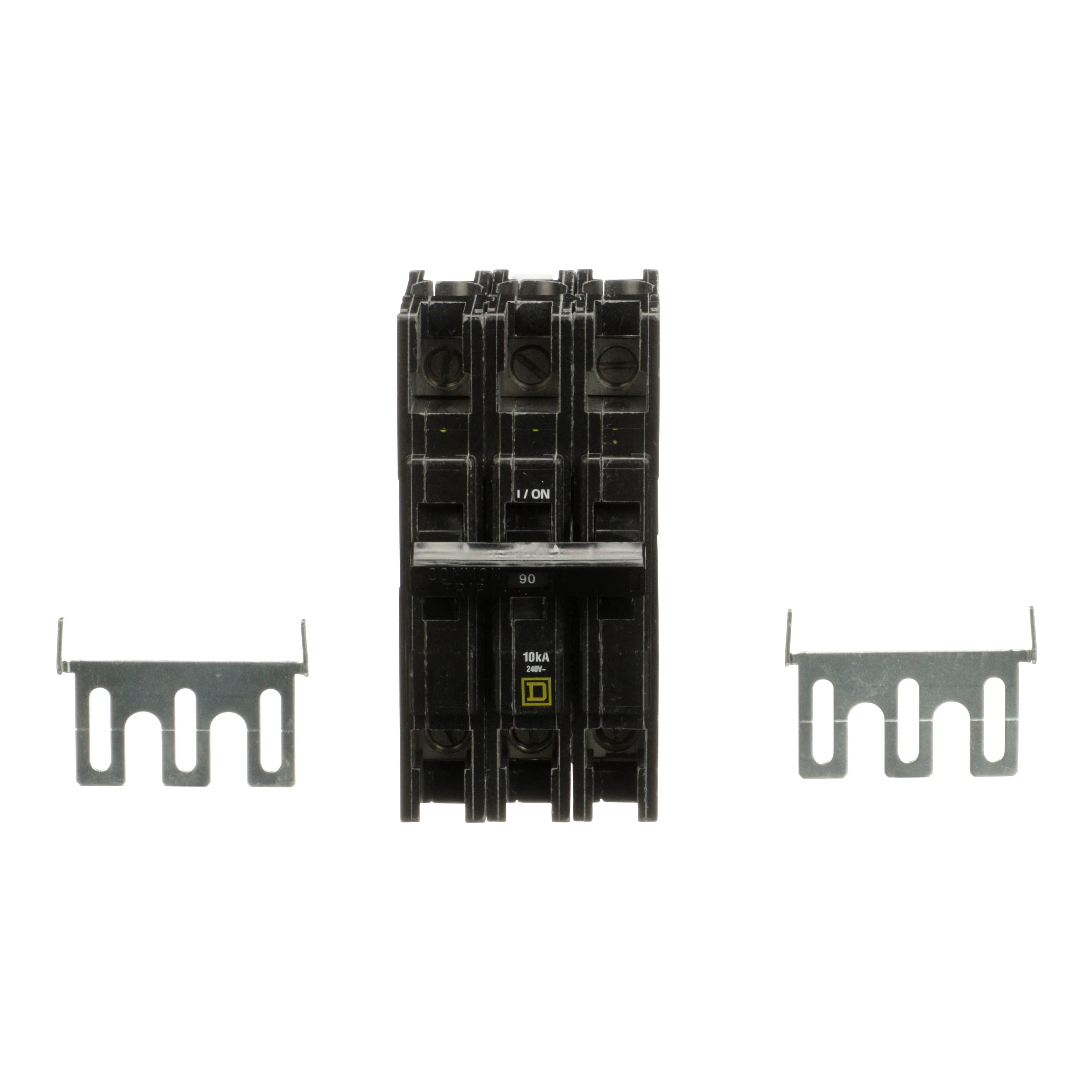

The Square D QOU360 is a miniature circuit breaker ideal for OEM applications. These QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. This 3-pole breaker provides a means to manually open a circuit. It is UL and CSA approved and includes a Visi-Trip indicator.
- Common Trip, Thermal Magnetic
- Voltage Rating: 240 VAC at 50/60 Hz, 48 VDC
- Interrupting Rating: 10 Kiloampere at 120/240 VAC, 5 Kiloampere at 48 VDC
Product Highlights
The Square D QOU360 miniature circuit breaker provides overcurrent protection for AC and DC electrical systems. It features a visi-trip indicator and is UL and CSA approved.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOU360
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: QOU360
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Country of Origin: United States
-
Made in USA: Yes
-
UPC: 785901060291
-
GTIN: 00785901060291
-
Type: Common Trip, Thermal Magnetic
-
Number of Poles: 3
-
Voltage Rating: 240 VAC at 50/60 Hz, 48 VDC
-
Current Rating: 60 Ampere
-
Interrupting Rating: 10 Kiloampere at 120/240 VAC, 5 Kiloampere at 48 VDC
-
Terminal Type: Box Lug Line Terminal, Box Lug Load Terminal
-
Wire Size: (1) 14 to 2 AWG (Aluminum/Copper)
-
Mounting: 35 MM DIN Rail, Flush/Surface
-
Used On: OEM Panel and Enclosure
-
Approval: UL, CSA
-
Includes: Visi-Trip Indicator
-
Application: residential and commercial
-
Poles: 3-Pole
-
Amperage: 60A
-
AC Voltage Rating: 120/240V AC
-
Circuit Breaker Type: Standard
-
DC Voltage Rating: 48V DC
-
Circuit Breaker Actuator: Toggle
-
Circuit Breaker Mounting Style: Surface/DIN Rail
-
Compatible Panelboard/Load Center Series: QO
-
Phase: 3
-
Series: QOU Series
-
Max. AIR Rating: 10kA at 120/240V AC
-
For Use With: Air Conditioning and Refrigeration Equipment, Heating
-
Terminal Connection: Slotted Box Lug Reversible Line and Load
-
Frame Size: 100A/QOU
-
Length: 4.05 in
-
Range Of Product: QOU
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: HACR rated
-
Line Rated Current: 60 A
-
[Ue] Rated Operational Voltage: 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
-
Tightening Torque: 45-45 lbf.in (AWG 14...AWG 2)
-
Electrical Connection: slotted box lugs, line side || slotted box lugs, load side
-
Mounting Mode: unit mount
-
Awg Gauge: AWG 14...AWG 2 aluminium/copper
-
Width: 2.25 in
-
Height: 4.05 in
-
Depth: 2.95 in
-
Product Certifications: IEC || CSA || UL Listed
-
Connection: Slotted box lugs; line side;slotted box lugs; load side;AWG 14...AWG 2 aluminium
-
Manufacturer Part Number: QOU360
-
System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
-
Actuator Type: Toggle
-
Mounting Type: DIN Rail Mount
-
Overload: Thermal/Magnetic
-
Special Features: Trip Indicator
-
UPC Code: 785901060291
