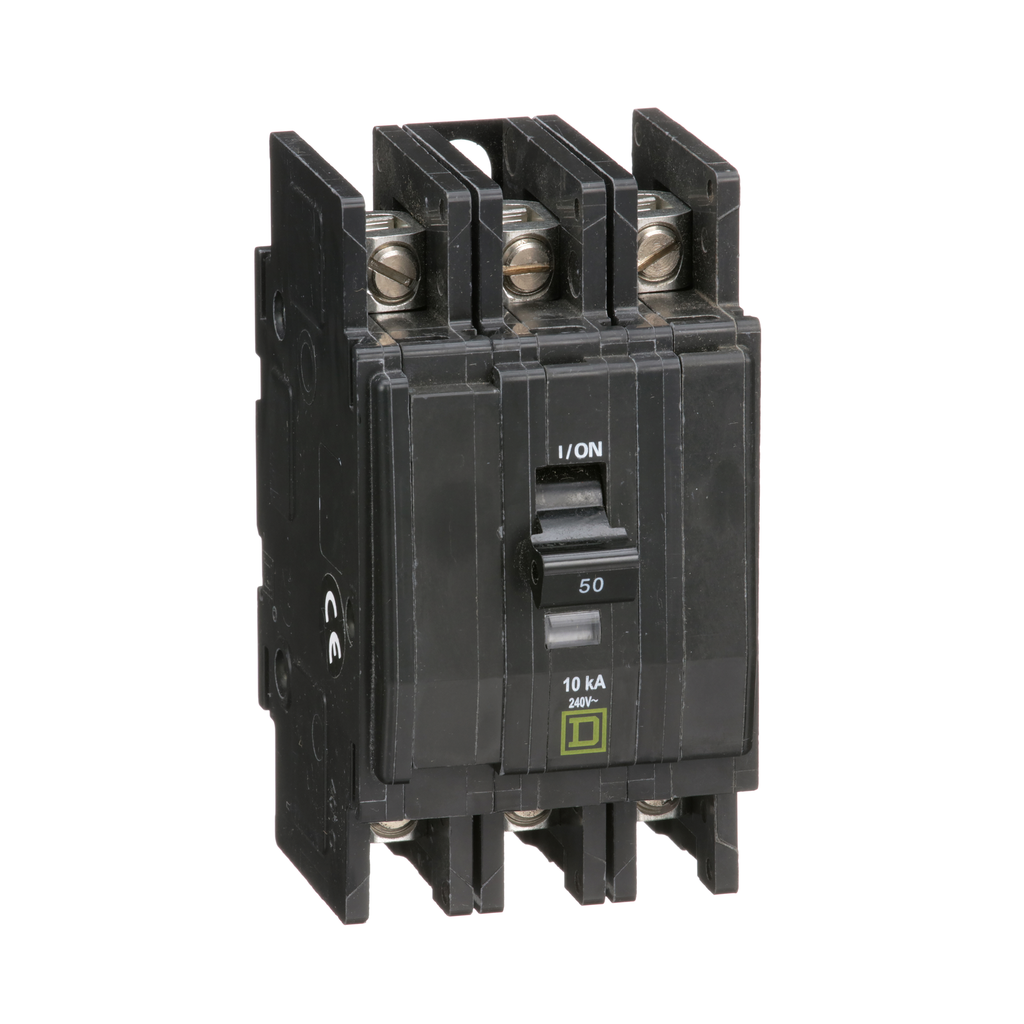

Square D QOU350 Miniature Circuit Breaker 50 Amp 240 Volt

Product Description

The Square D QOU350 Miniature Circuit Breaker is designed for residential and commercial use. This specific model is rated at 50 amps and operates at 240 volts. It is suitable for overcurrent protection and can be used in both AC and DC applications. The QOU Miniature Circuit Breaker features a manual open mechanism using internal magnetic strips. It is versatile, allowing for various mounting options such as flush, surface, or DIN rail.

• Automatically opens circuits during overload or short circuit conditions.
• UL Listed and CSA certified for reverse connections.
• Features cable-in/cable-out construction with lugs at both ends.

Product Highlights

This miniature circuit breaker provides reliable protection with easy trip detection through its Visi-Trip feature. It is rated for HACR and Switching Duty usage, making it a robust choice for various installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 50 Amp
• Height: 4.05 inches
• Width: 2.25 inches
• Depth: 2.95 inches
• Current Rating: 50 A
• Number of Poles: 3 Pole
• Interrupt Rating: 10 kAIC
