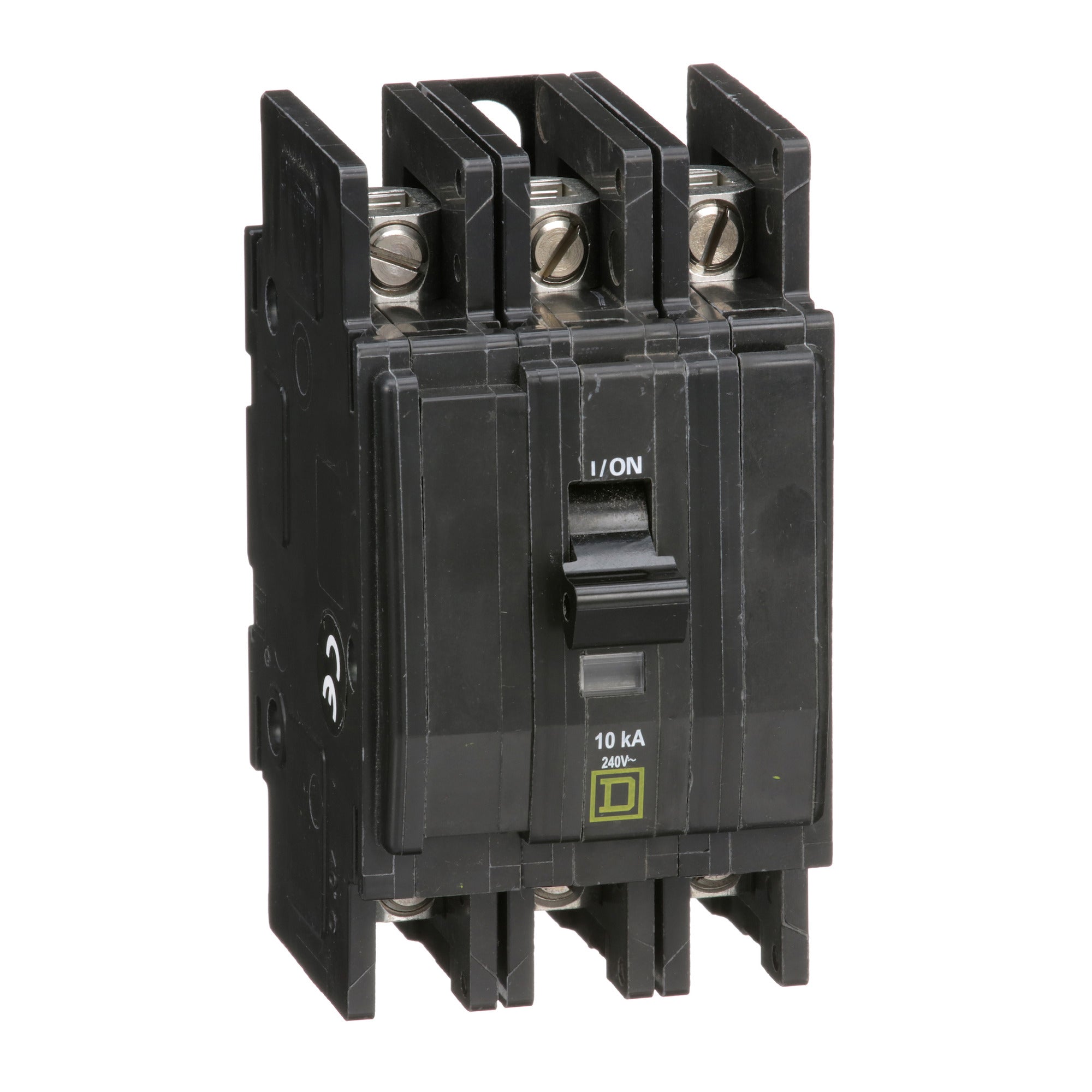

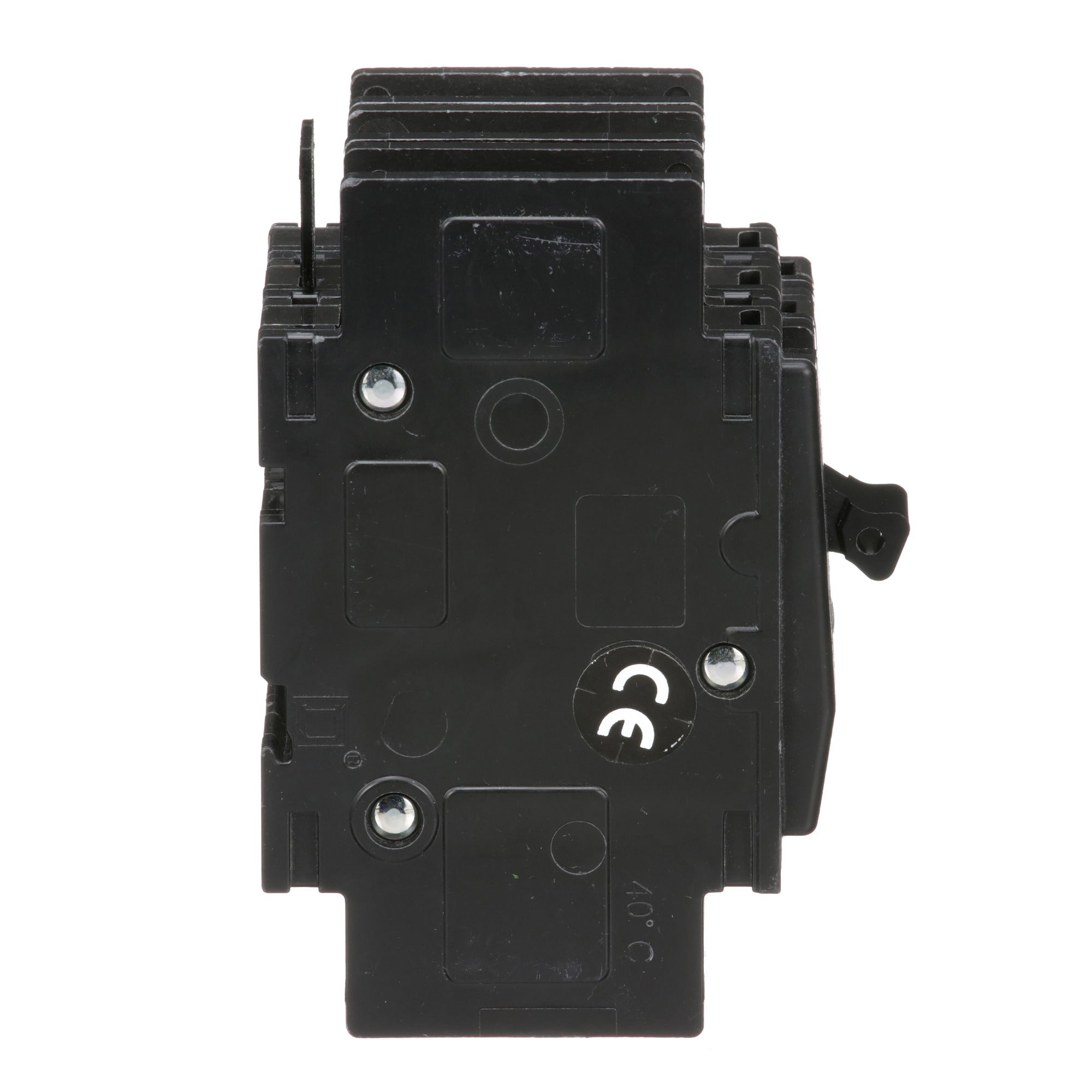

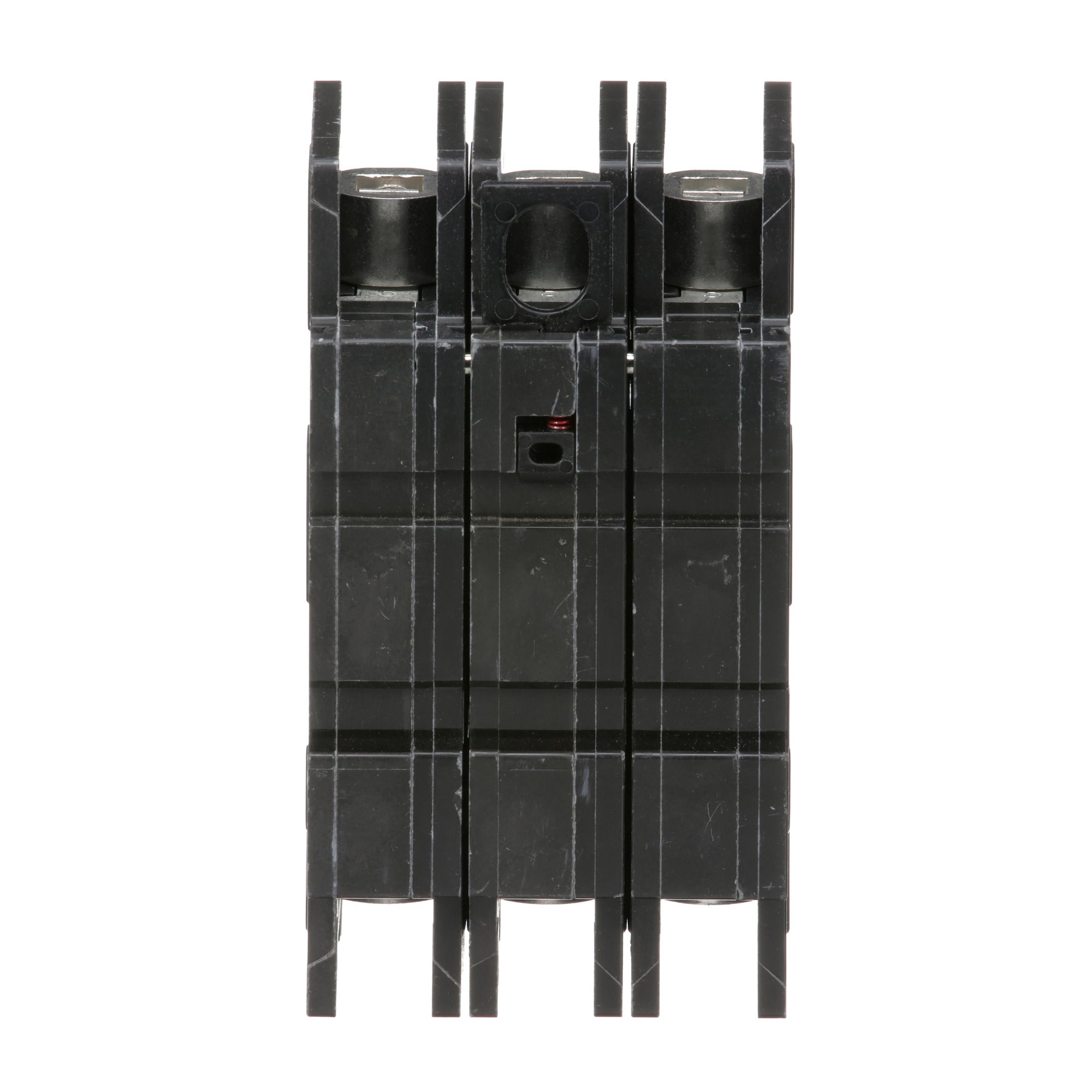

Square D QOU325B Miniature Circuit Breaker 240V 25A Bulk

Product Description

Designed by Schneider Electric, the Square D model QOU325B miniature circuit breaker offers robust overcurrent protection for both AC and DC systems, ideal for OEM applications. This three-pole thermal magnetic circuit breaker is tailored to facilitate quick-make, quick-break actions and features a trip-free toggle mechanism with positive handle indication. A noteworthy attribute is its VisiTrip trip indication, aiding in easy identification of tripped circuits.

• Visually identifiable trip indication with the VisiTriп system.
• Compatible with DIN rail, surface, or flush mounting.
• Can handle wires from 14 AWG to 2 AWG, suitable for copper or aluminum wiring.

Product Information

Standard Information

• Brand: Square D by Schneider Electric
• MPN: QOU325B

Technical Specifications

• Width: 2.25 inches
• Height: 4.05 inches
• Voltage Rating: 240V AC; 120/240V AC; 120V AC; 48V DC
• Breaking Capacity: 10 kA
• Connection Type: Slotted box lugs, line side; slotted box lugs, load side
