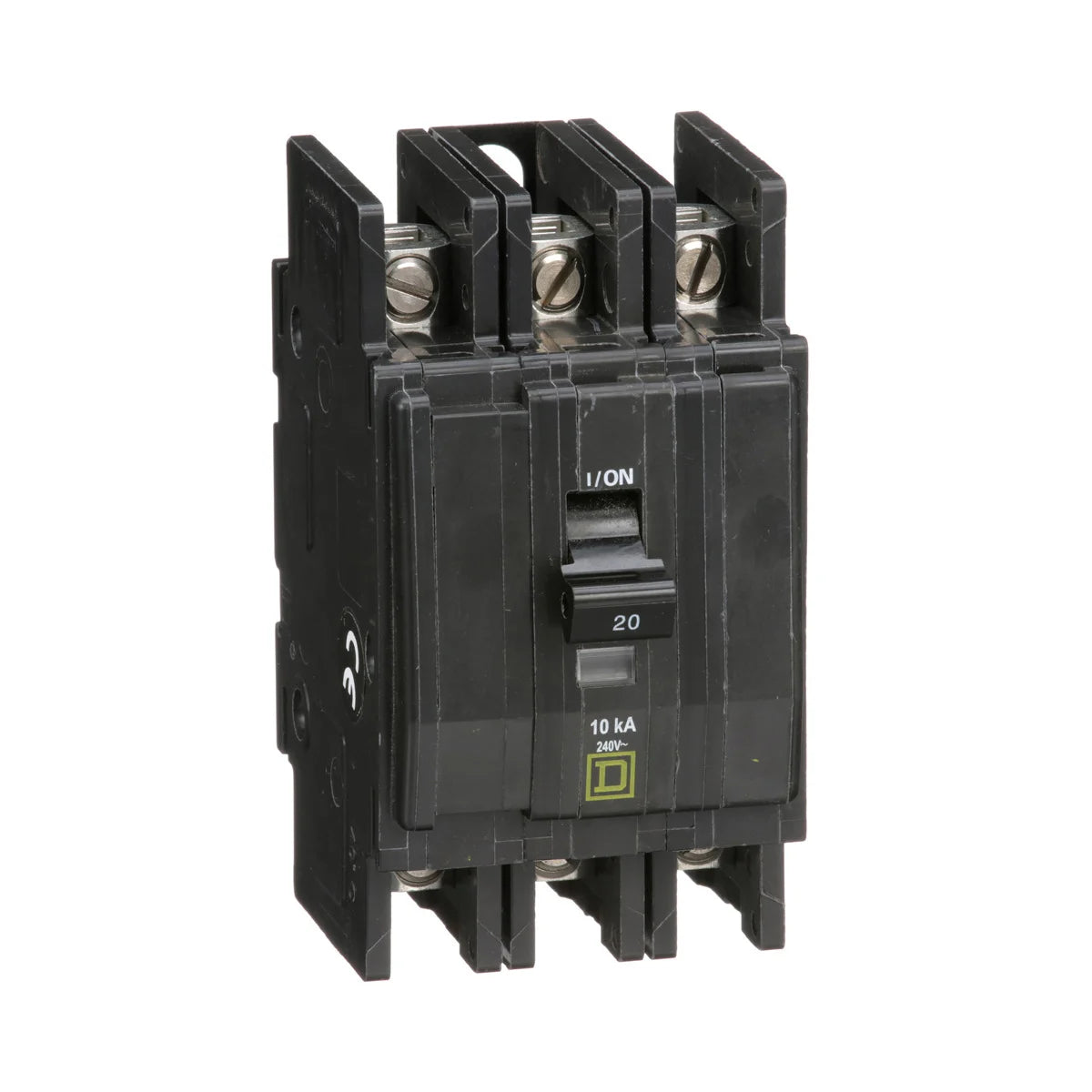

Square D QOU320B Mini Circuit Breaker 20A 3 Pole 240 VAC 10kA Bulk Pack

Product Description

The Square D QOU320B Mini Circuit Breaker is designed for efficient overcurrent protection in various applications. This three-pole breaker operates at twenty amps and is suitable for 240 volts AC. It features a quick-make, quick-break mechanism and positive handle indication for reliable operation. The VisiTrip feature provides clear visibility to indicate when the breaker has tripped.

• Meets HACR rating for use with heating, air conditioning, and refrigeration equipment
• DIN rail mountable for convenient installation
• Suitable for use with AWG fourteen to AWG two copper or aluminum wire

Product Highlights

This breaker is ideal for OEM applications, providing robust circuit protection with a ten kA breaking capacity. Bulk packaging supports commercial use.

Product Information

Standard Information

• Catalog Number: QOU320B
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Voltage Rating: 120/240 V AC; 240 V AC; 120 V AC; 48 V DC
• Height: 4.05 inches
• Width: 2.25 inches
• Depth: 2.95 inches
• Connection: Slotted box lugs, line side; slotted box lugs, load side
• RoHS URL: RoHS Compliance
• Warranty Description: Contractual Warranty: 18 months
