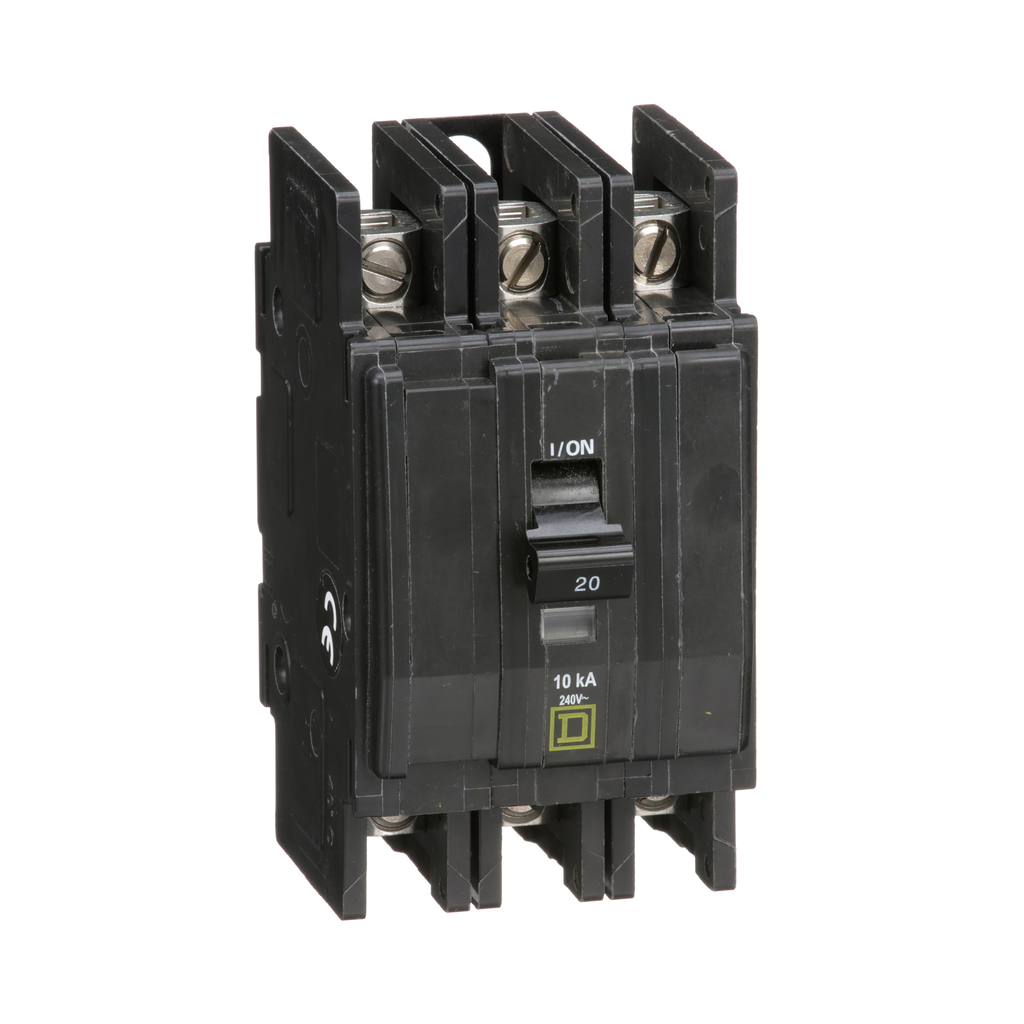

Square D QOU320 Miniature Circuit Breaker 20A 240V

Product Description

The Square D QOU320 Miniature Circuit Breaker, MPN QOU320, is designed for OEM applications. It offers reliable overcurrent protection for both AC and DC electrical systems, enabling manual circuit operation. With a variety of mounting options, it fits in many installations.

• Operates in any position
• Suitable for flush-, surface-, or DIN rail mounting
• Equipped with lugs for cable-in/cable-out construction

Product Highlights

The QOU320 provides a dependable method to manage electrical circuits, ensuring safety and functionality. Ideal for residential and commercial use, it can handle significant electrical loads.

Product Information

Standard Information

• Catalog Number: QOU320
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature Circuit Breaker
• Voltage: 120/240 Volt
• Amperage: 20 Amp
• Number of Poles: 3 Pole
• Interrupt Rating: 10 kAIC
• Height: 4.05 inches
• Width: 2.25 inches
• Depth: 2.95 inches
• Country of Origin: United States
• Certifications: UL Listed, CSA Certified
• Warranty Length: 18 months
