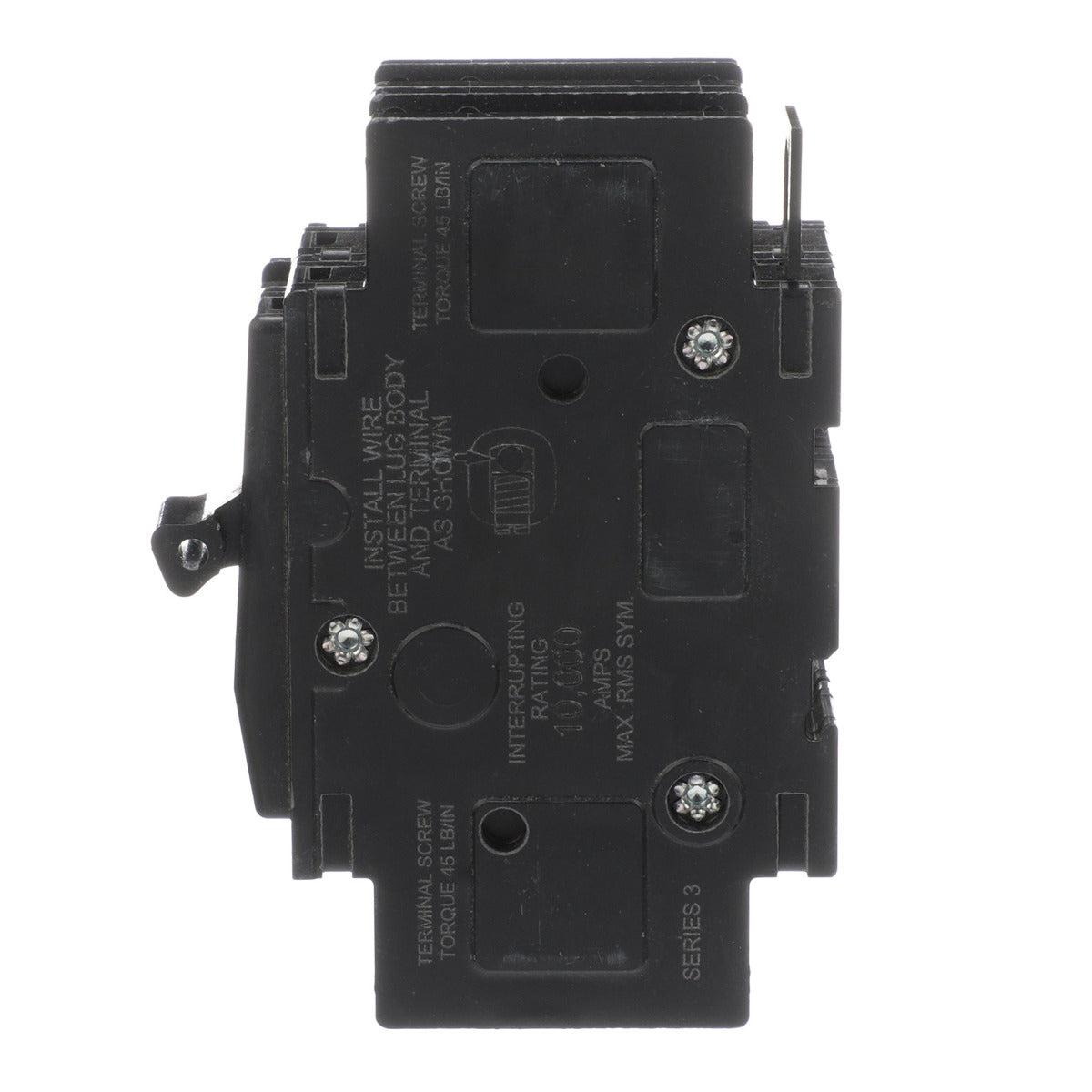

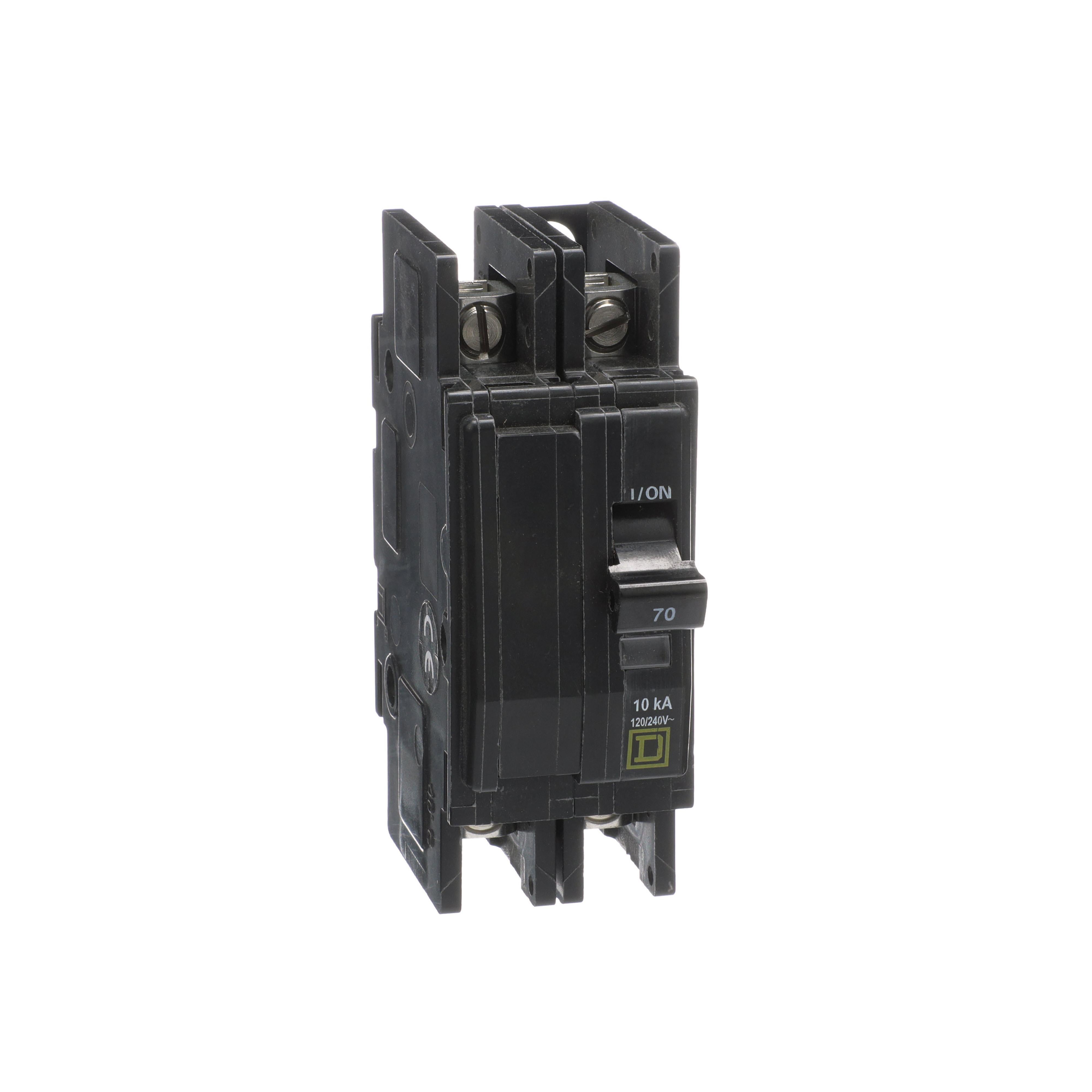

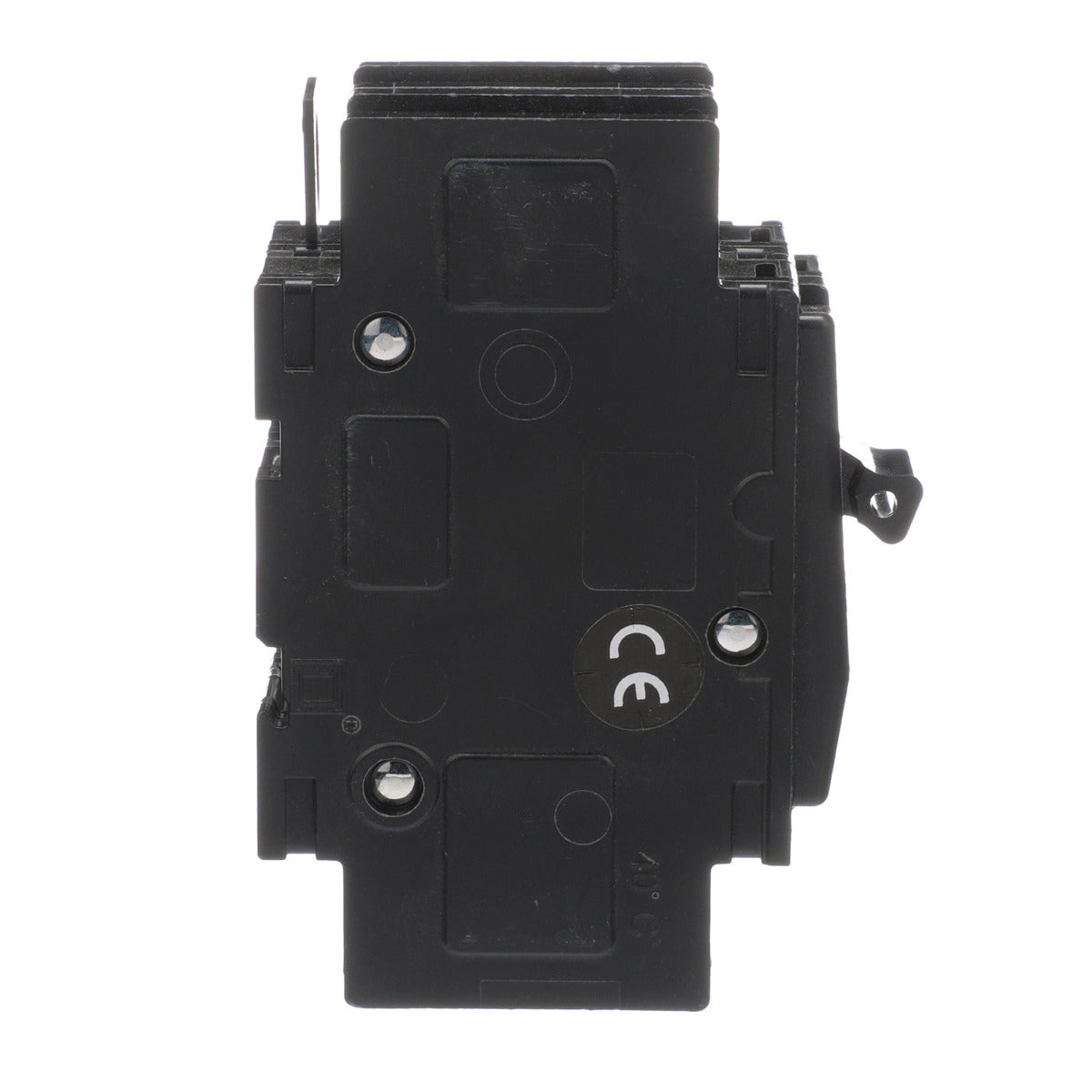

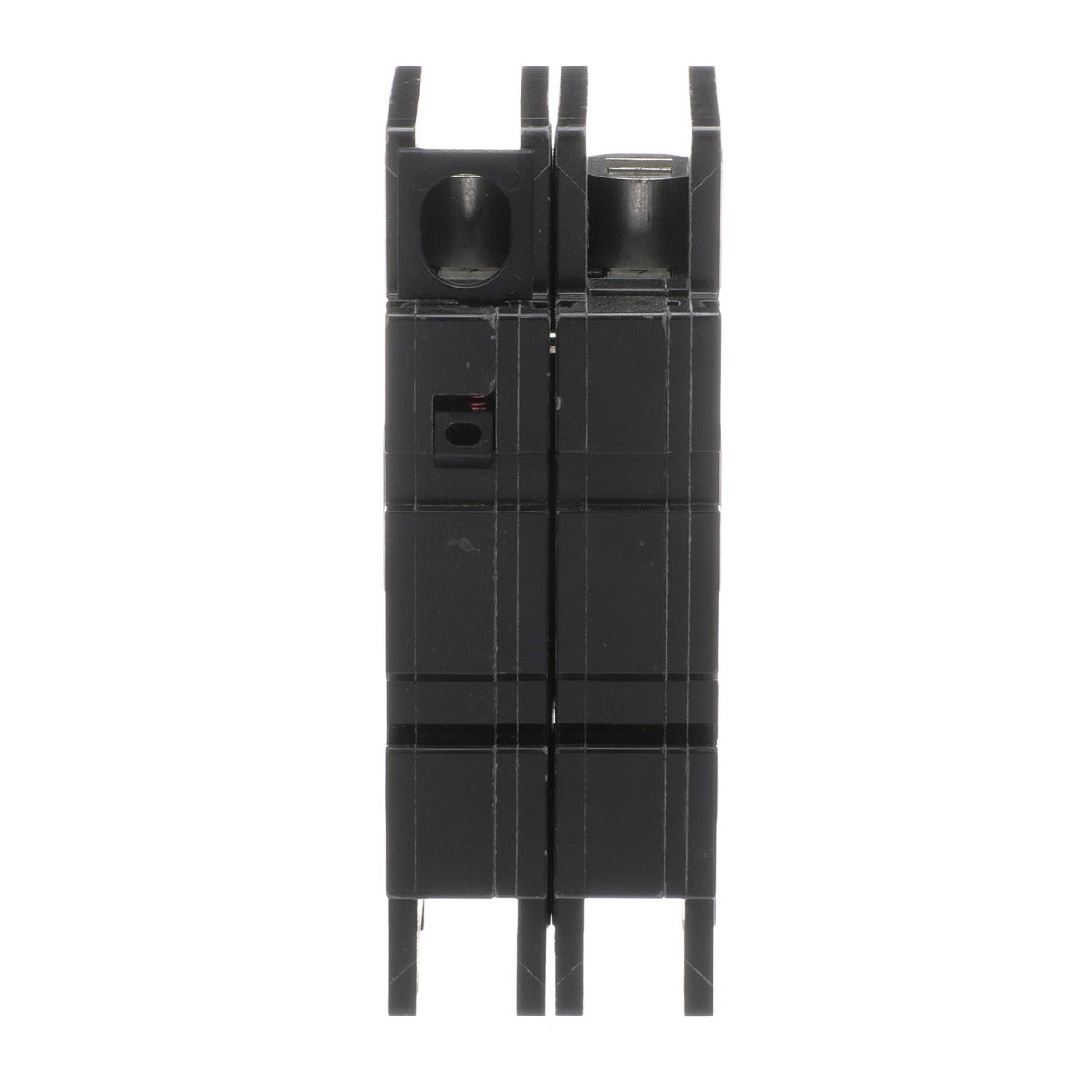

Square D QOU270 miniature circuit breaker 70 amp

Product Description

The Square D QOU270 is a miniature circuit breaker ideal for OEM applications. These QOU miniature circuit breakers are used for overcurrent protection and switching on AC and DC electrical systems. These breakers provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions.

• Features common tripping of all poles
• Can be flush-, surface-, or DIN rail-mounted
• Visi-Trip on all the circuit breakers for easy trip detection

Product Highlights

The Square D QOU270 miniature circuit breaker is UL Listed and CSA certified for reverse connection without restrictive line/load markings and operate in any position.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOU270
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 2.95 Inch
• Width: 1.5 in
• Height: 4.45 Inch
• Length: 2.95 Inch
• Voltage: 120 Volt
• Amperage: 70 Amp
• Sub Brand: QOU
• Product UPC: 78590141883
• 12-Digit UPC: 785901418832
• Applications: HACR and Switching Duty rated
• Mounting Type: Unit Mount
• TC Connection: LINE: BOX LUG - LOAD: BOX LUG #12-2/0 AWG(AL/CU)
• Certifications: CSA,UL Listed
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 70 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Catalog Number: QOU270
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: HACR rated
• Connection: Slotted box lugs, line side;slotted box lugs, load side;AWG 12...AWG 2/0 aluminium/copper
• UPC: 785901418832
• GTIN: 00785901418832
• Width UOM: Inch
• Height UOM: Inch
• Voltage Rating: 120/240 V AC;120 V AC;48 V DC
• Terminal Type: Box Lug Line Terminal, Box Lug Load Terminal
• Wire Size: (1) 14 to 2 AWG (Aluminum/Copper)
• Mounting: 35 MM DIN Rail, Flush/Surface
• Used On: OEM Panel and Enclosure
• Size: 1.5 Inch W x 2.98 Inch D x 5 Inch H
• Approval: UL, CSA
• Includes: Visi-Trip Indicator
• Part Number #: QOU270
• SKU #: 1903382
• Dimensions: 2.95 in L x 1.5 in W x 4.05 in H
