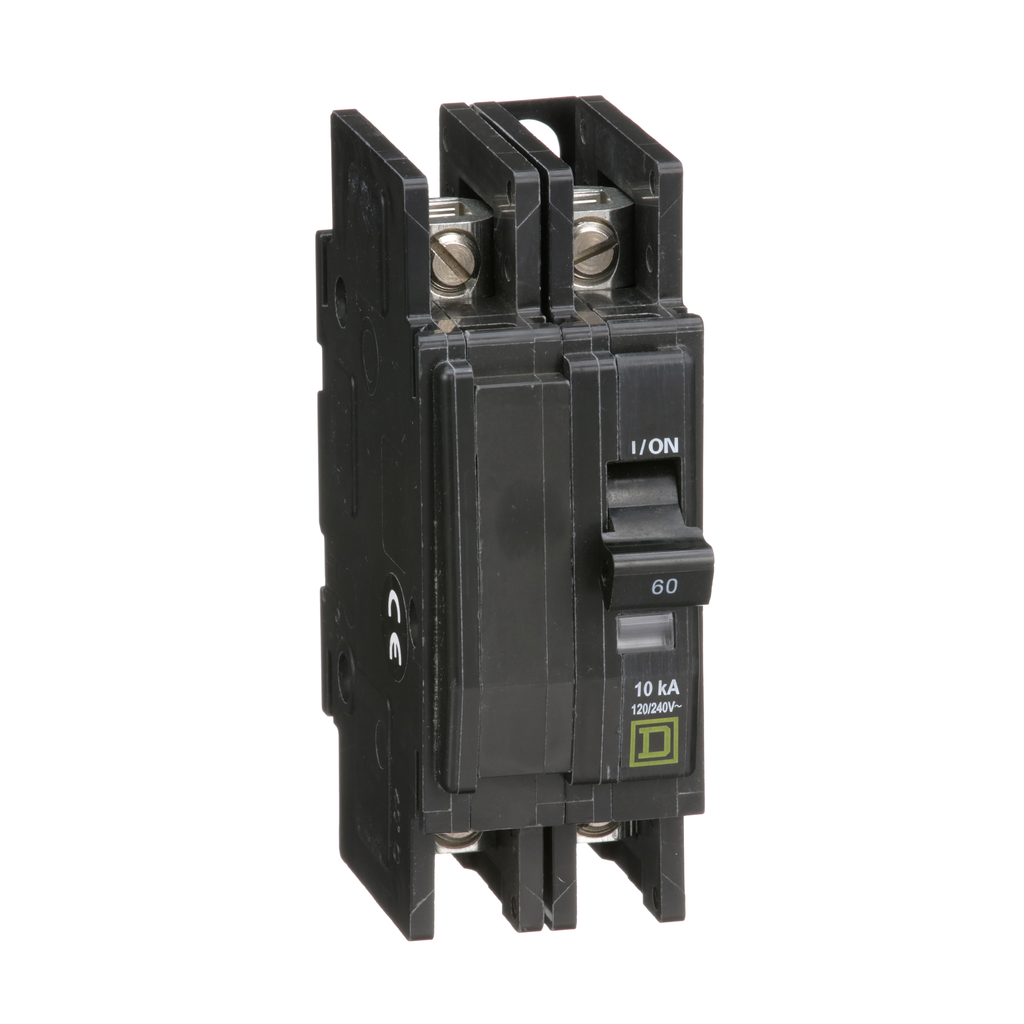

Square D QOU260 Miniature Circuit Breaker 60A 120/240V 2P

Product Description

The Square D QOU260 Miniature Circuit Breaker is designed for superior performance in electrical protection. This 60 amp circuit breaker is applicable for both 120 and 240 volt systems and features a two-pole configuration. Ideal for overcurrent protection, it operates effectively in both AC and DC applications. Its compact form allows for versatile mounting options including din rail, surface, or flush installation.

• Operates at 60 amperes.
• Designed for 120/240 volts, suitable for various applications.
• Includes thermal-mag mechanism for reliable trip function.

Product Highlights

QOU260 circuit breakers provide essential protection against overloads and short circuits. They feature common tripping functionality across all poles, enabling a quick response to electrical issues.

Product Information

Standard Information

• Catalog Number: QOU260
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Voltage: 120 Volt / 240 Volt
• Amperage: 60 Amp
• Interrupt Rating: 10 kAIC
• Number of Poles: 2 Pole
• Mounting Type: Unit mount
• Warranty Length: 18 months
• Country of Origin: Mexico
